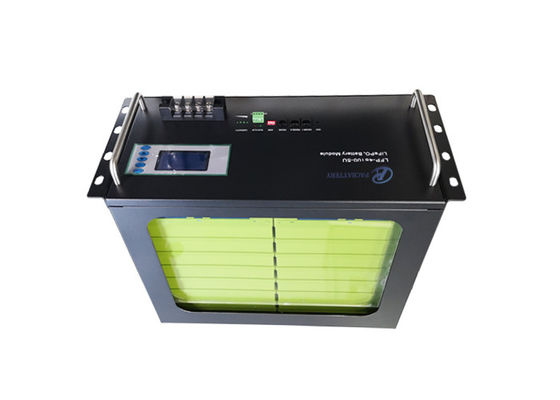

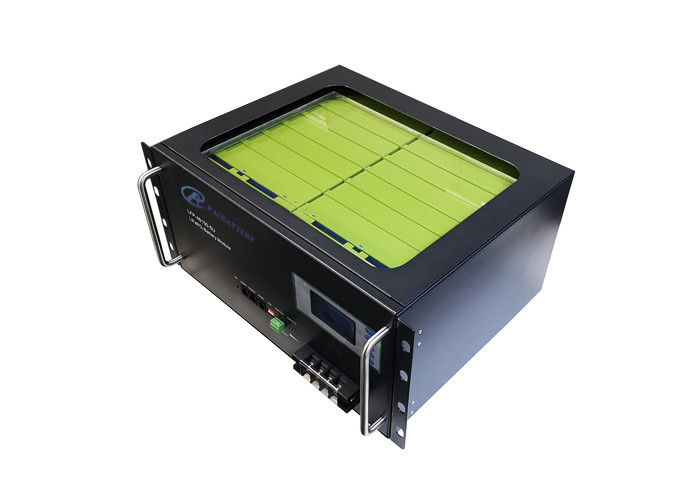

IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS

IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS

IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS
IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS
IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: IEC62619, MSDS, UN38.3 etc
Model Number: 48v 100Ah 150Ah 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 5-7 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: Good Consistency, Stable Performance Typical Voltage: 48V/51.2V
Battery Type: EV-grade LiFePO4 Battery Typical Capacity: 100Ah 150Ah 200Ah
Battery Application: On Grid/off Grid/hybrid Energy Storage System Logo: Accept Customized Logo On Battery
Design: With LCD And LED Indicators Warranty: 5-10 Years
High Light:

200Ah Home Energy Storage Battery


IP21 Home Energy Storage Battery


MSDS Rack Mounted Lithium Battery

Home energy storage battery 48v 100Ah 200Ah rack mounted
1. Description of 48V energy storage battery rack mounted

  • Providing uninterrupted power to users. Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood
  • Saving electricity for users by peak-shift. Under the price of peak valley, if the power consumption is big in the rash hour, this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.

2. Specification of 48v home energy storage battery

Battery Specifications
Model No 48V 100Ah 48v 150Ah 48v 200Ah
Nominal Parameters
Voltage 48V 48V 48V
Capacity 100Ah 150Ah 200Ah
Energy 4.8KwH 7.2 KwH 9.6 KwH
Dimensions (L x W x H) 442 x430 x222mm 442 x480 x222mm 442x680x222mm
Weight 46kg 72kg 90kg
Basic Parameters
Life time(25°C) 10 years
Life cycles(80% DOD, 25°C) 6000Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard IEC62619,UN38.3,ROHS,CE-EMC
Enclosure protection rating IP21
Electrical Parameters
Operation voltage 42-53.5 Vdc 42-53.5 Vdc 42-53.5 Vdc
Max. charging voltage 53.5 Vdc 53.5 Vdc 53.5 Vdc
Max. charging and discharging current 100A 100A 100A
Max Power 4800w 4800W 4800W


3. Application of Good consistency lithium battery


  • Family, hospital, office space...
  • Solar/wind energy storage system
  • UPS, backup power
  • Telecommunication
  • Lighting...

4. Key features of rack mounted 48v lithium battery

  • LiFePO4 composition – provides exceptional safety and longevity
  • Using EV cells-Stable performance, longer cycle life and best consistency
  • High safety and reliability
  • 6,000cycles/10 years service life
  • Consistent performance over wide temperature range
  • Rack-mounted, convenient installation
  • Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates
  • 5-10 years warranty

5. System running diagram of 48v Lifepo4 battery

IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS 0

6. Energy storage battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

IP21 48v 100Ah 200Ah Home Energy Storage Battery MSDS 1

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
