| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | UN38.3, MSDS etc |
| Model Number: | LiFePO4 48v 100Ah |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | 5U Size, With LCD | Size: | 482*420*222mm |
|---|---|---|---|
| Application: | Energy Storage System, Solar System, Telecom | Nominal Voltage: | 48v |
| Nominal Capacity: | 100Ah | Typical Energy: | 4800Wh |
| Warranty: | 5 Years | Cycle Life: | More Than 6000 Times |
| High Light: | 4800Wh Deep Cycle LiFePO4 Battery,100Ah Deep Cycle LiFePO4 Battery,IP52 Lithium Ion Battery |
||

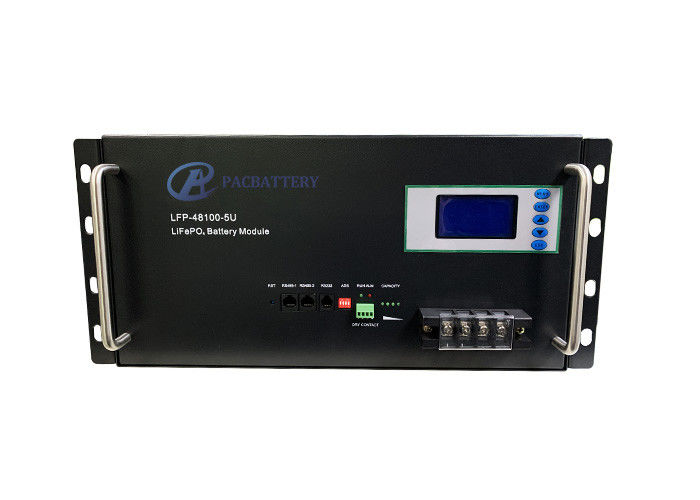

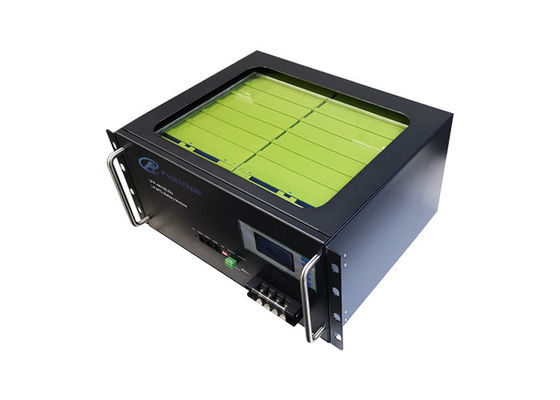

48v 100Ah lithium ion battery 5U size
1. Warning for 5U size 48V 100Ah lithium ion battery
* The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time;
* Do not put the battery in a charger or equipment with wrong terminals connected;
* Never connect the positive and negative of battery with metal;
* Avoid excessive physical shock or vibration; don't hit, fall, stamp on the battery;
* Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery
* Do not mix the battery with different types or different models or from other manufacturers;
* Please far away from children or pets;
* Do not put disuse battery into a fire or water
2. BMS specification of deep cycle LiFePO4 battery 48v 100Ah
The BMS is designed for 15/16 series lithium battery.
The BMS have all functions which are:
3. Specification of 48V 100Ah lithium battery(@Battery initial Temp25±5℃)
| Electrical Characteristics | Nominal Voltage | 48V |
| Nominal Capacity | 100Ah@0.2C | |
| Energy | 4800Wh | |
| Internal Resistance | ≤100mΩ | |
| Cycle Life | >6000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 80% Capacity. | |
| Months Self Discharge | ≤2% per month at 25℃ | |
| Standard Charge | Charge Voltage | 54.75±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 54.75V at a constant current of 0.2C, and then, changed continuously with constant voltage of 54.75V until the current was not more than 0.02C. | |
| Charger Current | 20A | |
| Max.Charge Current | 50A | |
| Standard Discharge | Discharge Current | 20A |
| Max. Continuous Current | 100A | |
| Max.Pulse Current | 200A(<3S) | |
| Disxcharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP52 | |
| Mechanical | Cell & Method | softpack cell, 15S1P |
| Case material | metal | |
| Dimension(L*W*H*TH) | 482*420*222mm | |
| Weight | Approx. 56kgs | |
| Terminal | M8 |
4. Description of 48v 100Ah lithium ion battery
The 48v deep cycle lithium ion battery from PAC Technology is new environmentally friendly backup power system focus on energy storage and power backup fields. The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications
5. 48V 100Ah 5U size battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
