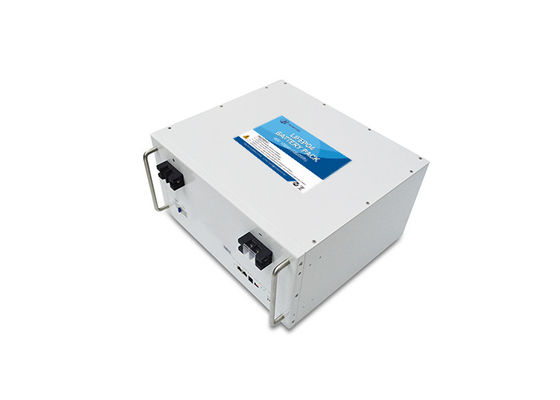

LiFePO4 Rechargeable Battery 100Ah

LiFePO4 Rechargeable Battery 100Ah

LiFePO4 Rechargeable Battery 100Ah
LiFePO4 Rechargeable Battery 100Ah
LiFePO4 Rechargeable Battery 100Ah
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: CE, FCC, UN38.3, MSDS etc
Model Number: PAC Battery 48V 100Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Case Color: White Color Working Temperature: -20~60℃
Charge Temperature: 0~60℃ Dimension: 442*385*220mm
Weight: About 55kgs Battery Protection: RS485, RS232
Application: 5G Base Station Max Current: 100A
High Light:

lithium iron phosphate battery pack


deep cycle battery pack

Standard rechargeable LiFePO4 Battery 48V 100Ah lithium ion with RS485 RS232 interface
1. Instruction of 48V 100Ah PAC Battery

The LiFePO4 rechargeable battery pack 48v 100Ah is made with standard 5U size and can be installed in 19'' cabinet. As standby power, the battery pack provides long serve time for emergency backup for different applications, such telecom communication, UPS, 5G/4G base station, base server center etc. This lithium battery is using prismatic lifepo4 battery cell with capacity 50Ah @3.2Vdc and 15S2P assembled. Through RS485 and RS232 interfaces, customer can monitor the battery modules and battery system in real time and react in time while alarm.

2. Case structure of 48V 100Ah standard battery pack

No. Description Silk-screen Remark
1 Anderson connector P+ P- Output terminal
2 Anderson connector P+ P- Output terminal
3 Air switch   125A
4 GPS antenna
5 LED ALM Alarm indicator
6 LED RUN Operation indicator
7 Dial switch ADS Set the address
8 RS485 port RS485 RS485 communication port
9 RS485 port RS485 For reset the battery
10 Reset button RST
11 Handle
12 Bracket

3. 15S2P 48V 100Ah lithium ion battery Specification(@Battery initial Temp25±5℃)

NO Items Description
Normal Specification
1 Nominal Voltage 48V (LFP-15S)
2 Normal Capacity 100Ah
3 Internal Resistance ≤45mΩ @1kHz AC
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 54.75±0.2V
6 Recommended float charge voltage(for Standby use) 51.75±0.2V
7 Allowed MAX charge current 100A@Battery initial Temp 25±5℃
8 Recommended charge current ≤50A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 37.5~54.75V
11 Allowed discharge current 120A
12 Pulse discharge current 300A withstand 3s
13 Discharge cut-off voltage 37.5V
Mechanical Characteristics
14 Weight About: 55±0.5Kg
15 Storage Temperature & Humidity Range Short: within one month -20~+ 60℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
16 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;


4. Sleep Mode of standard 48V battery pack

The system would go into low-consumption mode in any of the following conditions:

  • Single module or the whole system over discharge protection not recovered in 30s
  • Press the keys for 3s
  • The minimum single voltage lower than sleep voltage, and the lasting time reach sleep delay time( no communication, no protection, no balance, no current at same time).
  • Standby more than 24h( no communication, no charge or discharge, no AC input).
  • Force shutdown through upper-computer software.

Before sleep mode, please make sure there is no input voltage, otherwise it can no go to sleep mode.

5. Wake Up Mode of 48V 100Ah lithium battery

When the system is in low-consumption mode, the system would exit low-consumption mode and go into normal running mode in any of the following conditions:

  1. connect to charger, and the charger output is more than 48V.
  2. Press the keys for 3s
  3. Connect to communication cable, open upper computer software( if it goes to sleep mode due to over discharge protection, this method would not wake up the circuit board).

Notice: single model or the whole system goes to low-consumption mode after over discharge protection, it would be wake-up every 4hs, to open discharge MOS. If it can be charged, it would exit sleep mode and start normal charge; if it fails to be charged after 10times of wake-up automatically, there would be no automatic wake-up.

6. 48V 100Ah LiFePO4 battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

LiFePO4 Rechargeable Battery 100Ah 0

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
