|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||IEC62133, UL, CE, MSDS|
|Model Number:||12V light weight battery 9Ah|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||10-15 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Features:||Light Weight, Long Life||OEM/ODM:||Acceptable|
|Logo:||Can Be Customized||Typical Energy:||115.2Wh|
|Weight:||1.36kgs||Application:||Solar Energy Storage, ATM Device|
|Battery Protection:||Built-in BMS||Dimension:||151*65*94mm|
long life solar battery,
solar lithium battery pack
12v light weight solar battery packs 9Ah lifepo4 long life for ATM device

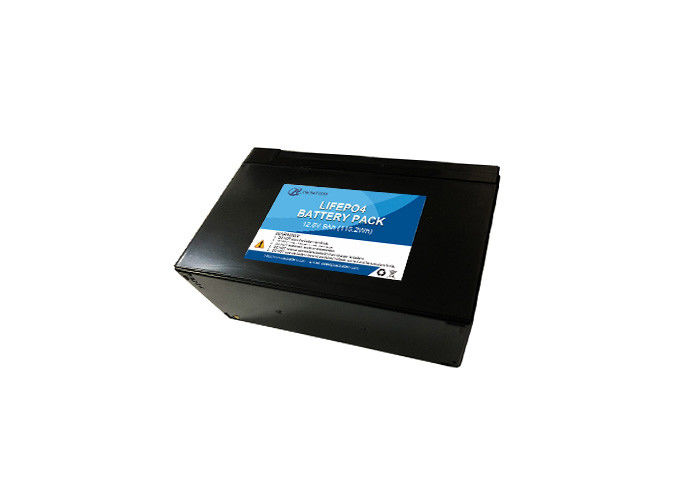

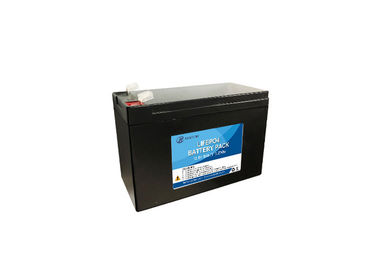

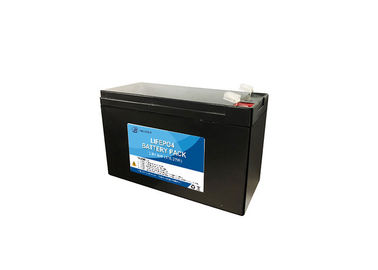

1. Instruction of LiFePO4 solar battery 12.8V 9Ah
The LiFePO4 Solar Battery 12.8V 9Ah is using cylindrical lifepo4 battery cell 26650-3000mAh and reliable battery protection circuit board, 4S3P assembled, to provide 115.2Wh power for ATM device. There is ABS plastic case outside the battery pack for protection. Compared to lead acid battery, this LiFePO4 battery is very light weight and has good performance of long time storage.
2. Working Environment of 12V light weight solar battery
* This lifepo4 battery pack should be used in a dry, clean and ventilated environment;
* Avoid using the battery under the environment of exposure, heat, rain, damp, dust, and fog;
* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;
* Applicable to external environment temperature -5℃~45℃;
* Air relative humidity is not more than 85% (25℃± 5℃);
3. Specification of light weight 12v solar battery(@Battery initial Temp25±5℃)
|Electrical Characteristics||Typical Voltage of battery pack||12.8Vdc|
|Typical Capacity of battery pack||9Ah@0.2C|
|Battery cell type||cylindrical lifepo4 cell 26650|
|Cycle Life||more than 2000 times at 0.2C Charge and Discharge|
|Standard Charge||Charge Voltage of battery pack||14.6±0.2V|
|Charge Mode(CC/CV)||At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.|
|Battery pack Charge Current||1.8A|
|Battery pack Max.Charge Current||4.5A|
|Standard Discharge||Battery pack Discharge Current||1.8A|
|Battery pack Max. Continuous Current||9A|
|Max.Pulse Current of battery pack||20A(<3S)|
|Discharge Cut-off Voltage||10.0V|
|Environmental||Charge Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Discharge Temperature||-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity|
|Storage Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Water Dust Resistance||IP56|
|Mechanical||Cell & Method||IFR26650 N30, 4S3P|
|Plastic Case||ABS material|
4. Application of solar battery pack 12v 9Ah
5. 26650 LiFePO4 Battery cell testing and capacity grading
6. 12.8v 9Ah LiFePO4 Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
