Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | OEM/PAC |
Certification: | ROHS, UN38.3, MSDS etc |
Model Number: | UPS battery 48v 35Ah |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Typical Voltage: | 48V | Housing Material: | Metal Case For Li Ion Battery |
---|---|---|---|
Typical Capacity: | 35Ah | Battery Application: | UPS Backup Power |
Battery Protection: | Built-in BMS | Standard Charge Current: | 0.2C |
Logo: | Can Be Customized On Battery Case | Dimension: | Customized |
High Light: | ess lithium ion battery,rechargeable battery backup |

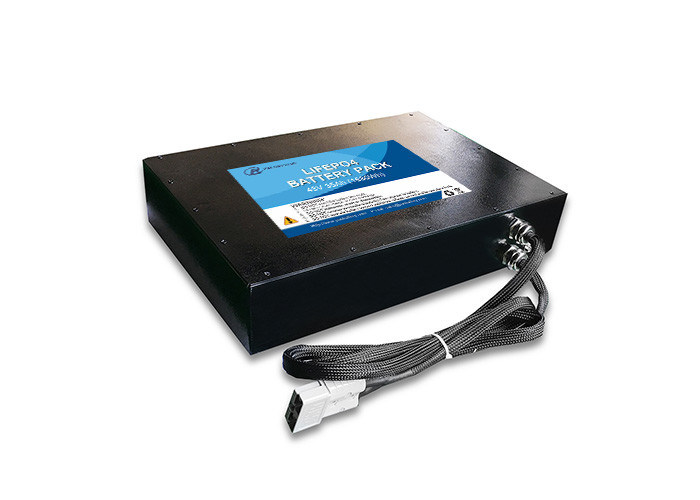

48v rechargeable lithium ion battery for UPS back up 35Ah customized size
1. 48V 35Ah UPS rechargeable battery Instruction
The 48v rechargeable lithium ion battery is using prismatic LiFePO4 battery cell with built-in BMS. It is flexible in size and light weight. We can customize the battery pack size, discharge current, different terminals as per your requirements. The battery pack can be used for UPS and work with inverters of different brands.
2. Application of 48v 35Ah LiFePO4 battery
Customized rechargeable lithium battery can be use for:
3. 15S1P 48V 35Ah rechargeable lithium Battery Pack Specification(@Battery initial Temp25±5℃)
No. | Item | General Parameter | Remark |
1.1 | Description | 48v rechargeable lithium ion battery for UPS back up 35Ah customized size | |
1.2 | Cell Type | prismatic LiFePO4 cell | |
1.3 | Typical Capacity | 35Ah | |
1.4 | Typical Voltage | 48V | |
1.5 | End of Charge Voltage | 54V | |
1.6 | Charge Current | 0.2C | |
1.7 | Charging time | 5-6 Hours | |
1.8 | Over-Charge Voltage Protection cell | 3.6V | |
1.9 | Max continuous charge current | 35A | |
2.0 | Maximum Continuous Discharging Current | 35A | |
2.1 | Over-discharge Voltage Protection cell | 2.5V | |
2.2 | Over-Current Discharge Protection | 100A | |
2.3 | Protection functions | overcharge, overdischarge, over current, short circuit, over temperature | |
2.4 | Dimension | customized | |
2.5 | Weight | about 17.5kgs | |
2.6 | Operation Temperature Range | Charge 0~60 C, Discharge -20~60 C | |
2.7 | Storage Temperature & Humidity Range | Less than 1 month:-20℃~45℃,45%RH~75%RH | |
Less than 3 months:-10℃~35℃,45%RH~75%RH | |||
Recommended storage environment: 15℃~35℃,45%RH~75%RH |
|||
2.8 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
4. Advantage of PAC Technology company:
We offer quick response to your inquiry and reliable battery quality based on your requirements.
We provide not only professional solutions for your product, but also full technical support after sales.
So if you have any inquiries, please feel free to contact us.
5. Features of customized 48V 35Ah battery pack
6. 48V 35Ah UPS LiFePO4 battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
