| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/ODM |
| Certification: | CE, ROHS, IEC62133, UN38.3, MSDS |
| Model Number: | 18650-3s 11.1v 2600mAh |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton |
| Delivery Time: | 15-20 days for samples, 25-35 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs/day |
| Type: | Cylindrical Lithium Ion Battery | Cell Model: | 18650 Battery Cell 3.7v 2600mAh |
|---|---|---|---|
| Nominal Voltage: | 11.1V | Nominal Capacity: | 2600mAh |
| Application: | Medical Products | Cycle: | 500 Times |
| Size: | 73*55.5*19mm | Connector: | Molex/JST Or Customized, Accept All Major Types Of Connectors |
| Max. Current: | 3A | Weight: | About 140g |
| High Light: | soft battery pack,cylindrical lithium ion battery pack |
||

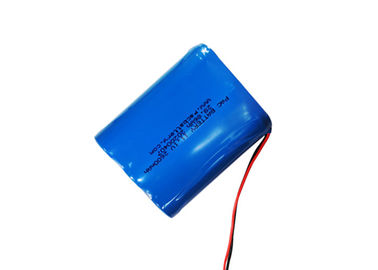

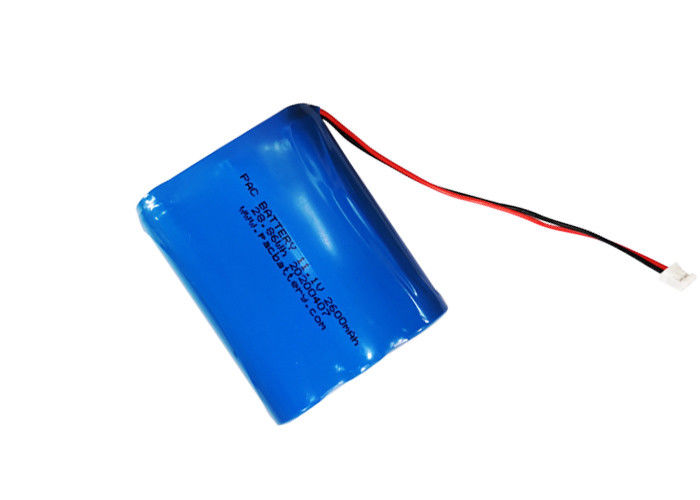

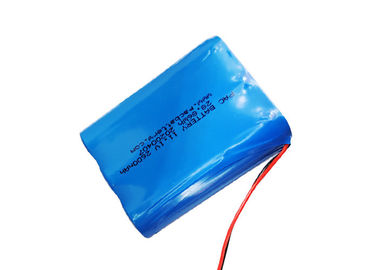

PAC Battery cylindrical lithium ion pack 11.1v 2600mAh for medical products
1. Quick details of 11.1v 2600mAh cylindrical lithium ion battery:
2. WARNING of lithium ion battery pack
1. DO NOT short the battery terminals.
2. DO NOT over charge or over discharge.
3. DO NOT incinerate, crush or disassemble.
4. DO NOT reverse connections(polarity) from charger to battery.
5. DO NOT operate battery beyond published voltage, current and temperature limits.
3. Specification of 11.1V 2600mAh medical lithium ion battery:
| NO. | Item | Specifications | |
| 2.1 | Typical Capacity | 2600mAh @ 0.2C Discharge (0.2C) | |
| 2.2 | Nominal voltage | 11.1V | |
| 2.3 | Charge | Max input voltage | 26V±0.05 |
| Max Charge voltage | 12.6V±0.05 | ||
| Standard charge current | 520mA | ||
| Max Charge current | 2600mA | ||
| 2.4 | Discharge | Min Discharge voltage | 8.1±0.08V (PCB End-of-charge Voltage) |
| Fast Discharge current | 2600mA | ||
| Max continuous discharge current | 3000mA | ||
| 2.5 | Initial Impedance | Max: 250mW | |
| 2.6 | Weight | Approx:140g±2 | |
| 2.7 | Operating temperature | Charging: 0℃~45℃ | |
| Discharging:-20℃~60℃ | |||
| 2.8 | Storage temperature | -5℃~35℃ | |
| 2.9 | Storage Humidity | ≤75% RH | |
| 3.1 | Appearance | Without scratch, distortion, contamination and leakage | |
| 3.11 | Standard environmental condition | Temperature: 25±2℃ | |
| Humidity: 45-75%RH | |||
| Atmospheric Pressure: 86-106 KPA | |||
We could make customized 11.1V 18650 li ion battery, 18650 lithium rechargeable battery based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..Note: If above specification can't satisfy you, please contact us for your detailed requirement.
4. Working Environment of cylindrical battery 11.1v 2600mAh
* This product should be used in a dry, clean and ventilated environment;
* Avoid using under the environment of exposure, heat, rain, damp, dust, and fog;
* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;
* Applicable to external environment temperature -5℃~45℃;
* Air relative humidity is not more than 85% (25℃± 5℃);
5. Initial dimension of 18650-3s li ion battery pack: max. 73*55.5*19mm
6. Protective circuits of 11.1v 2600mAh battery pack
7. Why Choose us?
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.
8. 11.1V 18650 li ion battery, 18650 lithium rechargeable battery Application:
1.Light: headlamp, emergency light, solar flashlight, searchlight, lantern, bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright flashlight.
2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
3.Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
speaker, microphone, sound equipment, audio, Digital camera.
4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes, electric blanket.
5.Medical devices
9. 18650 lithium rechargeable battery Delivery
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
