|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||UL1642, MSDS, ROHS, UN38.3|
|Model Number:||12V lithium ion battery pack|
|Minimum Order Quantity:||200pcs|
|Packaging Details:||Standard export carton|
|Delivery Time:||15-20 days for samples, 25-35 days for mass production|
|Type:||High Capacity Lithium Ion Battery||Battery Capacity:||3.5Ah|
|Application:||Medical Device, POS Machine||Pack Size:||73*55.5*19mm|
|Cycle:||500 Times||Weight:||About 150g|
18650 12v Lithium Ion Pack,
3.5Ah 12v Lithium Ion Pack,
PAC Lithium Ion Rechargeable Battery

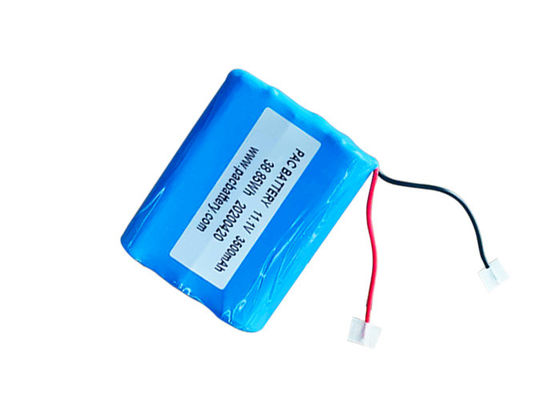

PAC Battery 18650 12v lithium ion pack 3.5Ah high capacity for medical device
1. This specification describes the basic performance, technical requirement, testing method, warning and caution of the Li- ion Cylindrical rechargeable battery .The specification only applies to PAC Technology Co.,Ltd.
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as charge, discharge, ambient temperature, etc. are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. If the batteries cannot maintain a charge for long periods of time, even when they are charged correctly, this may indicate it is time to change the battery.
2.0.2C capacity testing of 12v 18650 lithium battery pack
After standard charging, rest battery for 10min, then discharging at 0.2C to voltage 3.0V, recording the discharging time.
3. Cycle life testing of 12v 3.5Ah lithium battery pack
Constant current 0.5C charge to 4.2V, then constant voltage charge to current declines to 0.01C, rest 10min,constant current 0.5C discharge to 3.0V, rest 10min. Repeat above steps till continuously discharging capacity Higher than 80% of the Initial Capacities of the Cells.
4. Battery specification of 12v medical device lithium battery:
|2.1||Typical Capacity||3500mAh @ 0.2C Discharge (0.2C)|
|2.3||Charge||Max input voltage||26V±0.05|
|Max Charge voltage||12.6V±0.05|
|Standard charge current||700mA|
|Max Charge current||3500mA|
|2.4||Discharge||Min Discharge voltage||8.1±0.08V (PCB End-of-charge Voltage)|
|Fast Discharge current||3500mA|
|Max continuous discharge current||4000mA|
|2.5||Initial Impedance||Max: 250mW|
|2.7||Operating temperature||Charging: 0℃~45℃|
|2.9||Storage Humidity||≤75% RH|
|3.1||Appearance||Without scratch, distortion, contamination and leakage|
|3.11||Standard environmental condition||Temperature: 25±2℃|
|Atmospheric Pressure: 86-106 KPA|
5. Lithium ion Battery operation instruction
5.2 Discharging current
5.3 Electric discharge temperature
5.5 Storing the Batteries
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
7. Why Choose us?
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.
