| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 3.2V 50Ah |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 7 days for samples, 15 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 2,000pcs/day |
| Type: | LiFePO4 Battery Cell | Cell Model: | PAC11190316 |
|---|---|---|---|
| Nominal Voltage: | 3.2V | Nominal Capacity: | 50Ah |
| Items: | 3.2V 50Ah LiFePO4 Battery Cell | Application: | Solar Energy Storage |
| Keywords: | Soft Pack 3.2V 50Ah, Pouch Size Prismatic Battery 50Ah | Protection: | Optional |
| Cycle: | 4000 Times | Warranty: | 5 Year |
| High Light: | lifepo4 battery pack,12v lifepo4 deep cycle battery |
||

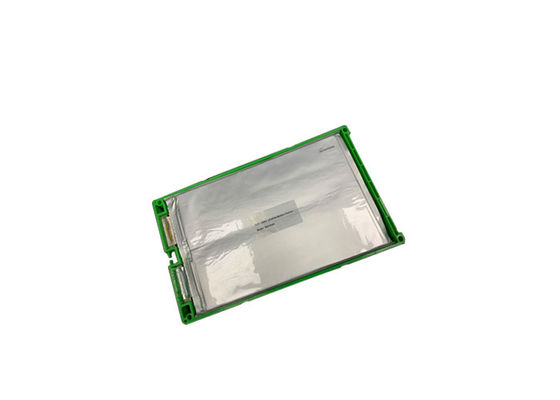

Soft Pack Pouch Size Prismatic LiFePO4 Battery Cell 3.2V 50Ah
3.2V 50Ah soft pouch size prismatic cell, light weight, compact size, widely use for EV, AGV, solar energy, UPS, E-bus, long cycle life 8000 times.
Advantage of LiFePO4 battery, comparing to Lead acid battery:
1) LiFePO4 prismatic battery cell with high capacity, light weight, high consistency, high security.
2) Small rechargeable battery cell 3.2V with long cycle life > 4000 times.
3) No memory effect, environmental friendly
5) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.
6) Lithium iron phosphate battery cell can be customized. Cells can be combined in series to increase voltage and parallel to increase capacity.
Specification of LiFePO4 Battery 3.2V 50Ah:
| No. | Item | General Parameter |
| 1.1 | Description | Soft Pack Pouch Size Prismatic LiFePO4 Battery Cell 3.2V 50Ah |
| 1.2 | Cell Model | PAC11190316 |
| 1.3 | Typical Capacity | 50Ah |
| 1.4 | Typical Voltage | 3.2V |
| 1.5 | End of Charge Voltage | 3.65V |
| 1.6 | Charge Current | 0.2C |
| 1.7 | Charging time | 5-6 Hours |
| 1.8 | Over-Charge Voltage Protection cell | 3.65V |
| 1.9 | Max continuous charge current | 1C 50A |
| 2.0 | Maximum Continuous Discharging Current | 2C 100A |
| 2.1 | Over-discharge Voltage Protection cell | 2.5V |
| 2.2 | Over-Current Discharge Protection | 120A |
| 2.3 | Short circuit protection | Can be attached with BMS |
| 2.4 | Dimension | 11*190*316(mm) |
| 2.5 | Weight | 1.3kg |
| 2.6 | Operation Temperature Range | Charge -5~55 C, Discharge -10~60 C |
Long Life Cycle 3.2V 50Ah Battery for:
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf trolley/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telecom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment
Other Applications
♦ Security and Electronics, Mobile POS, Mining Light / Torch / LED Light / Emergency Light
3.2V 50Ah Deep Cycle LiFePO4 Battery Charging mode: constant current, constant voltage
WARNING:
1. DO NOT short the battery terminals.
2. DO NOT over charge or over discharge.
3. DO NOT incinerate, crush or disassemble.
4. DO NOT reverse connections(polarity) from charger to battery.
5. DO NOT operate battery beyond published voltage, current and temperature limits.
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
PAC Battery Advantages:
We are reliable and professional rechargeable battery manufacturer. We have R&D team.
*Abundant products
Professional manufacturer of li-ion, Li-polymer, Lifepo4 rechargeable batteries. Also battery packs, portable electric powers, other accessories consumer and industrial applications.
*Best service
1.Provide OEM service, customized design is available.
2.Service on time, response your email within 24 hours.
3.Delivery on time.
4.Trial order or sample order is available.
Contact Person: Lin Fan
Tel: 0086 15920098587
