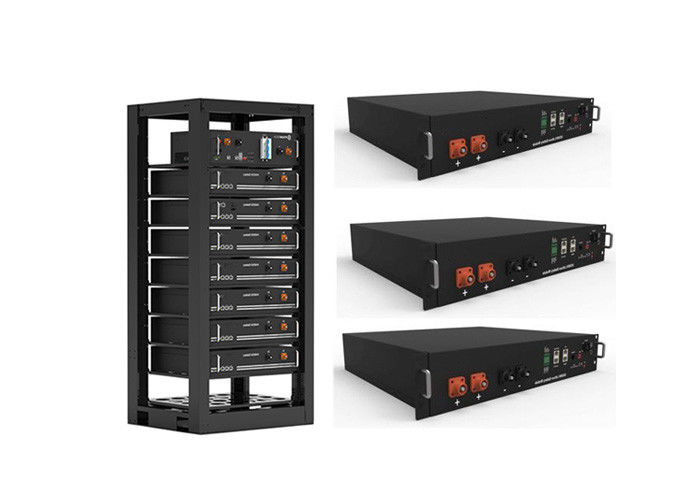

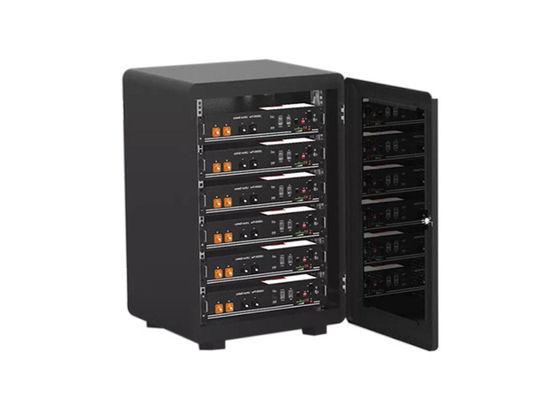

Prismatic EV cell 24kWh 0.2C 500Ah Solar Telecom Battery

Prismatic EV cell 24kWh 0.2C 500Ah Solar Telecom Battery

Prismatic EV cell 24kWh 0.2C 500Ah Solar Telecom Battery
Prismatic EV cell 24kWh 0.2C 500Ah Solar Telecom Battery
Prismatic EV cell 24kWh 0.2C 500Ah Solar Telecom Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ISO9001, ISO14001, UL1642
Model Number: 48v 500Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, 48v battery rack wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 48V Typical Capacity: 500Ah
Type: Rack Type With Cabinet Weight: About 250kgs
Battery Application: Home Solar System, Telecom Backup Standard Discharge Current: 0.2C
Communication: CANBus, RS485, RS232, Modbus Max. Discharge: 1C
High Light:

500Ah Solar Telecom Battery


0.2C Solar Telecom Battery


24kWh 48v Lithium Rack

Telecom battery for solar 48v lithium rack
1. Telecom battery solar 48v lithium rack Overview
PAC 48V series Lithium Iron Phosphate Battery is storage battery to provide reliable backup power for access network equipment, remote switch, mobile communications, transmission equipment and other systems.

Multiple storage batteries can be integrated as Battery System in parallel connections with intelligent centralized monitoring and installed in standardized cabinet. It scales up and realizes flexible and effective power solutions for telecommunication and energy storage as well.

2. Advantages of 48v rack type lithium battery telecom

  • We provide OEM service and can print your LOGO on the battery.
  • Standard working current of our battery is 1C, but we also have solution with higher current, which can meet the higher load demand of customers.
  • The battery cell is high EV-grade, which has the best consistency and long cycle life.


3. Specification of 48v Telecom batteries(@Battery initial Temp25±5)

No. Item General Parameter Remark
1.1 Description Telecom battery for solar 48v lithium rack 500Ah
1.2 Cell Type Prismatic EV grade cell
1.3 Typical Capacity 500Ah
1.4 Typical Voltage 48V
1.5 Typical power 24kWh
1.6 Communication It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.
1.7 Battery combination 15S10P
1.8 Charging voltage 54V
1.9 End voltage 42V
2.0 Standard charge current 100A
2.1 Internal Impedance ≤200mΩ
2.2 Max. continuous charge current 500A
2.3 Standard discharge current 100A
2.4 Max. continuous discharge current 500A
2.5 Cycle life >4000 times
2.6 Weight 250kgs
2.7 Dimension 600*800*1200mm
2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃
2.9 Storage Temperature & Humidity Range Less than 1 month:-20℃~45℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:



Long time storage:

If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!


4Features of 48v telecom rack battery

  • Nominal voltage 48V and 51.2V with optional capacity and enclosure
  • Built-in intelligent BMS(Battery Management System) for battery protection from overcharge, over-discharge, overcurrent and over-temperature.
  • Standard 19-inch rack-mount durable enclosure for plug & play replacement.
  • Equipped with RS485/RS232/CANBUS communication
  • Built-in function for parallel connection
  • Standard BMS with options for charging current limit in parallel connection(programmable ON/OFF)
  • Safest lithium chemistry with high energy density
  • Efficient & long-lasting service life

5. Working Environment of LiFePO4 backup batteries

* This product should be used in a dry, clean and ventilated environment;

* Avoid using under the environment of exposure, heat, rain, damp, dust, and fog;

* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;

* Applicable to external environment temperature -5℃~45℃;

* Air relative humidity is not more than 85% (25℃± 5℃);

6. Telecom Battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Prismatic EV cell 24kWh 0.2C 500Ah Solar Telecom Battery 0

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
