|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||IEC62619, MSDS, UN38.3 etc|
|Model Number:||Energy storage battery 10kwh|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Typical Energy:||10kwh||Typical Capacity:||200Ah|
|Weight:||95kgs||Battery Application:||Server Center|
|Logo:||Accept Customized Logo On Battery||Design:||With LCD And LED Indicators|
home energy storage battery,
energy storage system lithium ion battery

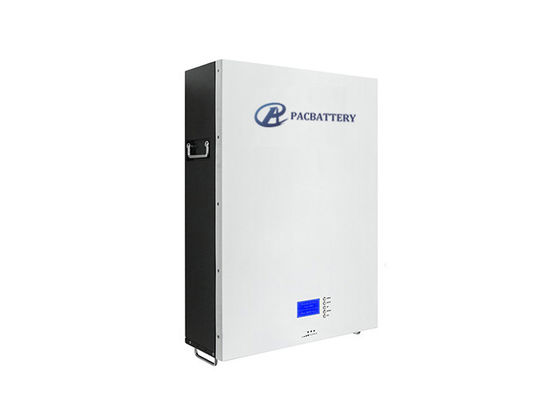

10kWh Powerwall energy storage lithium battery 48v with LCD display for server center
1. Key features of 10kWh Powerwall battery
2. Specification of 48V 200Ah 10kwh battery pack
|1||Nominal Voltage||48V (LFP-15S)|
|3||Internal Resistance||≤40mΩ @1kHz AC|
|4||Battery operation temperature range @charging||0~45℃|
|5||Normal charge voltage||54.75±0.2V|
|6||Recommended float charge voltage(for Standby use)||54±0.2V|
|7||Allowed MAX charge current||100A@Battery initial Temp 25±5℃|
|8||Recommended charge current||≤100A|
|9||Battery operation temperature range @discharging||-20~60℃|
|11||Allowed discharge current||100A|
|12||Pulse discharge current||300A withstand 3s|
|13||Discharge cut-off voltage||37.5~40V|
|16||Storage Temperature & Humidity Range||Short: within one month||-20~+ 60℃, 5~75%RH|
|Long term: above one month||-10~+45℃, 5~75%RH|
|17||Self-discharge rate||Residual capacity||≤2% per month;|
|Reversible capacity||≤1%per month;|
3. Connectors of 10kWh Powerwall battery
4. Wake up button of 48V Powerwall lithium battery pack
Switch on: When battery is shut down, press this button for 3 seconds. It is activated when the LED lights flicker from RUN light to the lowest capacity indicator.
Switch off: When battery is activated, press this button for 3 seconds. It will be shut down when the LED lights flicker from lowest capacity indicator to RUN light.
Reset: When battery is activated, press this button for 6 seconds. The battery will be reset and all of the LED lights will be on at same time.
6. Powerwall lithium Battery Delivery
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
