| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 627064 2S1P 7.4V 3500mAh |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 15-20 days for samples, 25-35 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 50,000pcs/day |
| Type: | Lithium Polymer | Cell Model: | PAC75101197 |
|---|---|---|---|
| Nominal Voltage: | 12.8V | Nominal Capacity: | 25000mAh |
| Items: | 12.8V 25000mAh Deep Cycle LiFePO4 Battery | Application: | LED Light |
| Keywords: | LiFePO4 Battery, Deep Cycle Battery, Deep Cycle LiFePO4 Battery | Protection: | Built-in PCM |
| Standard Discharge Current: | 0.2C, 5000mAh | Standard Charge Current: | 0.2C, 5000mAh |
| Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 500 Times |
| Warranty: | 1 Year | ||
| High Light: | lifepo4 battery pack,lithium iron phosphate deep cycle battery |
||

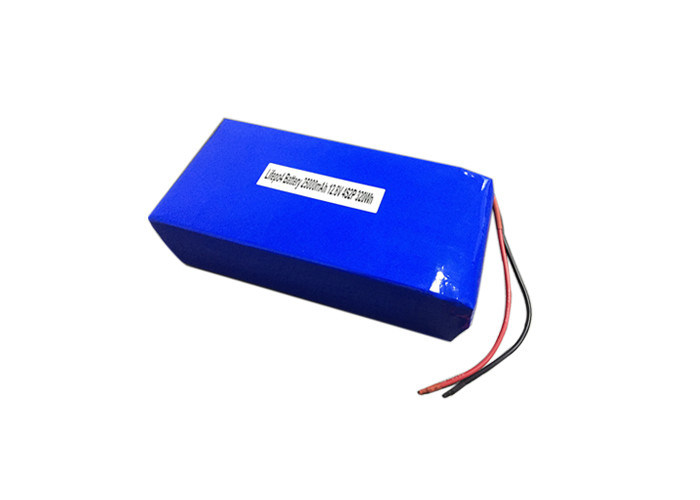

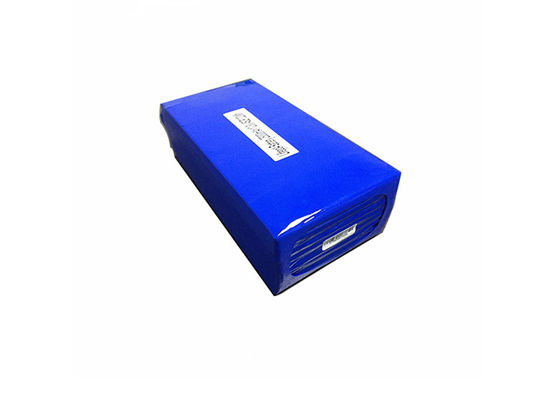

4S2P 12.8V 25000mAh 320Wh Deep Cycle LiFePO4 Battery for LED Light
4S2P 12.8V 25000mAh 320Wh Deep Cycle LiFePO4 Battery,use soft pouch battery cell, light weight, customized size.
We have more than 1000 models for your choosing. And can also produce customized cells according to your requirement.
Features of Deep Cycle LiFePO4 Battery:
1. High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 2000 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell.
6. Environmental-friendly: No Pb, Cd added.
7. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload;
8. Injection Technology to make battery more stable;
9. With short-circuit production function, safe and reliable;
10. Factory mastered technology and competitive price;
Parameter of 4S2P 12.8V 25000mAh 320Wh Deep Cycle LiFePO4 Battery
|
No.
|
Item
|
General Parameter
|
|
1.1
|
Description
|
LiFePO4 Battery 25000mAh 12.8V 4S2P 320Wh
|
|
1.2
|
Cell Model
|
75101197-15Ah
|
|
1.3
|
Typical Capacity
|
25Ah
|
|
1.4
|
Typical Voltage
|
12.8V
|
|
1.5
|
End of Charge Voltage
|
15.6V
|
|
1.6
|
Charge Current
|
0.2C
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
1.8
|
End discharge Voltage
|
8.0V
|
|
1.9
|
Max continuous charge current
|
10A
|
|
2
|
Maximum Continuous Discharging Current
|
28A
|
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
|
2.2
|
Over-Current Discharge Protection
|
50-70A
|
|
2.3
|
Short circuit protection
|
With protection
|
|
2.4
|
Dimension
|
61.0 mm (T)*102.5 mm (W) *205mm (L)
|
|
2.5
|
Weight
|
2200g
|
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
One-stop solution
Lithium battery cell manufacturing
Cylindrical Li ion battery cell manufacturing, 18650, 26650, 14500, 38120
Battery management system (BMS) design, PCM, PCB, production is done in-house
Plastic tooling, injection is done in-house
Battery packing is done in-house
