Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/OEM |
Certification: | MSDS, UN38.3 etc |
Model Number: | 578wh high capacity power battery |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 5-7 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Battery Application: | Camping, Outdoor Works, RV | Battery Energy: | 578wh |
---|---|---|---|
AC Output: | 110~240V | DC Output: | 120W |
Dimension: | 270*170*317.6mm | Input: | 25.2V 4A |
Waterproof Rate: | IP51 | Warranty: | 1 Year |
High Light: | portable emergency power station,portable battery power station |

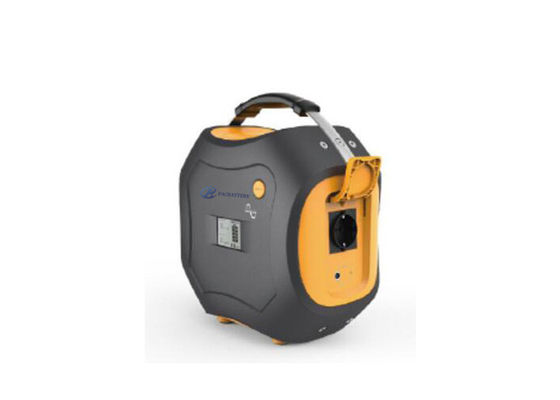

578Wh Portable Camping lithium Battery high capacity Power Source 300w output rate
1. Instruction of 578wh portable power source
The 578wh portable camping power source is built with 18650 lithium ion batteries and battery management system. It has DC output up to 120w and AC output up to 300W, using high capacity rechargeable battery pack, and provides standby power to electronic products, such as LED TV, mini fridge, LED lights, Drone, tablet and console etc. The battery can be charged by AC adaptor and solar panel. Simultaneous DC charging and discharging is possible. It is offering USB ports, multiple DC 12V and an in-built “pure sine wave” 230V inverter, you can use all your favourite appliances with confidence
2. BMS management system of 578Wh power source
Over current protection: The BMS will cut-off protection circuit if it is over current.
Low-voltage protection: When the battery is low voltage, BMS automatically close all output function. You need to turn off the switch, and then turn on the switch to make the product recover to normal.
Over-voltage protection: When the battery is over voltage, BMS automatically close all input.
Overload protection: When output power or start power of device is too large, BMS automatically turn off the device. You need to turn off the switch, and then turn on the switch to make the product recover to normal.
Short circuit protection: When AC output protection, BMS automatically turn off the device, until the next boot after 5 seconds delay, the AC output start up automatically: When DC output protection, BMS automatically turn off the device, until the next boot after 15 seconds delay (Note: make sure the load is without short circuit, and then turn on the product).
Overheating protection: When internal temperature is over 149℉ or 65℃, BMS automatically turn off the device. You need to turn off the switch, and then turn on the switch to make the product recover to normal.
3. 578Wh Portable camping power source specification(@Battery initial Temp25±5℃)
Battery | high capacity rechargeable lithium Battery |
Battery Capacity | 578Wh |
Dimensions(Length*Width*Height*Total Height) | 270*170*317.6mm |
Weight | 5.7Kg |
Input Recharging |
• 1x DC | 25V, 4A |
Fully Charged Time | 4-5 hours |
DC Output | • 2x DC outlet | 12V, 10A • 1x DC outlet |12V, 10A (cigarette lighter port) |
USB Output | • 2x DC USB port | 5V, 2.1A |
AC Output | • 1x AC 110V / 50Hz or 230V / 60Hz |
Power Indicator | LCD battery indicator |
Operating Temperature | -10℃~ +40℃ |
Battery cycle life | about 1000 times |
4. Charging time of 578wh camping battery for different devices
For tablet 33wh | 10 times |
For console 95w | 6 hours |
For 40w LED TV | 14 hours |
For 70w mini fridge | 8 hours |
For LED Floodlight 50w | 11 hours |
For drone 68wh | 8 times |
5. Description of high capacity portable power lithium battery
6. 578Wh portable power source Operation Instruction
7. Deliveryof 300w output power source
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
