| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | UN38.3, MSDS, ISO9001 etc |
| Model Number: | 1280wh lithium camper battery |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | Deep Cycle Battery For Camper | Typical Energy: | 1280Wh |
|---|---|---|---|
| Logo: | Can Be Customized On Battery Case | House Material: | ABS |
| Weight: | About 13.5kgs | Pulse Current: | 200A(<3s) |
| Battery Protection: | Built-in BMS | Dimension: | 328*172*220mm |
| High Light: | lifepo4 battery pack,lithium iron phosphate deep cycle battery |
||

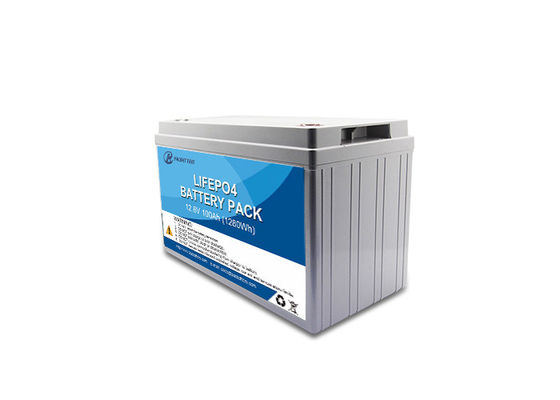

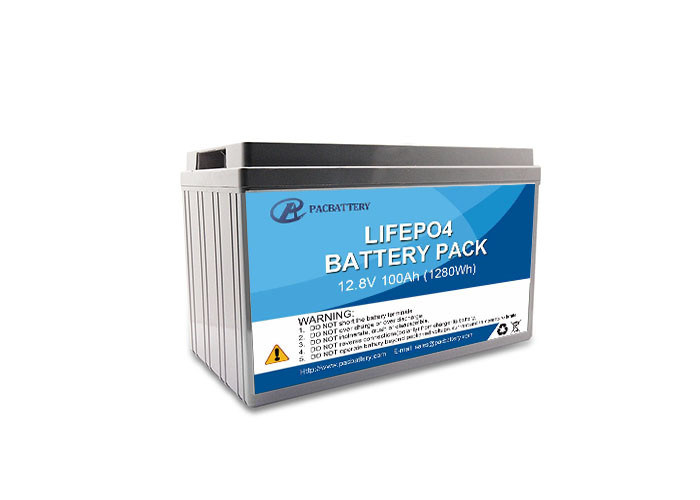

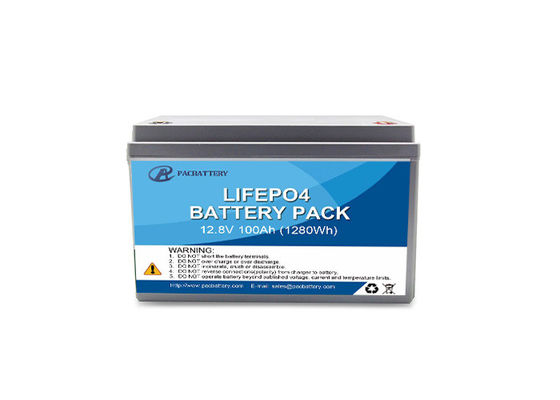

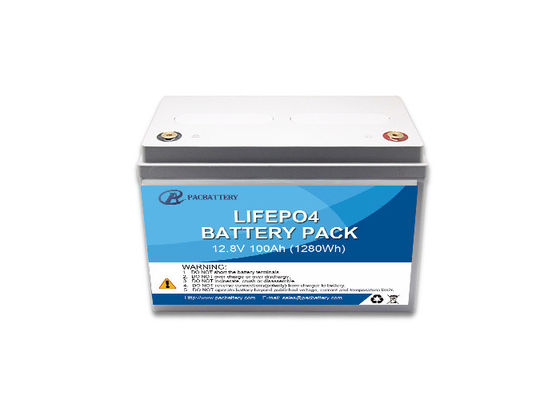

1280Wh Deep cycle PAC battery 12.8v 100Ah lithium iron phosphate pack for camper
1. Instruction of 1280Wh lithium battery pack
This specification defines the performance of rechargeable LiFePO4 battery pack 12.8v 100Ah manufactured by PAC Technology Co.,Ltd, describes the type, performance, technical characteristics, warning and caution of the battery pack. The battery pack is built with deep cycle lithium iron phosphate battery cell and intergarted BMS for protection. It has the same size as 12v lead acid battery and can replace it perfectly.
2. Deep cycle lithium battery pack 1280Wh features
3. Warning & Tips of 1280wh lithium battery
Please read and follow the specification and caution remarks on battery surface before using the battery. Improper use may cause heat, fire, rupture, damage or capacity deterioration of the battery. PAC Technology Co.,Ltd will not responsible for any accidents caused by the usage without following our specification.
* The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time;
* Never put the battery into water;
* Do not put the battery in a charger or equipment with wrong terminals connected;
* Do not mix the battery with different types or different models or from other manufacturers;
* Please use the matched or suggested charger for this battery;
* Please far away from children or pets;
4. 1280Wh deep cycle replacement battery Specification(@Battery initial Temp25±5℃)
| Electrical Characteristics | Nominal Voltage | 12.8V | |
| Nominal Capacity | 100Ah@0.2C | ||
| Energy | 1280Wh | ||
| Internal Resistance | ≤45mΩ | ||
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | ||
| Months Self Discharge | ≤3.5% per month at 25℃ | ||
| Standard Charge | Charge Voltage | 14.6±0.2V | |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. | ||
| Charger Current | 20A | ||
| Max.Charge Current | 50A | ||
| Standard Discharge | Discharge Current | 20A | |
| Max. Continuous Current | 100A | ||
| Max.Pulse Current | 200A(<3S) | ||
| Disxcharge Cut-off Voltage | 10.0V | ||
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | ||
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||
| Water Dust Resistance | IP55 | ||
| Mechanical | Cell & Method | IFR32700 N60, 4S17P | |
| Plastic Case | ABS | ||
| Dimension(L*W*H*TH) | 328*172*215*220mm | ||
| Weight | Approx.13.5kgs | ||
| Terminal | M8 | ||
5. Battery discharge curve of different temperature
6. Delivery of 1280Wh lithium battery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
