Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/ODM |
Certification: | IEC62133, UN38.3, MSDS |
Model Number: | 32650-6000mAh |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | White inner box, standard export carton |
Delivery Time: | 3-10 days for samples, 15-35 days for mass production |
Payment Terms: | T/T |
Supply Ability: | 100,000pcs/day |
Type: | Lithium Iron Phosphate Battery | Cell Model: | 32650 |
---|---|---|---|
Nominal Voltage: | 12.8V | Nominal Capacity: | 6Ah |
Items: | Lithium 12V Deep Cycle Battery | Application: | Solar System |
Keywords: | Lithium 12V Deep Cycle Battery, Lithium 12V, 12V Deep Cycle Battery | Protection: | Built-in PCM |
Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 2000 Times |
High Light: | lifepo4 battery pack,lithium iron phosphate deep cycle battery |

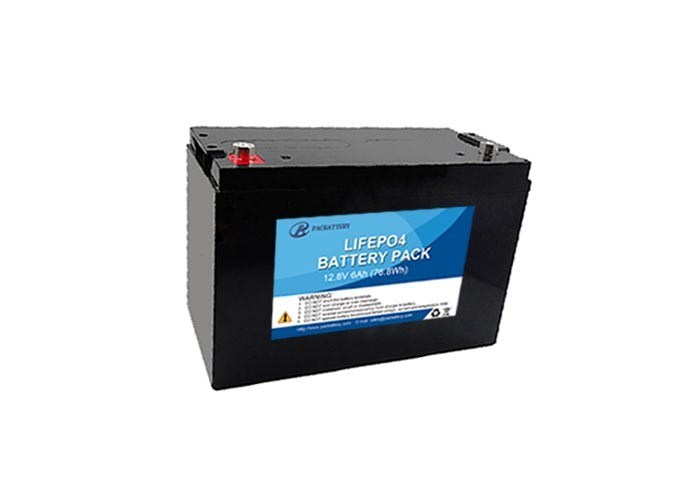

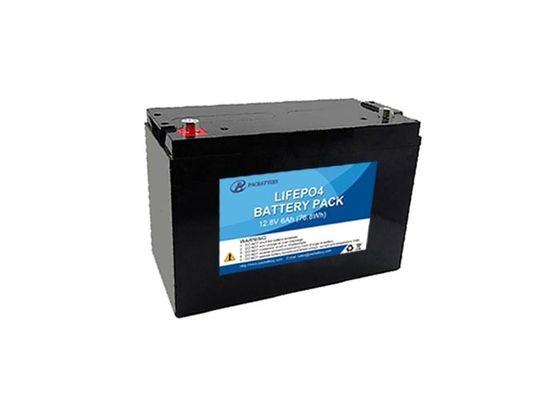

Parameters of Lithium 12V deep cycle battery with 6Ah capacity:
No.
|
Item
|
General Parameter
|
1.1
|
Description
|
Lithium 12V deep cycle battery with 6Ah capacity
|
1.2
|
Cell Model
|
32650-6000mAh
|
1.3
|
Typical Capacity
|
6Ah |
1.4
|
Typical Voltage
|
12.8V
|
1.5
|
End of Charge Voltage
|
15.6V
|
1.6
|
Charge Current
|
0.2C
|
1.7
|
Charging time
|
5-6 Hours
|
1.8
|
End discharge Voltage
|
8.0V
|
1.9
|
Max continuous charge current
|
6A
|
2
|
Maximum Peak Discharging Current
|
12A (less than 3S)
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
2.2
|
Over-Current Discharge Protection
|
12A
|
2.3
|
Short circuit protection
|
With protection
|
2.4
|
Dimension
|
90*70*101*107mm |
2.5
|
Weight
|
0.75kgs
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Note: we have different capacity for Lithium 12V deep cycle batteries. Please send us email for your different requirements.
Features for Lithium 12V deep cycle battery:
Application for Lithium 12V deep cycle battery:
UPS
Solar &Wind power system
Golf Cart
Electric vehicle , E-bike, E-rickshaw
Lighting
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
PAC BATTERY provide One-stop solution:
Lithium battery cell manufacturing, prismatic shape and other special shap battery, curved battery.
Cylindrical Li ion battery cell manufacturing, 18650, 26650, 14500, 32650, 32700
Battery management system (BMS) design, PCM, PCB, production is done in-house
Plastic tooling, injection is done in-house
Battery packing is done in-house
