| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 32650-6Ah |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 3-20 days for samples, 15-35 days for mass production |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/day |
| Type: | LiFePO4 Rechargeable Battery | Cell Model: | 32650 |
|---|---|---|---|
| Nominal Voltage: | 12.8V | Nominal Capacity: | 300Ah |
| Items: | 12V 300Ah Lithium Iron Phosphate Battery | Application: | Solar Energy |
| Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 2000 Times |
| Oem/odm: | Negotiable | Keywords: | 12V 300Ah, 300Ah Lithium Iron Phosphate Battery, Lithium Iron Phosphate Battery |
| High Light: | lifepo4 battery pack,lithium iron phosphate deep cycle battery |
||

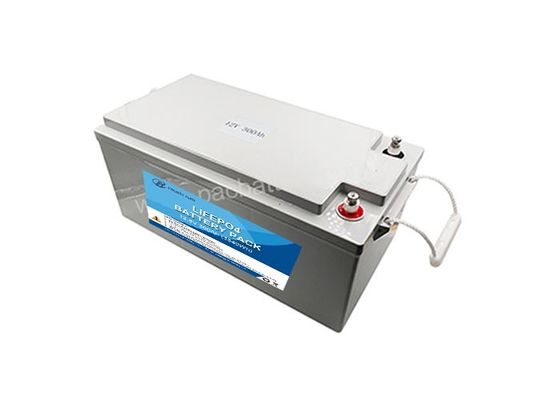

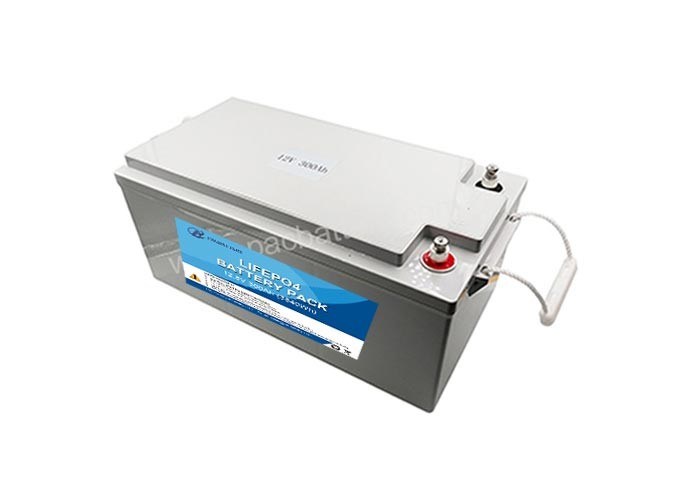

12V 300Ah Lithium Iron Phosphate Battery for residential energy storage, made of 4S50P-32650 configuration, with following features:
Technical information for 12V 300Ah Lithium Iron Phosphate Battery:
|
No.
|
Item
|
General Parameter
|
|
1.1
|
Description
|
12V 300Ah Lithium Iron Phosphate Battery
|
|
1.2
|
Cell Model
|
32650-6000mAh
|
|
1.3
|
Typical Capacity
|
300Ah |
|
1.4
|
Typical Voltage
|
12.8V
|
|
1.5
|
End of Charge Voltage
|
15.6V
|
|
1.6
|
Charge Current
|
0.2C
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
1.8
|
End discharge Voltage
|
8.0V
|
|
1.9
|
Max continuous charge current
|
100A
|
|
2
|
Maximum Peak Discharging Current
|
200A
|
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
|
2.2
|
Over-Current Discharge Protection
|
200A
|
|
2.3
|
Short circuit protection
|
With protection built in
|
|
2.4
|
Dimension
|
520*269*220mm |
|
2.5
|
Weight
|
39kgs
|
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Note:
If above specification can't satisfy you, please contact us for your detailed requirement.
We could make customized Lithium Iron Phosphate Battery 12V based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..
12V 300Ah Lithium Iron Phosphate Battery application for residential energy storage:
Advantage of Lithium Iron Phosphate Battery, Comparing to Lead Acid Battery
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
