Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | OEM/PAC |
Certification: | ROHS, UN38.3, MSDS etc |
Model Number: | Telecom lithium battery 48v 50Ah |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Nominal Energy: | 2400wh | Battery Cell Type: | Prismatic Battery |
---|---|---|---|
Typical Capacity: | 50Ah | Battery Application: | Telecom Base Station |
Battery Protection: | Smart BMS | Protocol: | IO-link |
Second Protection: | Air Switch | Dimension: | Customized |
High Light: | base station battery,long life lithium battery |

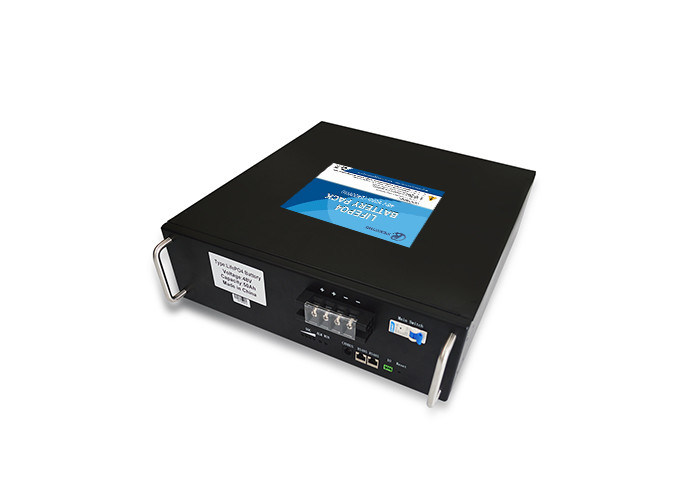

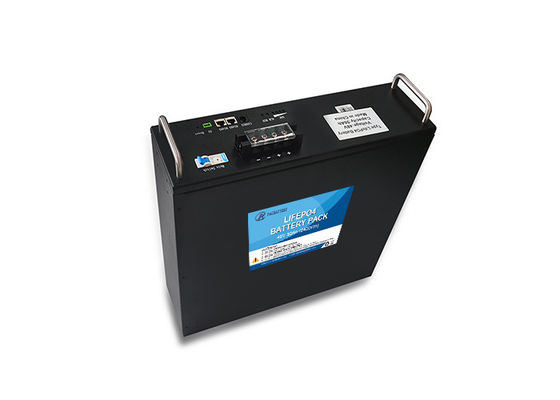

48V Telecom lithium battery pack 50Ah safe LiFePO4 cells with IO link
We can provide One-Stop Solution globally in the field of renewable energy, from cell, BMS/PCM to battery pack assembling.
1. Instruction of 48v telecom lithium battery

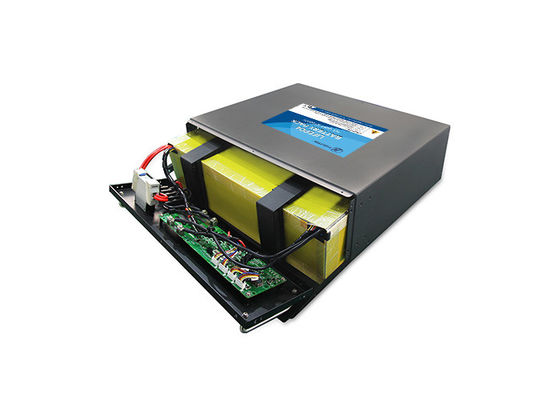

The 48v Telecom lithium battery pack 50Ah is using high safety Lithium iron phosphate battery cell with capacity 50Ah, 15S1P assembled. The battery pack dimension is 482*133*360mm and aslo can be customized. Built with smart BMS and IO link protocol, the customer can check and monitor the battery pack status in real time. We can also make the battery pack with other protocols, such as RS485, RS232, SMBUS, CANBUS, I2C etc. Please contact us if you have any inquiries. We work at 24/7.
2. Application of 48v 50Ah LiFePO4 battery pack
The application of 48v 50Ah battery with IO is very wide, such as Telecom base station, computer server center, business base center, 4G/5G base station etc. It is specially suitable for remote areas.
3. 15S1P 48V 50Ah Telecom battery Specification(@Battery initial Temp25±5℃)
NO | Items | Description | |
Normal Specification | |||
1 | Nominal Voltage | 48V (LFP-15S) | |
2 | Normal Capacity | 50Ah | |
3 | Internal Resistance | ≤50mΩ @1kHz AC | |
Standard Charge | |||
4 | Battery operation temperature range @charging | 0~45℃ | |
5 | Normal charge voltage | 54.75±0.3V | |
6 | Recommended float charge voltage(for Standby use) | 51.75±0.3V | |
7 | Allowed MAX charge current | 50A@Battery initial Temp 25±5℃ | |
8 | Recommended charge current | ≤25A | |
Standard Discharge | |||
9 | Battery operation temperature range @discharging | -20~60℃ | |
10 | Output voltage range | 37.5~54.75V | |
11 | Allowed discharge current | 50A | |
12 | Pulse discharge current | 200A withstand 3s | |
13 | Discharge cut-off voltage | 37.5V | |
Mechanical Characteristics | |||
14 | Dimension | Length 482±2mm | |
Width 133±2mm | |||
Height 360±2mm | |||
15 | Weight | About: 28±0.5Kg | |
Storage | |||
16 | Storage Temperature & Humidity Range | Short: within one month | -20~+ 60℃, 5~75%RH |
Long term: above one month | -10~+45℃, 5~75%RH | ||
17 | Self-discharge rate | Residual capacity | ≤2% per month; |
Reversible capacity | ≤1%per month; |
4. Operation principle of 48v 50Ah Telecom battery pack
Input AC 220V, after rectification power module, output DC 48V. When the power grid normal, the battery will supply power according to system requirement, and to be charged at same time; when power off, the battery will supply energy, to make sure the DC power system working normally, to realize uninterruptible power supply. The power supply has second disconnection function, when the battery voltage is low, the battery output would be cut off to protect battery.
5. Package of 48V 50Ah battery pack
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.
6. 48V 50Ah telecom lithium batteryDelivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
