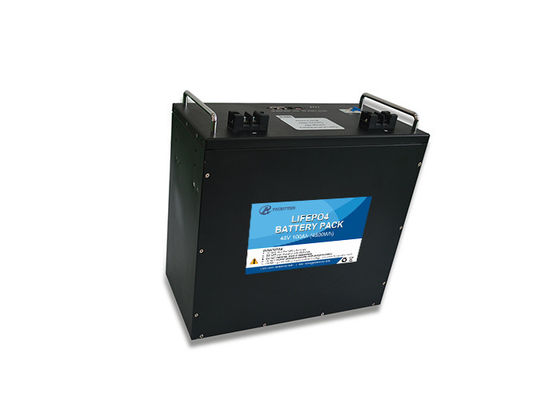

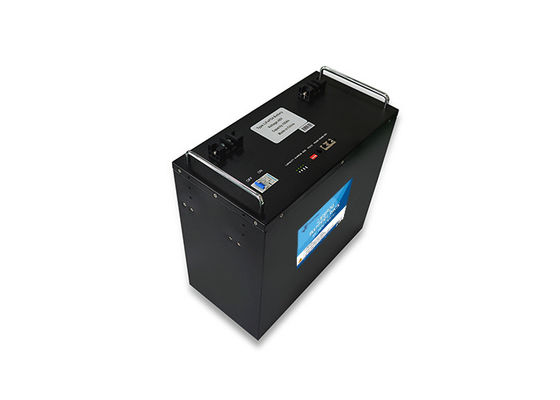

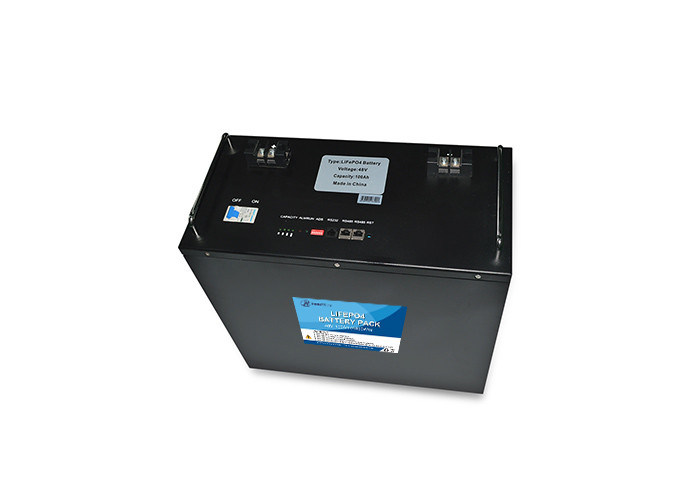

4800wh Lithium Ion Battery For Telecom Application Metal Case Small Volume

4800wh Lithium Ion Battery For Telecom Application Metal Case Small Volume

4800wh Lithium Ion Battery For Telecom Application Metal Case Small Volume
4800wh Lithium Ion Battery For Telecom Application Metal Case Small Volume

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: UL, ROHS, UN38.3, MSDS etc
Model Number: 48v 100Ah

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: 48v 100Ah Lifepo4 Battery Battery Application: Telecom
Battery Case: Metal Max Charge Current: 100A
Typical Energy: 4800Wh Pulse Current: 200A
Warranty: 3 Years Cycle Life: More Than 2000 Times
High Light:

base station battery

,

long life lithium battery

4800Wh Telecom lithium battery 48V LiFePO4 pack 100Ah metal case


1. Description of 4800Wh Telecom battery

48V High power LiFePO4 Battery Module with compact designed metal housing, built-in smart BMS and LED indicator as a key-turn and plug-and-play battery solution to direct drop in Replacement on lead-acid(AGM/GEL) battery applications. Providing twice the run-time at approximately half the weight of a comparatively sized lead-acid battery, excellent float and cycle life over 2000 times results in low operating costs with high investment returns for end user applications.


2. Appearance of 4800Wh LiFePO battery pack

There shall be no such defect as scratch, bur and other mechanical scratch, and the connector should be no rust dirt. The structure and dimensions see attached drawing of the battery.

3. 48V 100Ah LiFePO4 battery pack for telecom use

  • Applying to field of communication energy saving
  • Providing varies voltage platform energy storage battery packs, voltage vary from 12V to 336V
  • Small volume, light weight, long cycling life and high temperature adaptability
  • It can be used in power sets of base station, access network, IDC rooms



3. Specification of 48V 100Ah LiFePO4 battery(@Battery initial Temp25±5℃)

Electrical Characteristics Nominal Voltage 48V
Nominal Capacity 100Ah@0.2C
Energy 4800Wh
Internal Resistance ≤35mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 80% Capacity.
Months Self Discharge ≤2% per month at 25℃
Standard Charge Charge Voltage 54.75±0.2V
Charge Mode(CC/CV) At 0℃~45℃ temperature, charged to 54.75V at a constant current of 0.2C, and then, changed continuously with constant voltage of 54.75V until the current was not more than 0.02C.
Charger Current 20A
Max.Charge Current 50A
Standard Discharge Discharge Current 20A
Max. Continuous Current 100A
Max.Pulse Current 300A(<3S)
Disxcharge Cut-off Voltage 37.5V
Environmental Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Interface RS485, RS232
Mechanical Cell & Method prismatic cell, 15S1P
Case material metal
Dimension(L*W*H*TH) 482*440*220mm
Weight Approx. 55kgs
Terminal plug and play type



4. Charging characteristics of 48V 100Ah Telecom battery

4800wh Lithium Ion Battery For Telecom Application Metal Case Small Volume 0


5. 48V 100Ah lithium battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

4800wh Lithium Ion Battery For Telecom Application Metal Case Small Volume 1


6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
