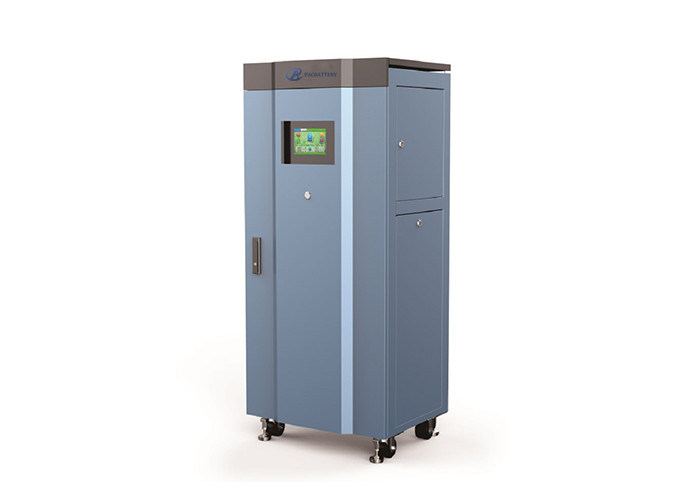

2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor

2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor

    • 2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor
    • 2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor
    • 2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor
    • 2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor
  • 2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: PAC/OEM
    Certification: UL, MSDS, UN38.3 etc
    Model Number: 2.5kwh all in one ESS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Standard export carton, wooden case, pallet etc.
    Delivery Time: 15-20 days for samples, 20-30 days for bulk order
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 60,000kWh per month
    Contact Now
    Detailed Product Description
    Typical Energy: 2.5kwh Module Type: All In One
    Weight: 270kgs Battery Application: Home Energy Storage
    Solar Charge Power: 75-140V 5400W AC Charge: 5000w
    Built-in Battery: Li Ion 52V 2500wh Battery Dimension: 650*545*1600mm
    High Light:

    hybrid lithium battery

    ,

    home energy storage battery

    2.5kWh solar ESS all in one energy storage lithium battery with remote monitor

    1. Features of 2.5kWh all-in-one energy storage module

    • Waterproof design of housing, good for outdoor using
    • Battery in modular design, capacity optional, easy installation and operation
    • Patent lithium BESS Technology with high Quality Components
    • Safe and family friendly
    • Long life span and worry free
    • Remote and mobile monitoring
    • Anti-load capacity, high load capacity, can drive all the loads, in addition to drive all kinds of resistance load, but also load various types of inductive type devices, such as motors, air conditioners, electric drills, fluorescent lamps, gas lamps, etc.;
    • This solar backup generators have using pure sine wave frequency circuit design, product performance and stability, low failure rate, long life, easy maintenance, normal life can reach more than five years;
    • Perfect protection: low pressure, high pressure, high temperature, short circuit, overload, etc.


    2. Specification of 2500wh ESS module

    All-in-one ESS(Energy Storage System)
    Model No. ES5048 ES3048
    Battery
    Battery Paralleling YES
    Battery Capacity 2.4KWh*8 2.4KWh*8
    Battery Type Samsung Li-ion Battery
    Rated Output Power 5000W 3000W
    Peak Output 7500W 4500W
    Output Voltage 220/230/240V 100/110/120V
    Output Frequency 50/60Hz±0.1%
    Overload Ability 100%-110%@10min;110%-150%@10s
    UPS Function YES
    On/off Grid On&Off Grid
    Max Efficiency 92%(>70%Load)
    AC Charge
    Input Voltage

    203~253

    (50Hz Default)

    88%Uo~110%Uo

    (60Hz Default)

    Power Factor 0.95%(Full load)
    Input Frequency

    47.5-51.5Hz

    (50Hz Default)

    59.3~60.5Hz

    (60Hz Default)

    Max Charge Power 5000W 3000W
    Max Efficiency >0.92%
    PV Charge
    Max Input Power 5400W 3000W
    MPPT Amount 2
    MPPT Input Voltage 75~140V
    MPPT Efficiency 99.5%
    Max Efficiency >96%
    Solar Charing Mldel MPPT
    General
    Working Condition Relative Humidity:5%~90%~
    Remperature:0~45℃
    Product Dimension H1600*W650*D545
    Net Weight 270Kg



    3. How the 2.5kWh Energy Storage System works?

    Solar Panel:
    Installed in an array on your roof, solar panels convert sunlight into electricity.

    ESS:
    Built-in Pure Sine Inverter
    Built-in MPPT Solar Controller
    Built-in Lithium Battery
    Built-in BMS(Battery Management System)
    2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor 0


    4. Transportation & Storage of 2.5kwh energy storage lithium battery

    1. For long-term storage of this product, it need to be placed in a dry, clean, lucifuge, well-ventilated indoor environment;
    2. This product needs to be stored and transported with around 60% SOC;
    3. For long-term storage, product need to be charged once every 6 months;
    4. During transport, no drop, no pile up, no turning, and make sure to place upward.


    5. ESS lithium Battery Delivery

    • ​By Air with Door to Door Service
    • By Sea with Door to Door Service
    • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

    2.5kwh Solar Energy Storage Lithium Battery All In One Type With Remote Monitor 1
