Home ProductsEnergy Storage Lithium Battery

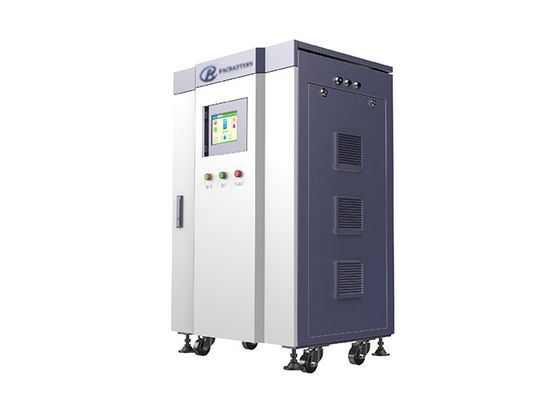

10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security

10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security

    • 10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security
    • 10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security
    • 10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security
    • 10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security
  • 10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: PAC/OEM
    Certification: MSDS, UN38.3, ISO9001, ISO14001
    Model Number: 10kw Three Phase ESS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Standard export carton, wooden case, pallet etc.
    Delivery Time: 15-20 days for samples, 20-30 days for bulk order
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 60,000kWh per month
    Contact Now
    Detailed Product Description
    Typical Energy: 2.5kwh Featurue: 3-phase All-in-one Solar ESS
    Weight: 400kgs Feed Into Grid: Yes
    Solar Charge Power: 75-140V 16kW AC Charge: 6000w
    AC Output: 12KVA Dimension: 930*750*1770mm
    Lifespan: 10 Years Monitor: LCD Display
    Output: 4pcs Warranty: 2 Years
    High Light:

    hybrid lithium battery

    ,

    energy storage system lithium ion battery

    Hybrid home Energy Storage Battery 10KW li ion pack Three Phase Solar System

    1. Features of 10kw Three Phase Solar System

    1. The commercial Solar Generator with CPU intelligent control technology, high-performance security;
    2. Pure sine wave output, the output frequency are 50HZ, coincide with the mains, it also can be applied to any (not greater than the present maximum output power) loads, including motors, compressors, relays, fluorescent lamps, laser printers, impact drill and some not analog sine wave and modified sine wave inverter drive electrical equipment;
    3. Small noise in this commercial solar generator, there is no noise in addition to high-temperature radiator fan running small noise.
    * More specifics and detailed product features or other custom feature, pls contact with us, those specifications are subject to communication.


    2. Specification of 10kw residential all ion one system

    Model Name MG3210K Distributed On-off Micro Grid System
    Continuous Rated Power 10KW
    AC Parameters
    Rated Alternating Voltage Grid Voltage 400VAC
    Inverter Voltage 400VAC
    Rated AC Frequency 50Hz
    Total Harmonic Distortion Grid Current <4%
    Inverter Voltage 2%
    On/off Grid Switching Time < 20ms
    Maximum Inverter Efficency 93.80%
    ≥92%
    Referenced Certification Standard CE,VDE 0126-1-1
    Output Wave Pure Sine Wave
    DC Parameters
    Recommended Each line PV Input Power 4000W
    PV Input 3 lines
    Each PV Line Panels Start-up Maximum Voltage 145VDC(under definite lowest temperature condition)
    MPPT Voltage Range 70~120VDC
    PV Maximum Output Current 240A
    Charger Maximum Efficiency 97.30%
    Battery Voltage Rated Value 52VDC
    Working Range 48~57VDC
    System Parameters
    Stored Capacity ≥30KWh
    External Communications RS485(RS232/USB/Internet Optional)
    Working Environment Temperature 0oC~45oC
    Working Environment Humidity 10%~90%
    Altitude <2000m
    IP Grade IP54
    Dimension Battery Box 1130mm×800mm×600mm
    Inverter Box 1130mm×800mm×600mm
    Weight Battery Box 240kg
    Inverter Box 210kg



    3. Application of 10kw battery system

    • Off grid power supply for places with lack of electricity or unstable utility, or remote area without access to AC electricity.
    • Backup power supply for hospital, bank, school, church, temple, etc
    • Power supply for business activity
    • UPS for typical application required uninterrupted power supply
    • Centralized power supply for village, community, islander, small tourist area, etc


    4. How the 10kw Three Phase Solar System works?

    Solar Panel:
    Installed in an array on your roof, solar panels convert sunlight into electricity.

    ESS:
    Built-in Pure Sine Inverter
    Built-in MPPT Solar Controller
    Built-in Lithium Battery
    Built-in BMS(Battery Management System)
    10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security 0


    5. Off Grid Mode of 10kw ESS
    When the grid is disconnected or breakdown, our system will works in Off Grid mode. Under this mode, the
    unit will transfer solar power or electricity stored in the battery to AC, to power up all the loads.
    10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security 1


    6. Delivery of 10kW Energy Storage Lithium Battery

    • ​By Air with Door to Door Service
    • By Sea with Door to Door Service
    • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

    10kw Hybrid Lithium Battery , Home Energy Storage Battery High Security 2



    7. Why Choose PAC Technology Co., Ltd?

    Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
    Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
    Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


    PAC Battery provides 24 hours customer service. Waiting for your inquiry!
