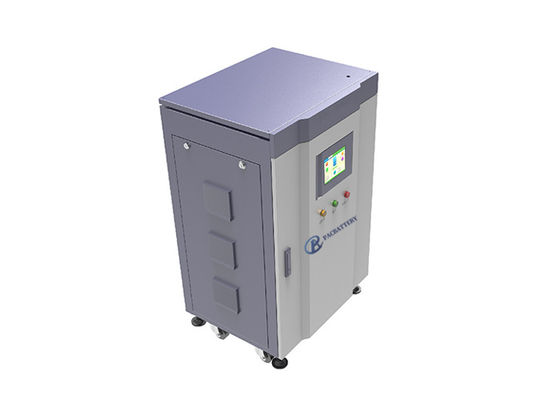

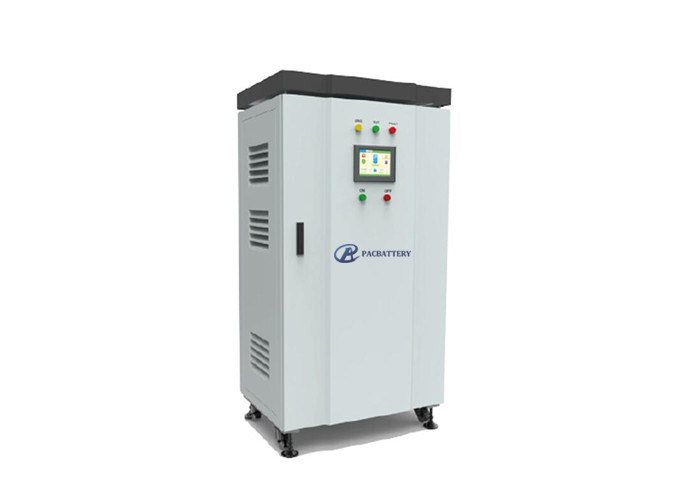

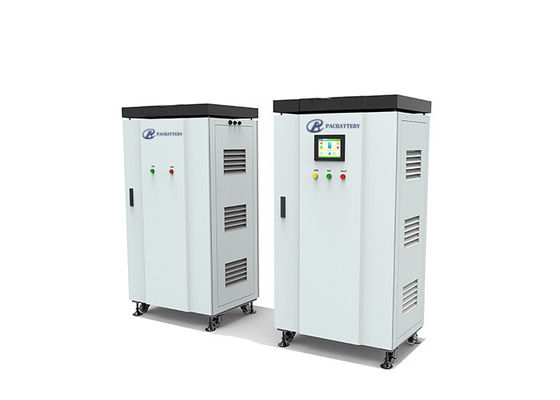

52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS

52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS

52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS
52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3, ISO9001, ISO14001
Model Number: 30kWh Energy storage battery

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Energy: 30kwh Featurue: UPS Functional
Weight: 360kgs Feed Into Grid: Yes
Solar Charge Power: 75-140V 16kW AC Charge: 7.5Kw
Dimension: 930*750*1770mm Lifespan: 10 Years
AC Output: 15kw Warranty: 2 Years
High Light:

home energy storage battery

,

energy storage system lithium ion battery

52V Energy Storage Lithium battery 30kwh UPS functional for three phase solar ESS

1. Features of 52V 30kwh Energy Storage Lithium Battery

  1. The use of microcontroller and dedicated software, intelligent control;
  2. The use of battery discharge rate characteristic correction accurate discharge control.
  3. With over charge, over discharge, automatic control of electronic short circuit, overload protection, unique anti-reverse protection; more protection and it won’t damage any parts, and won’t burn the insurance;
  4. The Use of a digital LED display and settings, this 4000w battery system for solar are design one-button operation to complete all set up, extremely easy to use and intuitive role is to control the entire system state, In the large temperature difference, the controller should have qualified temperature compensation function. Other additional features such as light control switch.

* More specifics and detailed product features or other custom feature, pls contact with our R&D department, those specifications are subject to communication.


2. Specification of 15kw residential all-in-one lithium battery system

Model Name MG3215K Distributed On-off Micro Grid System
Continuous Rated Power 15KW
AC Parameters
Rated Alternating Voltage Grid Voltage 400VAC
Inverter Voltage 400VAC
Rated AC Frequency 50Hz
Total Harmonic Distortion Grid Current <4%
Inverter Voltage 2%
On/off Grid Switching Time < 20ms
Maximum Inverter Efficency 93.80%
≥92%
Referenced Certification Standard CE,VDE 0126-1-1
Output Wave Pure Sine Wave
DC Parameters
Recommended Each line PV Input Power 4000W
PV Input 4 lines
Each PV Line Panels Start-up Maximum Voltage 145VDC(under definite lowest temperature condition)
MPPT Voltage Range 70~120VDC
PV Maximum Output Current 320A
Charger Maximum Efficiency 97.30%
Battery Voltage Rated Value 52VDC
Working Range 48~57VDC
System Parameters
Stored Capacity ≥32KWh
External Communications RS485(RS232/USB/Internet Optional)
Working Environment Temperature 0oC~45oC
Working Environment Humidity 10%~90%
Altitude <2000m
IP Grade IP54
Dimension Battery Box 1130mm×800mm×600mm
Inverter Box 1130mm×800mm×600mm
Weight Battery Box 240kg
Inverter Box 210kg



3. How the 15kw UPS functional ESS works?

Solar Panel:
Installed in an array on your roof, solar panels convert sunlight into electricity.

ESS:
Built-in Pure Sine Inverter
Built-in MPPT Solar Controller
Built-in Lithium Battery
Built-in BMS(Battery Management System)
52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS 0


4. On Grid Mode of 30kwh ESS battery
All loads’ power will be provided by our system, the unit will use battery storage to power the loads under
premise of normal capacity. If PV electricity is more than the loads need at the same time by charged fully, it will
feedback excess electricity to the Grid.
52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS 1
If the battery is low and the sunshine is bad, the system will firstly assure battery capacity is sufficient and use
the grid electricity to power loads.


5. Delivery of 15kw 3-phase solar battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

52v Energy Storage Lithium Battery 30kwh UPS Type For Three Phase Solar ESS 2
