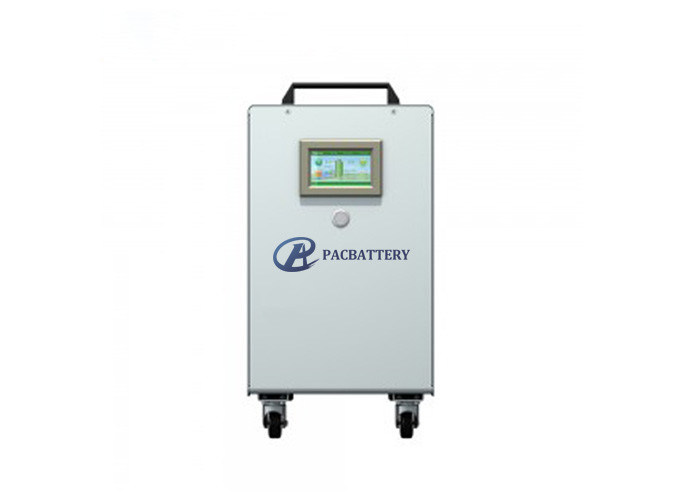

1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential

1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential

  • 1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential
  • 1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential
  • 1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential
1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3, ISO9001, ISO14001
Model Number: 1500W off grid solar ESS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Battery Energy: 3.2kWh Application: Off Grid Solar ESS
Weight: 50KGS Solar Charge Power: 1200W
AC Charge: 600W Dimension: 657*375*645mm
AC Output: 1500W Solar Charging Model: MPPT
High Light:

home energy storage battery

,

energy storage system lithium ion battery

1500W off grid Solar ESS Energy Storage with 3.2kWh lithium ion battery for residential

1. Features of 1500W off grid solar ESS

The 1500W off grid electricity storage system design compact, with multi-functional, it integrated storage battery with solar charge controller, which will be more easy to use. Off grid electricity storage system is widely used in household lighting, outdoor lighting, and with a USB output port, you can charge all kinds of mobile phones, MP3, digital cameras and other electronic products. This system is equipped with solar panels, especially for areas without electricity lighting. There is no need to go to the end-user configuration of other components in the system, you can use it directly, and easy to use, simply assembled on the system host panel voltmeter, it will indicator functioning of various parts of the visual display system.

*More specifics and detailed product features or other custom feature, pls contact with us. Those specifications are subject to communication.


2. Specification of ESS with 3.2kWh lithium ion battery

All-in-one ESS (Energy Storage System)
Model No. PS3215B
Battery
Battery Capacity 3.2KWh
Battery Type Samsung Li-ion Battery
Output
Rated Output Power 1500W
Peak Output 2250W
Output Voltage 100/110/120V OR 220/230/240V
Output Frequency 50Hz/60Hz
Overload Ability 120%<load<130% @10min;130%<load<150% @10s
UPS Function YES
On/off Grid Off Grid
Max Efficiency 92%(>70% Load)
AC Charge
Input Voltage 88~264Vac
Power Factor ≥0.94(full load)
Input Frequency 50/60Hz±5Hz
Max Charge Power 600W
Max Efficiency >92%
PV Charge
Max Input Power 1200W
Start-up Voltage 75Vdc
MPPT Amount 2
MPPT Input Voltage 75~140 Vdc
Max Input Voltage 150 Vdc
MPPT Efficiency 99.5%
Max Efficiency >96%
Solar Charing Model MPPT
General
Working Condition Relative humidity: 5%~90%
Temperature: 0~45℃
Product Dimension 580×300×600mm
Packing Dimension 657×375×645mm
Net Weight 47Kg
Gross Weight 50Kg



3. Household power generation and storage working mode.
General Working Mode ( Suitable for areas without solar power generation, off-grid)
Store the electricity in the night when the electric prices are low for daytime electric use, to save the expense for electricity.
Power Saving Mode ( Suitable for areas with solar power generation, off-grid)
Connect to solar power generation system, directly invert electricity generated from solar panel to AC electricity to supply household application. The storage battery can be charged with the extra solar electricity or in the night when the electricity price is low.
Other working mode: Customers can specify appropriate working mode according to their requirement.


4. Application of 1500W solar Energy Storage System
1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential 0



5. Power Network of 3.2kWh Energy Storage Lithium battery
Connect important load to power storage system, at the time of emergency power outages, the system will supply uninterrupted power In usual time, store the electricity in the night when the electricity price is low, and use the stored electricity in daytime, to save electricity cost. The time interval for power storage can be selected, every night the grid will automatically charge the power storage system . The product is connected to electric grid system, at the time of peak load in the day, the system is switched to inverter output from power storage system, to reduce the consumption of electric power system power, and contribute to the alleviation of peak power consumption.
1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential 1


6. Delivery of 3.2kWh lithium ion battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

1500w Off Grid Solar Batteries , Electrical Storage Systems For Residential 2



7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
