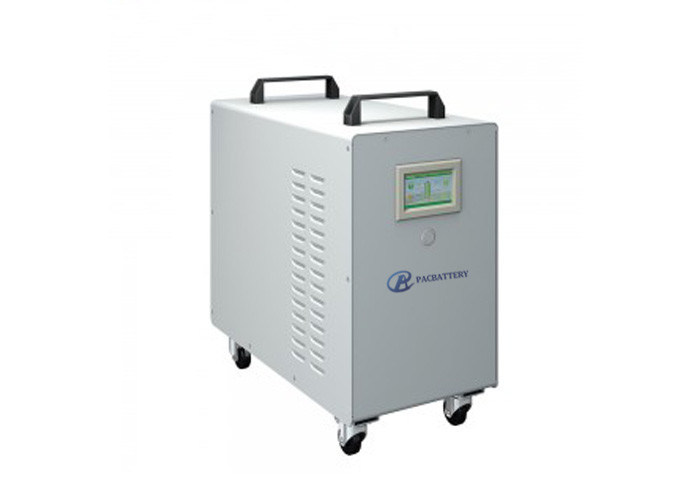

3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System

3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System

3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System
3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System
3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3, ISO9001, ISO14001
Model Number: 3000W solar generator
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Power: 3000W Battery Energy: 6.5kWh
Weight: 160kgs Feed Into Grid: Yes
Solar Charge Power: 2400w AC Charge: 2400w
Dimension: 779*347*912mm Application: Home ESS
AC Output: 3000w MPPT Efficiency: 99.5%
High Light:

home energy storage battery

,

energy storage system lithium ion battery

3000W solar generator with 6.5kwh Energy Storage lithium battery pack for home
1. Features of 3kw solar generator with 6.5kWh battery

  • Small internal resistance and specific high power advantages for solar battery generator. Flexible packaging, laminated, depleted liquid, good security.
  • Lithium iron battery safety: explosion-proof, no leakage, heat resistance, high temperature resistance.
  • Long service time, Lithium batterypack sampling system, solar battery generator Equipped with active balance BMS, to achieve maximize the cycle life of the battery and maximize discharge capacity and cycle life of more than 2000 times.
  • Application: outdoor portable power supply, portable small appliances, emergency lighting / LED lighting, earthquake relief equipment, Xenon lights / lighting, inverters, handheld devices, communications equipment, wireless monitoring equipment, medical equipment, power supply, instrumentation , traffic signs, CPU-board backup power supply, industrial equipment.

*More specifics and detailed product features or other custom feature, pls contact with us, those specifications are subject to communication.
2. Specification of 3000w solar generator

All-in-one ESS (Energy Storage System)
Model No. PS6530B
Battery
Battery Capacity 6.5KWh
Battery Type Samsung Li-ion Battery
Output
Rated Output Power 3000W
Peak Output 4000W
Output Voltage 220/230/240V
Output Frequency 50Hz/60Hz
Overload Ability 120%<load<130% @10min;
130%<load<150% @10s
UPS Function YES
On/off Grid On & Off Grid
Max Efficiency 92%(>70% Load)
AC Charge
Input Voltage 88~264Vac
Power Factor ≥0.95(full load)
Input Frequency 50/60Hz±5Hz
Max Charge Power 2400W
Max Efficiency >96%
PV Charge
Max Input Power 2400W
Start-up Voltage 75Vdc
MPPT Amount 2
MPPT Input Voltage 75~140 Vdc
Max Input Voltage 150 Vdc
MPPT Efficiency 99.5%
Max Efficiency >96%
Solar Charing Model MPPT
General
Working Condition Relative humidity: 5%~90%
Temperature: 0~45℃
Product Dimension 779×347×912mm
Packing Dimension 805×525×1080mm
Net Weight 135Kg
Gross Weight 160Kg



3. Power network of 6.5kWh lithium battery solar generator
Conjunctive use of household power generation system, electric grid system and solar power generation system leads the family to exible use of energy. Connect important load to power storage system, at the time of emergency power outages, the system will supply uninterrupted power . In usual time, store the electricity in the night when the electricity price is low, and use the stored electricity in daytime, to save electricity cost. The time interval for power storage can be selected, every night the grid will automatically charge the power storage system The product is connected to electric grid system, at the time of peak load in the day, the system is switched to inverter output from power storage system, to reduce the consumption of electric power system power, and contribute to the alleviation of peak power consumption. Used as emergency power supply when there is power failure for family use. At the time of power outage, the product is switched automatically to power storage system to supply power to important loads such as TV, LED lighting, and computer. If the product is connected to solar power generation system, it will directly invert electricity generated from solar panel to AC electricity to supply household application, and the extra solar energy can be used to charge the power storage battery.
3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System 0


4. Flexible use during the daytime and multiplication effect by using the system in conjunction with solar energy
Combined utilization with solar panel electricity generation system can be more economical In the daytime use the electricity from solar panel and power storage battery inverter output, to reduce the use of Grid electricity and save electricity cost. When the solar panel is not able to generate power ,use the electricity form power storage battery output, to reduce the use of Grid electricity and save electricity cost.
Multiplication effect = Increase selling power
In the case that the power of the solar panel is big enough , household electricity can be supplied from solar energy only.
3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System 1
Storage battery and solar pannel supply power idependently or connect to Grid and supply power at the same time
3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System 2

5. Delivery of Home solar generator 6.5kWh battery pack

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

3000w Energy Storage System Lithium Ion Battery , Home Solar Battery Storage System 3


6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
