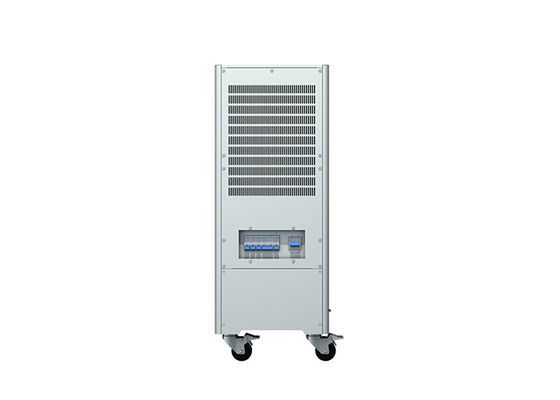

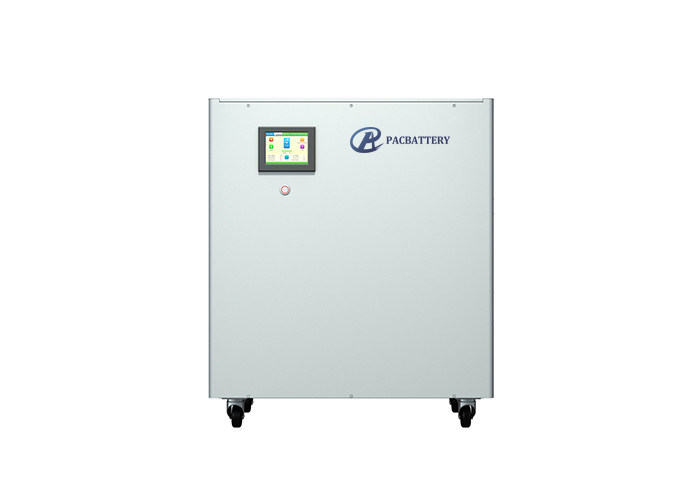

15kwh Energy Storage Lithium Battery Split Phase On / Off Grid Solar ESS 6kva 8kva

15kwh Energy Storage Lithium Battery Split Phase On / Off Grid Solar ESS 6kva 8kva

15kwh Energy Storage Lithium Battery Split Phase On / Off Grid Solar ESS 6kva 8kva
15kwh Energy Storage Lithium Battery Split Phase On / Off Grid Solar ESS 6kva 8kva

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3, ISO9001, ISO14001
Model Number: 6kva 8kva solar ESS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Battery Energy: 15kwh Featurue: Split Phase Solar Energy System
Weight: 420kgs Feed Into Grid: Yes
Solar Charge Power: 4200w AC Charge: 4000w
Dimension: 930*750*1770mm AC Output: 8kw
High Light:

hybrid lithium battery

,

energy storage system lithium ion battery

15kwh li ion Energy Storage lithium battery split phase on / off grid solar ESS 6kva 8kva

1. Features of 8kva split phase ESS

  • High reliability and stability
  • Power frequency isolation solution with higher safety
  • Multi-functional: taking the power load, grid-generation, gird recharge, etc.
  • Perfect power management function, completed unattended power supply solutions
  • Backup UPS function
  • Open external communication interface providing users with programmable access
  • Outdoor use


2. Specification of 15kwh li ion energy storage battery

15kwh li ion Energy Storage lithium battery split phase on / off grid solar ESS 6kva 8kva
Continuous Rated Output Power 8kva
AC Parameters Rated Output Power 8000va
Rated Output voltage(Frequency) split phase 2×120V(60Hz)/240V(60Hz)
AC Input Voltage Range 216~264V/59.3~60.2Hz
Max. AC Charging Current 32A
Max. AC Charging Power 4000w
PV Input PV Input Power Per Line 4200w
Number of MPPT 2
Maximum VOC of each line 145v
MPPT Voltage Range 70~140Vdc
PV Maximum Output Current 160A
Parameters Grid-tied Current <4%
Off-grid Voltage <2%
Max AC Inverter efficiency 93.8%
Max PV charge efficiency 97.3%
On/Off grid switching time ≤16.7ms
Protectioins OVP/UVP/OCP/OTP/Short
General Operation ambient temperature 0℃~45
Operation ambient humidity 10%~90%
Altitude 2000m
IP rate IP54
Dimensions(W*D*H) 930*750*1770mm
Gross Weight 420kgs



3. Electricity Saving of 15kwh li ion battery
In the daytime using the electricity stored in the night, energy saving. Charge the power storage system in night time of less electricity consumption, and in the daytime use the electricity that stored in the night, contribute to restrain power waste. Connected to solar power generation system , it can supply power directly to household appliances , or charge the power storage system with the redundant power, to reduce the use of electricity from Grid system.

4. Reassurance
When there is a power failure, the stored electricity can be used as backup power, the product has the function of UPS. When there is a power failure, the product act as an emergency power supply for LCD TV and LED lighting, and other important electric application, to ensure continuous output power.

5. 8kva Energy Storage system Remote monitoring support
The battery system utilization can be showed on LCD screen, automatic management and alarm. Or you can use portable terminal and realize remote monitor through the internet, safe use. PAC household power generation and storage system is able to set different working mode according to household lifestyle.



6. Delivery of 15kwh ESS lithium battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

15kwh Energy Storage Lithium Battery Split Phase On / Off Grid Solar ESS 6kva 8kva 0



7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
