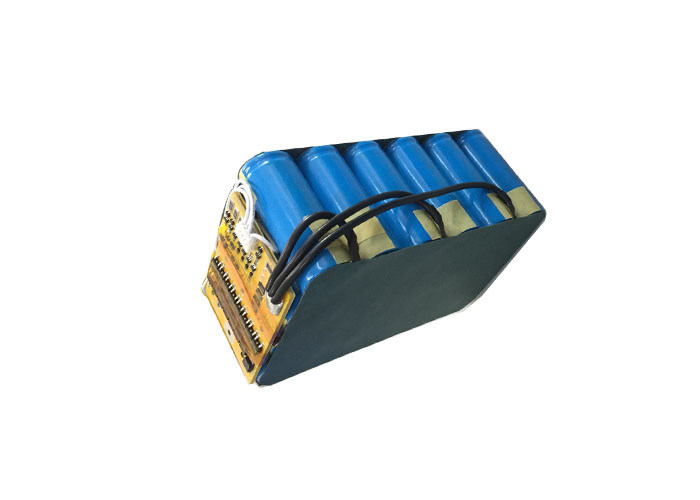

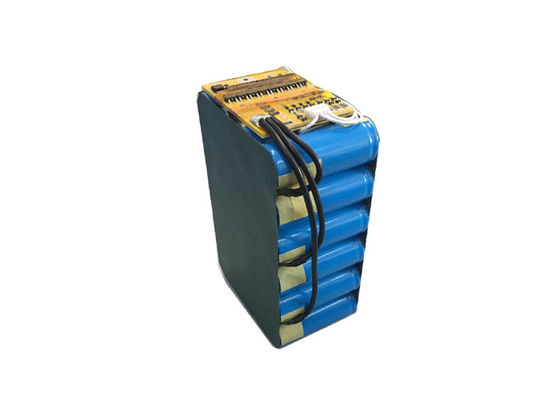

4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply

4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply

    • 4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply
    • 4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply
    • 4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply
    • 4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply
  • 4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: PAC/ODM
    Certification: IEC62133, UN38.3, MSDS
    Model Number: 26650 3.2V 33000mAh 4S6P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: Negotiable
    Packaging Details: Standard Export Carton
    Delivery Time: 7-10 days for samples, 15-20 days for mass production
    Payment Terms: T/T
    Supply Ability: 5,000pcs/day
    Contact Now
    Detailed Product Description
    Type: Lithium Ion Phosphate Battery Cell Model: 26650 3.2V 3300mAh
    Nominal Voltage: 12.8V Nominal Capacity: 20Ah
    Items: 4S10P 26650 12V 33Ah Lithium Ion Phosphate Battery Pack Application: Portable Power Station
    Keywords: Deep Cycle LiFePO4 Battery Pack, 12V 20Ah Battery Pack Protection: Built-in PCM
    Certificate: IEC62133, UN38.3, MSDS Cycle: 500 Times
    High Light:

    lifepo4 battery pack

    ,

    12v lifepo4 deep cycle battery

    Deep Cycle LiFePO4 Battery Pack 4S10P 26650 12V 20Ah for UPS Power Supply

    Deep Cycle LiFePO4 Battery Pack 12V 20Ah Battery Pack, using Lithium Phosphate 26650 battery cell, 4S6P assembly, widely use for solar street light, UPS/ power back up supply, portable power station.


    Advantage of 26650 LiFePO4 battery, comparing to Lead acid battery:

    Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
    Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
    Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
    Wider Temperature Range: -20 C~60 C.
    Superior Safety: Lithium Iron Phosphate chemistry eliminates
    the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
    Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.


    Specification of  Deep Cycle LiFePO4 Battery Pack 4S10P 26650 12V 20Ah

    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    26650 12v 20ah rechargeable LiFePO4 battery pack for power supply
    4S6P pack
    1.2
    Cell Model
    26650 3.2V 3300mAh

    1.3
    Typical Capacity
    20Ah

    1.4
    Typical Voltage
    12V

    1.5
    End of Charge Voltage
    14.6V

    1.6
    Charge Current
    0.2C

    1.7
    Charging time
    5-6 Hours

    1.8
    Over-Charge Voltage Protection cell
    3.65V

    1.9
    Max continuous charge current
    20A

    2.0
    Maximum Continuous Discharging Current
    40A

    2.1
    Over-discharge Voltage Protection cell
    2.5V

    2.2
    Over-Current Discharge Protection
    60A

    2.3
    Short circuit protection
    With protection

    2.4
    Dimension
    181*77*167mm (7.13"*3.03"*6.57")

    2.5
    Weight
    2.7kg

    2.6
    Operation Temperature Range
    Charge 0~55 C, Discharge -10~60 C

    Deep Cycle LiFePO4 Battery Pack Application:
    _03

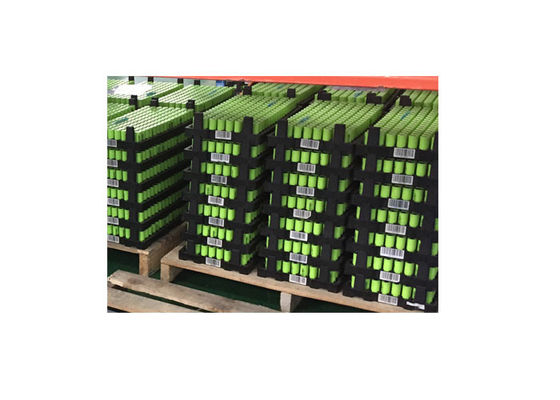

    Lithium Battery Cylindrical Cell 18650, 26650, 32650, 32700 Manufaturing- Work Shop:
    24V 30Ah LiFePO4 polymer battery With Built-in BMS, deep cycle battery pack



    PAC Battery Provides:

    Lithium battery cell manufacturing, with different capacity.

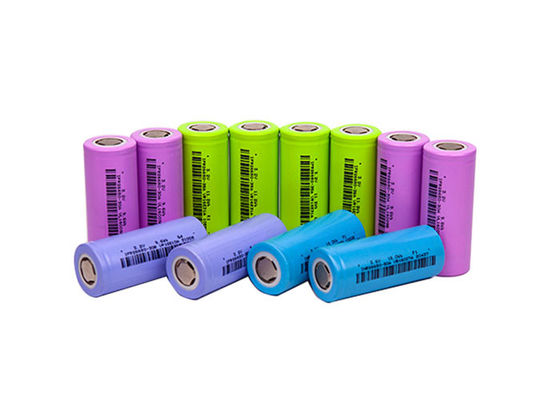

    Cylindrical Li ion battery cell (18650/ 26650/ 32650,38120, 14500) manufacturing.
    Battery management system (BMS/PCM) design, production is done in-house.
    Plastic tooling, injection is done in-house.
    Battery packing is done in-house.


    26650 Battery Pack Delivery

    • By Air Door to Door Service

    • By Sea Door to Door Service

    • By Express: EMS, TNT, UPS, FedEx



    4S10P 26650 Deep Cycle LiFePO4 Battery , 20Ah LifePO4 Battery Pack For UPS Power Supply 2

    Why Choose Us?

    Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
    Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
    Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.


    24 hours customer service, waiting for your inquiry!
