| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | ISO9001, ISO14001 |
| Model Number: | High Voltage battery 192V 130Ah |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet. |
| Delivery Time: | 4weeks for samples; 6~8weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 192V | Typical Capacity: | 130Ah |
|---|---|---|---|
| Battery Combination: | 60S2P | Weight: | About 350kgs |
| Battery Application: | Data Center, Residential ESS | Standard Discharge Current: | 0.2C |
| Communication: | CANBus, RS485, RS232, Modbus | Standard Charge Current: | 0.2C |
| High Light: | lithium ion battery for telecom application,base station battery |
||
High voltage ESS 25kwh 50kwh Telecom lithium ion battery 192V 130Ah for solar system
1. 192V 130Ah Battery System Instruction

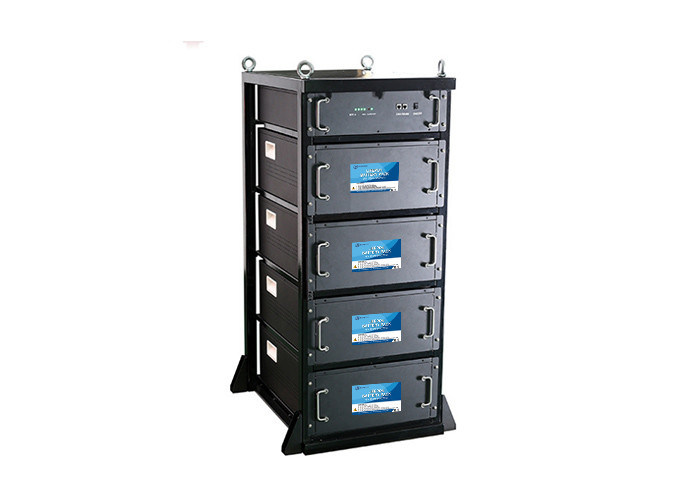

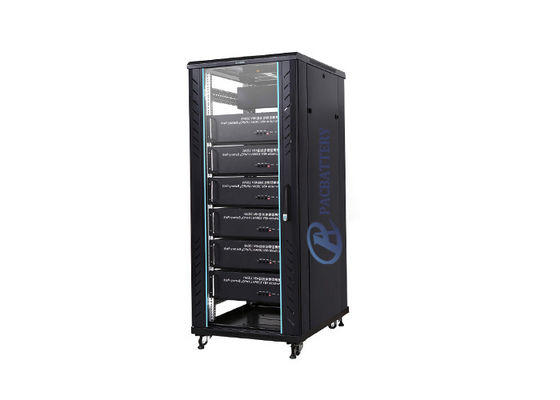

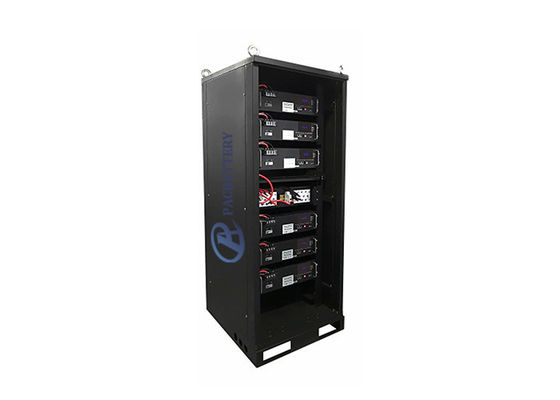

High voltage ESS lithium battery 192V 130Ah is high power DC application backup power supply Battery system manufactured by PAC Technology Co.,Ltd, using prismatic deep cycle lithium iron phosphate battery cell, 60S2P assembled, to provide 25kW backup power for residential Solar Energy Storage System. The 192V 130ah battery consists of 4 modules of 48V 130Ah batteries and 1 standard 19”cabinets, connected in series to form super high voltage battery system.
2. 25kwh LiFePO4 battery system Application
3. 192V 130Ah lithium ion battery Specification(@Battery initial Temp25±5℃)
| No. | Item | General Parameter | Remark |
| 1.1 | Description |
High voltage ESS 25kwh 50kwh lithium ion battery 192V 130Ah for solar system |
|
| 1.2 | Cell Type | LiFePO4 battery with 65Ah capacity | |
| 1.3 | Typical Capacity | 130Ah | |
| 1.4 | Typical Voltage | 192V | |
| 1.5 | Typical power | 25kWh | |
| 1.6 | Communication | It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| 1.7 | Battery combination | 60S2P | |
| 1.8 | Charging voltage | 219V | |
| 1.9 | End voltage | 120~150V | |
| 2.0 | Standard charge current | 26A | |
| 2.1 | Internal Impedance | ≤200mΩ | |
| 2.2 | Max. continuous charge current | 130A | |
| 2.3 | Standard discharge current | 26A | |
| 2.4 | Max. continuous discharge current | 260A | |
| 2.5 | Cycle life | ＞2000 times | |
| 2.6 | Weight | 350kgs | |
| 2.7 | Dimension | customized | |
| 2.8 | Operation Temperature Range | Charge 0~45℃, Discharge -20~55℃ | |
| 2.9 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH | |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | |||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
|||
| 3.0 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
||
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
4. Working Environment of 192V 130Ah ESS battery
* This product should be used in a dry, clean and ventilated environment;
* Avoid using under the environment of exposure, heat, rain, damp, dust, and fog;
* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;
* Applicable to external environment temperature -5℃~45℃;
* Air relative humidity is not more than 85% (25℃± 5℃);
5. Case Structure of 25kWh solar system lithium battery
| No. | Description | Silk-screen Remark | |
| 1 | connector | INPUT P+ | Output terminal |
| 2 | connector | INPUT P- | Output terminal |
| 3 | LCD screen | LCD | |
| 4 | CAN port | CAN | |
| 5 | connector | OUTPUT P+ | |
| 6 | switch | ON/OFF | |
| 7 | connector | OUTPUT P- | Set the address |
| 8 | Handle | ||
| 9 | Bracket | ||
6. Rechargeable Lithium ion LifePO4 Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
