| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | ISO9001, ISO14001 |
| Model Number: | 38kw high voltage module |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet. |
| Delivery Time: | 4weeks for samples; 6~8weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 384V | Typical Capacity: | 100Ah |
|---|---|---|---|
| Weight: | About 432kgs | Battery Application: | Residential Storage Applications |
| Battery Energy: | 38kw | Warranty: | Up To 5 Years |
| Discharge Temperature: | -20℃ - 60℃ (-4℉ - 140℉) | Charge Temperature: | 0℃ - 45℃ (32℉ - 113℉) |
| High Light: | high voltage lithium ion battery,commercial solar battery storage |
||

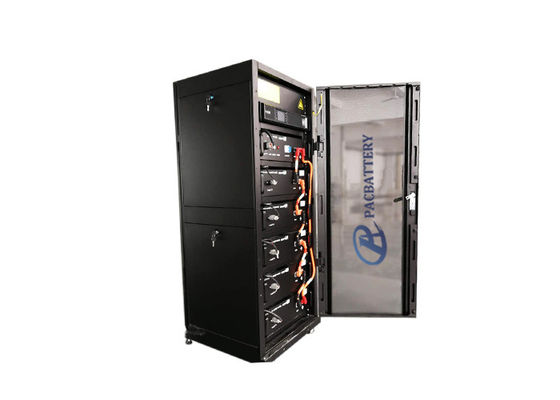

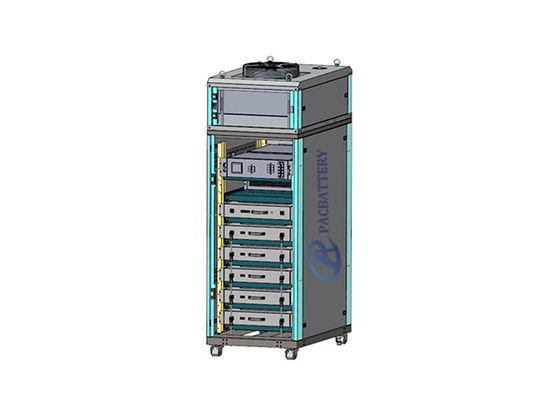

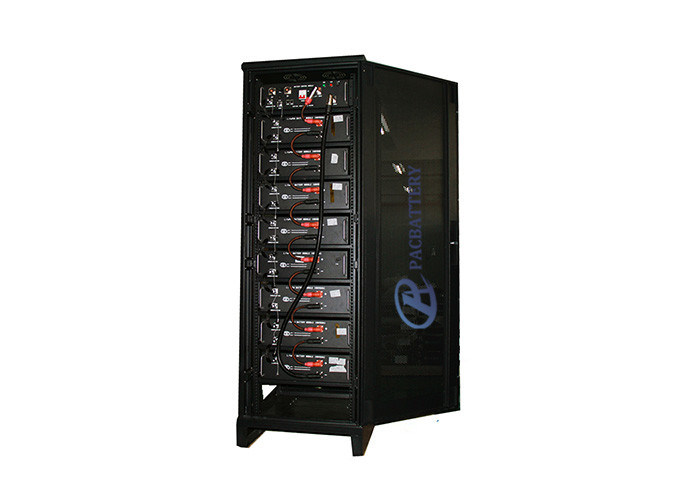

High Voltage Lithium Battery 384v 38kw For Residential Storage Environment Friendly
1. Quick details of High Voltage LiFePO4 384V 100Ah Battery
2. BMS functions of LiFePO4 battery 384v 100Ah
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit, temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) , simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ), full set of protection measures let it works well without any infulence from external unexpected accidents.
3. Specification of 384v 100Ah high voltage LiFePO4 battery(@Battery initial Temp25±5℃)
| NO | Items | Description | |
| Normal Specification | |||
| 1 | Nominal Voltage | 384V (LFP-120S) | |
| 2 | Normal Capacity | 100Ah | |
| 3 | Internal Resistance | ≤200mΩ @1kHz AC | |
| 4 | Communication protocol | It has RS485 and RS232 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| Standard Charge | |||
| 5 | Battery operation temperature range @charging | 0~45℃ | |
| 6 | Normal charge voltage | 438V | |
| 7 | Allowed MAX charge current | 80A@Battery initial Temp 25±5℃ | |
| 8 | Recommended charge current | ≤50A | |
| Standard Discharge | |||
| 9 | Battery operation temperature range @discharging | -20~60℃ | |
| 10 | Output voltage range | 300~438V | |
| 11 | Allowed discharge current | 80A | |
| 12 | Pulse discharge current | 150A withstand 3s | |
| 13 | Discharge cut-off voltage | 300~336V | |
| Mechanical Characteristics | |||
| 14 | Dimension | Length 600mm | |
| Width 600mm | |||
| Height: 1500mm | |||
| 15 | Weight | About: 432Kg | |
| Storage | |||
| 16 | Storage Temperature & Humidity Range | Short: within one month | -20~+ 60℃, 5~75%RH |
| Long term: above one month | -10~+45℃, 5~75%RH | ||
| 17 | Self-discharge rate | Residual capacity | ≤2% per month; |
| Reversible capacity | ≤1%per month; | ||
4. Measurement Apparatus of 38kw lithium battery system
(1) Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
(2)Voltmeter
Standard class specified in the national standard or more sensitive class having inner impedance not less than 10 KΩ/V.
(3)Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.
(4)Impedance Meter
Impedance shall be measured by a sinusoidal alternating current method(AC 1kHz LCR meter).
5. 48V battery pack BMS module assembly
6. Overview of finished 48V 100Ah LiFePO4 battery pack
7. Delivery of 384V residential storage battery module
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
