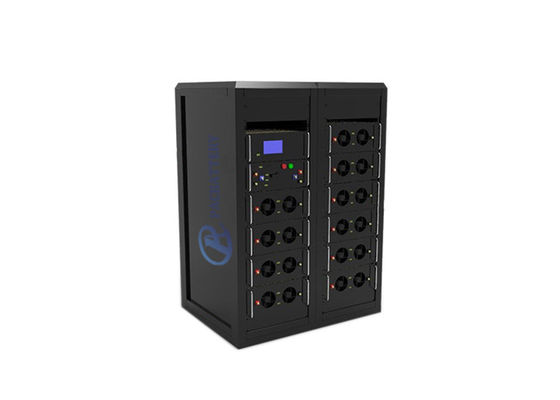

High Voltage DC Lithium Battery 173kwh , 480v DC Lithium Ion Battery System 360Ah

High Voltage DC Lithium Battery 173kwh , 480v DC Lithium Ion Battery System 360Ah

High Voltage DC Lithium Battery 173kwh , 480v DC Lithium Ion Battery System 360Ah

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ISO9001, ISO14001
Model Number: 173wh 480v 360Ah DC battery

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 480V Typical Capacity: 360Ah
Battery Combination: 150s6p Weight: About 1440kgs
Battery Application: Factory Power System, Telecom Base ESS Battery Communication: CANBus, RS485, RS232, Modbus
Warranty: Up To 10 Years Dimension: 2400*600*1200mm
High Light:

commercial solar battery storage

,

data center batteries

High voltage 173kwh 480V DC lithium ion battery system 360Ah for factory power system

1. Battery System Instruction

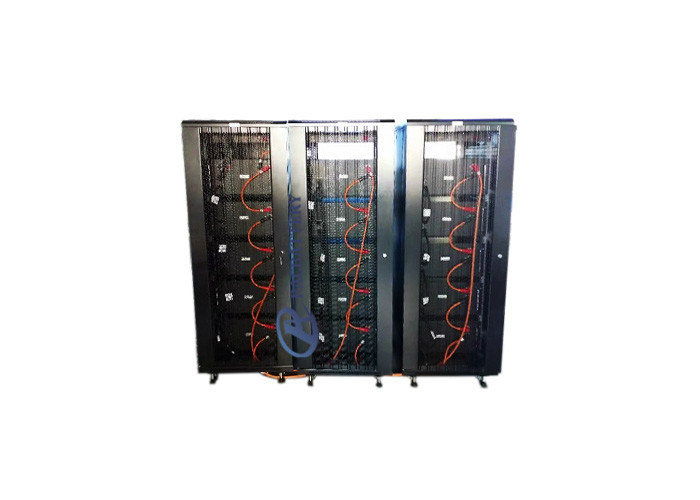

Super high voltage Large Battery system 173kWh is high power DC lithium iron phosphate battery system manufactured by PAC Technology Co.,Ltd, using prismatic reliable LiFePO4 battery cell, 150S60P assembled, to provide 173kW standby power for the factory. The single battery module is 48V 60Ah. The 480V 360ah system consists of 60 modules of 48V 60Ah batteries and 4 standard 19”cabinets, connected in series and in parallel to form the super high voltage battery system.



2. Application of 480V 360Ah

The high voltage lithium ion battery system is widely use in:

  • Industrial power system
  • Residential power system
  • Business data center
  • Telecom data ESS
  • Wind ESS
  • Solar storage system
  • Villiage power system
  • Islands power system

High Voltage DC Lithium Battery 173kwh , 480v DC Lithium Ion Battery System 360Ah 0
3. 150S6P 173kWh Lithium LiFePO4 Battery Pack Specification(@Battery initial Temp25±5)

No. Item General Parameter Remark
1.1 Description

High voltage 173kwh 480V DC lithium ion battery system 360Ah for factory power system


1.2 Cell Type 60Ah prismatic lifepo4 battery
1.3 Typical Capacity 360Ah
1.4 Typical Voltage 480V
1.5 Typical power 173kWh
1.6 Communication It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.

1.7 Battery combination 150S6P
1.8 Charging voltage 547.5V
1.9 End voltage 375~420V
2.0 Standard charge current 100A
2.1 Internal Impedance ≤150mΩ
2.2 Max. continuous charge current 180A
2.3 Standard discharge current 100A
2.4 Max. continuous discharge current 180A
2.5 Cycle life >2000 times
2.6 Weight 1440kgs
2.7 Module Dimension 442*450*222mm*20
2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃
2.9 Storage Temperature & Humidity Range Less than 1 month:-20℃~45℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:

15℃~35℃,45%RH~75%RH

3.0

Long time storage:

If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!


4. Measurement Apparatus of 480V 360Ah battery system

(1) Dimension Measuring Instrument

The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.

(2)Voltmeter

Standard class specified in the national standard or more sensitive class having inner impedance not less than 10 KΩ/V.

(3)Ammeter

Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.

(4)Impedance Meter

Impedance shall be measured by a sinusoidal alternating current method(AC 1kHz LCR meter).

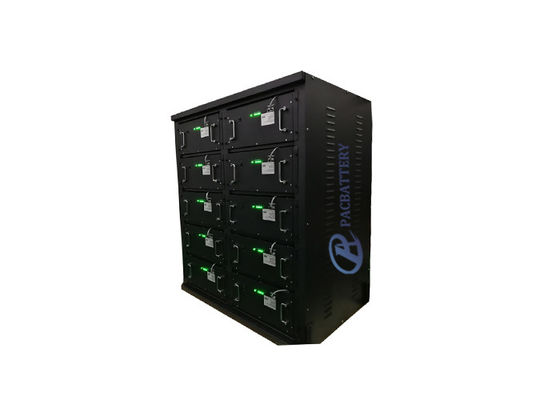

5. Case Structure of High Voltage Battery Module

High Voltage DC Lithium Battery 173kwh , 480v DC Lithium Ion Battery System 360Ah 1

No. Description Silk-screen Remark
1 connector INPUT P+ Output terminal
2 connector INPUT P- Output terminal
3 LCD screen LCD
4 CAN port CAN
5 connector OUTPUT P+
6 switch ON/OFF
7 connector OUTPUT P- Set the address
8 Handle
9 Bracket


6. Delivery of 173Wh DC lithium ion battery system

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

High Voltage DC Lithium Battery 173kwh , 480v DC Lithium Ion Battery System 360Ah 2

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
