Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System

Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System

Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System
Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System
Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ISO9001, ISO14001
Model Number: 108kwh high voltage 360v battery
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 360V Weight: About 900kgs
Protocol: RS485 And CANbus Battery Application: Telecom Backup System
Battery Cycle: Up To 6000 Times Battery Capacity: 300Ah
Single Battery Module: 24V 300Ah Battery Energy: 108kwh
High Light:

high voltage lithium ion battery

,

data center batteries

108kWh High voltage 360v Lithium lifepo4 battery pack 300Ah for telecom backup system

1. Quick details of 108kWh 360V 300Ah battery system

  • With CANBus and RS485 communication interface
  • With LCD screen
  • Using 24V 300Ah lifepo4 battery module in series to achieve high voltage 360V
  • With detection function, balancing, communicate and alarm function
  • Used in Telecom base ESS and data center


2. Specification of 108kwh 360V 300Ah Telecom backup battery(@Battery initial Temp25±5℃)











Battery pack








No. Item General Parameter Remark

1
Combination method
112S5P


2

Rated Capacity
Typical 300Ah Standard discharge after Standard charge(package)
Minimum 290Ah
3 Factory Voltage 362V-369.6V(40%~60%) Mean Operation Voltage

4
Voltage at end of Discharge
280-313.6V
Discharge Cut-off Voltage
5 Charging Voltage 408.8V




6



Internal Impedance



≤100mΩ
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times


7


Standard charge
Constant Current 100A Constant Voltage see No.5 0.02CA cut-off

Charge time : Approx 6 h

8

Standard discharge
Constant current:100A end voltage see NO.4


9
Maximum Continuous Charge Current

180A

Battery pack No. Item General Parameter Remark


10
Maximum Continuous Discharge Current

180A


11
Operation Temperature Range Charge 0~45℃ 60±25%R.H.
Bare Cell
Discharge -20~55℃



12


Storage Temperature Range
Less than 12 months : -10~35℃

60±25%R.H.
at the shipment state
less than 3 months: -10~45℃
Less than 7 day : -20~65℃
13 Single 24V module size 442*450*222mm Include case
14 High pressure box size 442*400*222mm Include case
15 Weight of a single 24V module About 60kg Include case



3. BMS Protect parameter of 360V 300Ah high voltage battery

Items Details Standard
Cell overcharge protection Overcharge detection voltage 3.65±0.025V
Overcharge detection delay time Typical:1.0s
Overcharge release voltage 3.34±0.02V
Cell over-discharge protection Over-discharge detection voltage 2.7±0.02V
Over-discharge detection delay time Typical:1.0s
Over-discharge release voltage 2.9±0.02V or charge release
Over-current protection discharge Over-current protection current1 180±10A
discharge Over-current detection delay time 1 5S
discharge Over-current protection current 2 ≥200A
discharge Over-current detection delay time 2 500ms
Charge OC protection current 350±10A
Short protection Short protection current 350±10A
Protection condition Load short
Detection delay time ≤300us
Protection release condition Charging release
Temperature(T) protection Charge high T protection 55±3℃
Charge high T recover 50±5℃
Discharge high T protection 65±5℃
Discharge high T recover 60±5℃
Charge low T protection ‘-5±2℃
Charge low T recover 0±5℃
Discharge low T protection -20±5℃
Discharge low T recover ’-15±5℃
Balance Balance threshold voltage 3.45V
Communication It has CANBus and RS485 standard communication interface, it can real-time
monitoring the capacity of battery bank, the voltage, current, environment
temperature, and charging/discharging current.
Alarm It has over-temperature, over charge, under-voltage, over-current, short circuit alarm function.

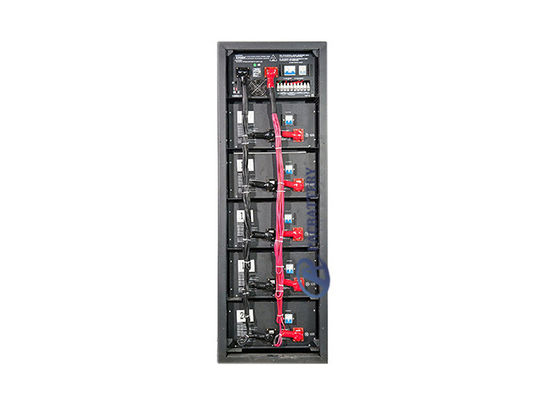

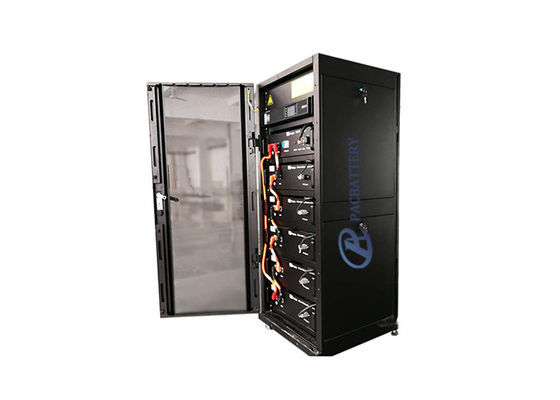

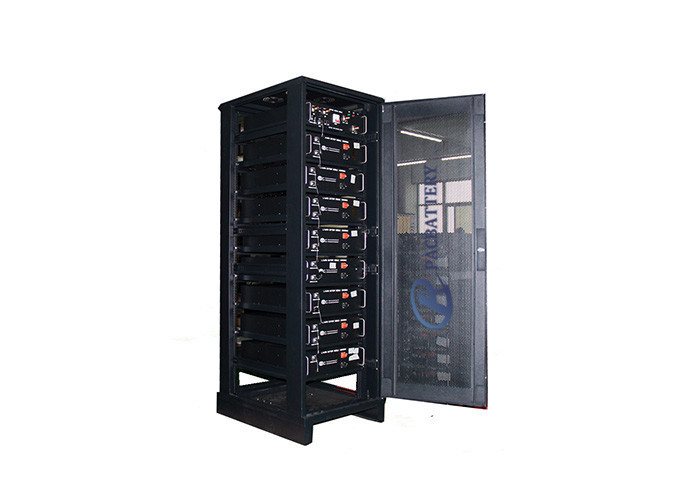

4. Case structure of 108kWh lithium Lifepo4 battery pack
Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System 0

No. Description Silk-screen
1 Module 24V 300Ah LiFePO4 Battery Module
2 Cabinet
3 connector INPUT P+ Input terminal
4 connector INPUT P- Input terminal
5 High voltage box
6 connector OUTPUT P+ Output terminal
7 CAN port D
8 connector OUTPUT P- Output terminal
9 Handle
10 Bracket
11 LCD screen LCD
12 switch OFF
13 switch ON


5. Delivery of 108kwh telecom battery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Lithium Lifepo4 Battery Pack , High Voltage Lithium Ion Battery For Telecom Backup System 1

6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
