| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | ISO9001, ISO14001 |
| Model Number: | 200kwh 460V lithium battery |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet. |
| Delivery Time: | 4weeks for samples; 6~8weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 460.8V | Typical Capacity: | 435Ah |
|---|---|---|---|
| Weight: | About 3000kgs | Battery Application: | Energy Storage System For School |
| Battery Energy: | 200kwh | OEM/ODM: | Acceptable |
| Working Temperature: | -20℃~55℃ | Battery Protection: | Smart Battery Management System |
| High Light: | commercial solar battery storage,data center batteries |
||

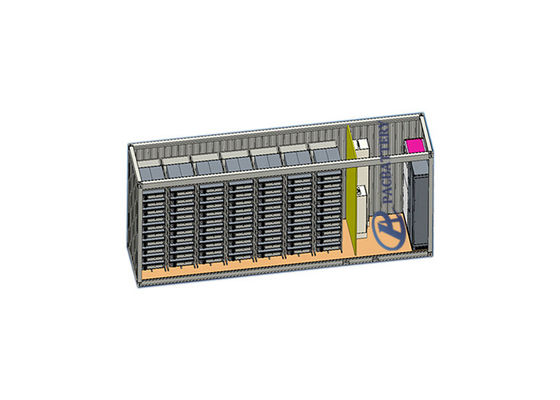

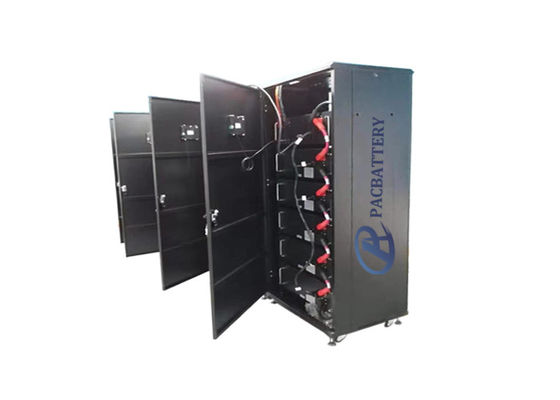

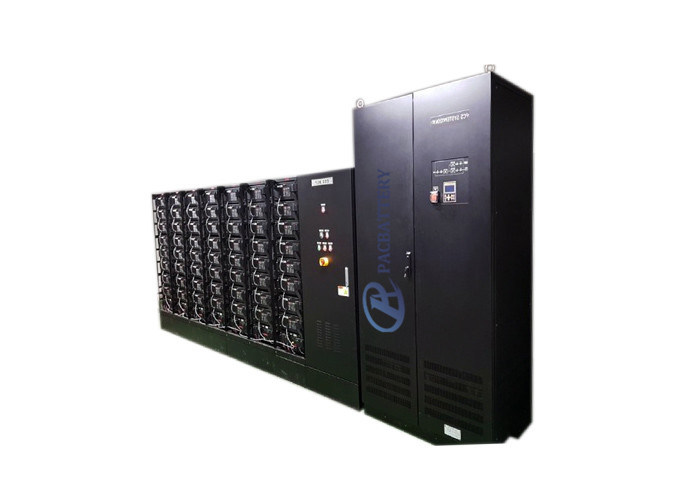

200kWh High voltage Large lithium battery 460V lifepo4 system for school energy storage
1. Description of super large 200kWh lithium battery systm
For commercial buildings such as schools, factories and petrol stations that require higher energy demand, solar PV system with battery storage can ensure business to maximize their energy independence and reduce peak power demand; For business without solar PV system, battery storage can ensure business to store energy from the grid at off peak price and use at peak time. This large battery system can provide power up to 200kw and high voltage of 460v.
2. Specification of 460V 435Ah high voltage battery(@Battery initial Temp25±5℃)
| NO | Items | Description | |
| Normal Specification | |||
| 1 | Nominal Voltage | 460.8V (LFP-144S) | |
| 2 | Normal Capacity | 435Ah | |
| 3 | Internal Resistance | ≤50mΩ @1kHz AC | |
| 4 | Communication protocol | It has CANBus and SNMP standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| Standard Charge | |||
| 5 | Battery operation temperature range @charging | 0~45℃ | |
| 6 | Normal charge voltage | 525.6V | |
| 7 | Allowed MAX charge current | 0.5C @Battery initial Temp 25±5℃ | |
| 8 | Recommended charge current | ≤144A | |
| Standard Discharge | |||
| 9 | Battery operation temperature range @discharging | -20~60℃ | |
| 10 | Output voltage range | 360~525V | |
| 11 | Allowed discharge current | 1C | |
| 12 | Pulse discharge current | 500A withstand 3s | |
| 13 | Discharge cut-off voltage | 360V | |
| Mechanical Characteristics | |||
| 14 | Weight | About: 3000Kg | |
| Storage | |||
| 15 | Storage Temperature & Humidity Range | Short: within one month | -20~+ 60℃, 5~75%RH |
| Long term: above one month | -10~+45℃, 5~75%RH | ||
| 16 | Self-discharge rate | Residual capacity | ≤2% per month; |
| Reversible capacity | ≤1%per month; | ||
3. Features of high voltage 460V battery system
4. Installation Precautions of 460V 200kwh large battery
(1) Prior to installation, unpacking to check the quantity of the parts and battery appearance.
(2) Install the hanger and handle and measure the battery voltage with a multimeter. The general factory voltage of the battery is 97V-99V.
(3) Prior to wiring, check the anode and cathode of the battery and the anode and cathode terminals shall not be connected reversely.
(4) During battery connection, please wear the protective gloves. When using such metal tools as torque wrench, please perform insulating packaging for them and two end of the metal tools such as torque wrench shall not contact the positive and negative terminals of the battery at the same time to avoid battery short-circuit.
(5) Before the battery is connected with the externally connected equipment, make the equipment in a disconnected state, check whether the connecting polarity of the battery and total voltage are correct, connect the battery anode with the equipment anode and battery cathode with the equipment cathode and fix the connecting line.
(6) During handling and placement, the battery must be handled gently. No dropping or impacting. The battery shall not be thrown or beaten to avoid damaging the battery or resulting in potential safety hazard.
(7) Do not touch the surface of the battery box with the sharp part of the tool to scratch or damage the battery box.
(8) Do not disassemble the battery box without authorization.
(9) Do not put any article made of the metal conductive material together with the battery or assemble it into the battery box.
5. Delivery of 200kwh 460V large lithium battery
• By Sea with Door to Door Service
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
