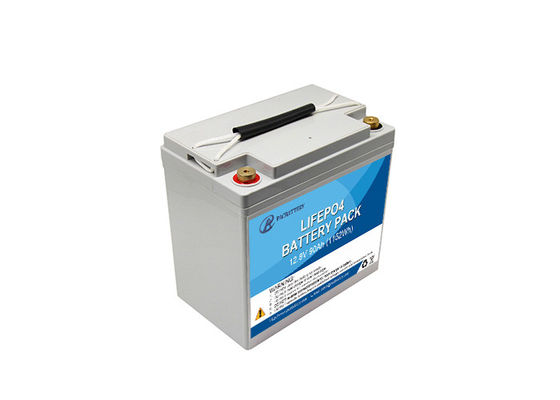

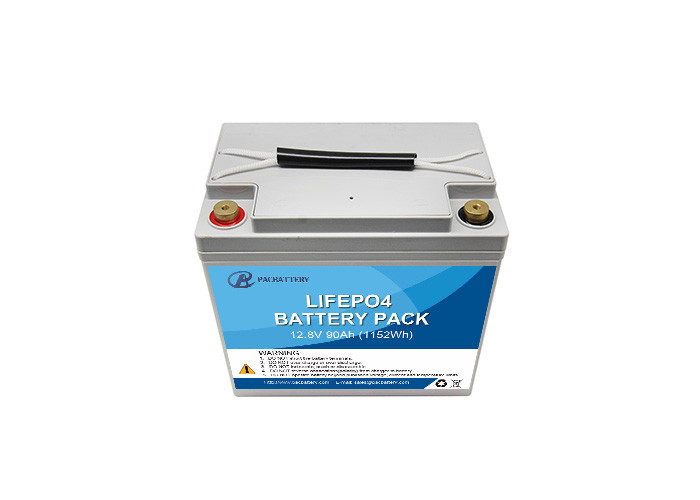

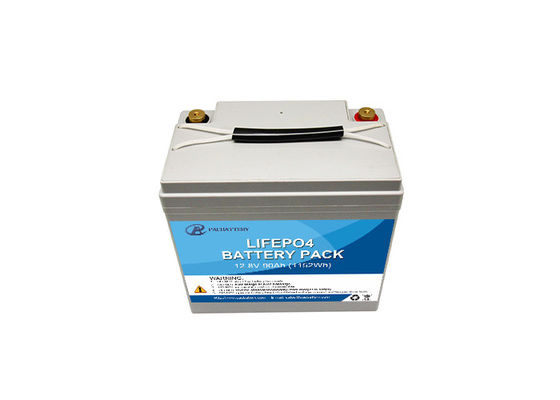

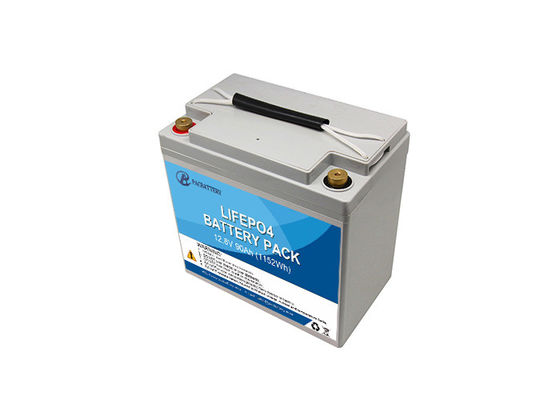

2000 Cycles Life 12v 90Ah Battery For Telecom Base Station , SLA Replacement Battery

2000 Cycles Life 12v 90Ah Battery For Telecom Base Station , SLA Replacement Battery

2000 Cycles Life 12v 90Ah Battery For Telecom Base Station , SLA Replacement Battery
2000 Cycles Life 12v 90Ah Battery For Telecom Base Station , SLA Replacement Battery
2000 Cycles Life 12v 90Ah Battery For Telecom Base Station , SLA Replacement Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ROHS, UN38.3, MSDS etc
Model Number: Telecom lithium battery 12v 90Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Nominal Energy: 1152wh Battery Cell Type: Cylindrical 3.2v Lifepo4 Battery
Typical Capacity: 90Ah Battery Application: Telecom Base Station
Case Material: ABS Cycle Life: More Than 2000 Times
Usage: Replace SLA Batteries Weight: 12.5kgs
Color: Grey Nominal Voltage: 12.8v
High Light:

lithium ion battery for telecom application

,

long life lithium battery

2000 cycles life Telecom lithium battery 12v 90Ah to replace SLA batteries

We can provide One-Stop Solution globally in the field of renewable energy, from cell, BMS/PCM to battery pack assembling.


1. Circuit Protection of 12v 90Ah Telecom lithium battery
The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.



2. Features of 12v 90Ah SLA Replacement battery in Telecom

  • Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature
  • Maintenance free
  • Internal cell balancing
  • Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery
  • Can be charged using most standard lead-acid charges (set)
  • Wider temperature range:-20℃~60℃



3. 4S15P 12V 90Ah Telecom battery Specification(@Battery initial Temp25±5℃)

NO Items Description
Normal Specification
1 Nominal Voltage 12.8V (LFP-4S)
2 Normal Capacity 90Ah
3 Internal Resistance ≤50mΩ @1kHz AC
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 14.6±0.2V
6 Recommended float charge voltage(for Standby use) 14±0.2V
7 Allowed MAX charge current 90A@Battery initial Temp 25±5℃
8 Recommended charge current ≤45A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 10.0~14.6V
11 Allowed discharge current 90A
12 Pulse discharge current 150A withstand 3s
13 Discharge cut-off voltage 10.0V
Mechanical Characteristics
14 Dimension Length 230±2mm
Width 138±2mm
Height 217±2mm
15 Weight About: 12±0.5Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~+ 60℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
17 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;


4. Working Environment of 12v 90Ah lithium battery

* This product should be used in a dry, clean and ventilated environment;

* Avoid using under the environment of exposure, heat, rain, damp, dust, and fog;

* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;

* Applicable to external environment temperature -5℃~45℃;

* Air relative humidity is not more than 85% (25℃± 5℃);


5. 12V 90Ah telecom lithium battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

2000 Cycles Life 12v 90Ah Battery For Telecom Base Station , SLA Replacement Battery 0


6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
