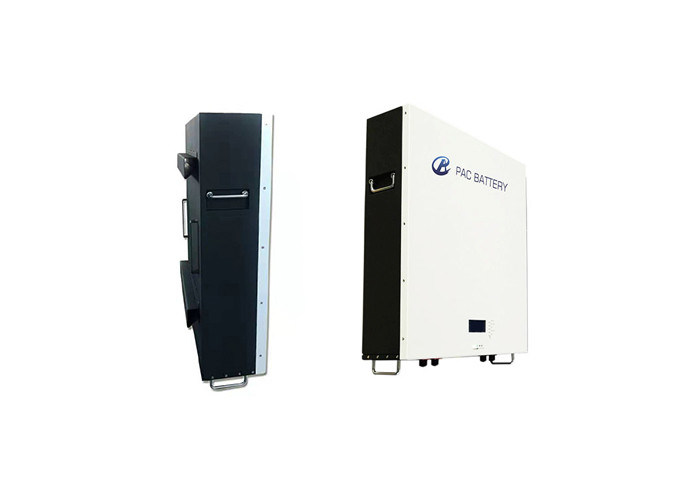

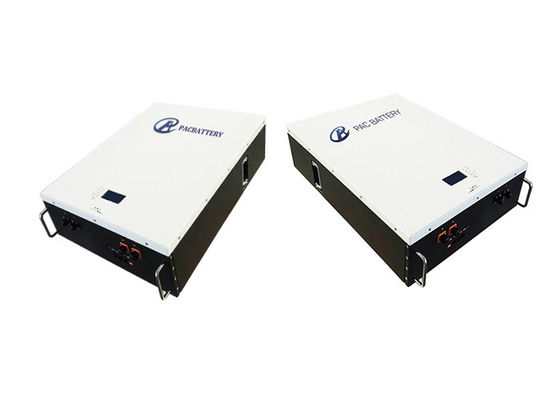

Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case

Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case

Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case
Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case
Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: IEC62619, MSDS, UN38.3 etc
Model Number: Wall type lithium battery 10kwh
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: Wall Type Typical Capacity: 200Ah
Housing Material: Metal Case Battery Application: Commercial Energy Storage Systems
Battery In Parallel: Available Nominal Voltage: 51.2v
Design: With LCD And LED Indicators Warranty: 5 Years
High Light:

home energy storage battery

,

energy storage system lithium ion battery

10kWh wall type commercial energy storage systems 51.2v 200Ah lithium battery

1. Safety precautions for 51.2V 200Ah LiFePO4 battery pack

  • It is very important and necessary to read the user manual carefully before installing or using the battery. Failure to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, death, or may damage the battery and the whole system.
  • The battery needs to be recharged within 12 hours, after fully discharging.
  • All battery terminals must be disconnected before maintenance.
  • Do not expose the battery to flammable or harsh chemicals or vapors.
  • Do not connect battery with PV solar wiring directly.



2. Specification of 51.2V 10kwh deep cycle Battery

Electrical CharacteristicsNominal Voltage51.2V
Nominal Capacity200Ah@0.2C
Energy10kWh
Internal Resistance≤40mΩ
Cycle Life>6000 Cycles @ 0.2C Charge/Discharge
Months Self Discharge≤3% per month at 25℃
Standard ChargeCharge Voltage58.4±0.2V
Charge Mode(CC/CV)At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then, changed continuously with constant voltage of 58.4V until the current was not more than 0.02C.
Charger Current20A
Max.Charge Current100A
Standard DischargeDischarge Current20A
Max. Continuous Current100A
Limiting current20A
Disxcharge Cut-off Voltage40-42.6V
EnvironmentalCharge Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust ResistanceIP54
MechanicalCell & Method16S4P
Plastic CaseMetal
Dimension(L*W*H*TH)650*485*180mm
WeightApprox. 98kgs
Communication interfaceRS485, RS232


3. Before connecting of 10kWh commercial energy storage battery

  • After unpacking, please check the battery and packing list first, if the battery is damaged or spare parts are missing, please contact US.
  • Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off mode;
  • Wiring must be correct, do not mix-connect the positive and negative cables, and ensure no short circuit with the external device;
  • It is prohibited to connect the battery with AC power directly;
  • The embedded BMS in the battery is designed for 48VDC, please DO NOT connect battery in series;
  • It is prohibited to connect the battery with different type of battery;
  • Please ensure the electrical parameters of battery system are compatible to inverter;
  • Keep the battery away from fire or water.


4. Parallel use of 10kwh ESS lifepo4 battery
When the battery needs to be used in parallel, the maximum connection is 10units, but we recommend to use 2-4 units according to application. The application needs power and communication connections as below, choose suitable accessories.
5. Power connection of Wall type Lithium Battery 51.2V 200Ah
Let’s take 2 batteries for example, use an additional junction box (not included in the standard pack) to combine the power flow of both batteries:
Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case 0

  1. First refer to chart below to define master level and slave level battery
  2. Connect master battery’s positive pole to J1 and negative pole to J3 of the junction box
  3. Connect slave battery’s positive pole to J2and negative pole to J4
  4. Connect J5 with inverter’s positive pole
  5. Connect J6 with inverter’s negative pole
  6. Add suitable isolators when necessary


Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case 1
6. Communication connection of 10kWh wall type lithium battery
There needs to be cascade communication with master level and slave level settings. The master level and slave level has different address.
Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case 2


7. 51.2V 200Ah Lithium Battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Commercial Energy Storage Lithium Battery 51.2v 200Ah 10kWh Wall Type Metal Case 3


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
