Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/ODM |
Certification: | CE, UL, UN38.3, MSDS |
Model Number: | PAC Battery 12.8v 66Ah |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 7-20 days for samples, 15-35 days for mass production |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100,000pcs/day |
Type: | 12V LiFePO4 Battery | Cell Model: | IFR32700-3.2V-6Ah |
---|---|---|---|
Nominal Voltage: | 12.8V | Nominal Capacity: | 66Ah |
Items: | 12.8v 66Ah Battery Customized Size | Application: | TV, Robot |
Case: | Blue PVC Tube | Cycle: | ≥2000 Times |
Oem/odm: | Acceptable | Dimension: | 300*200*75mm |
High Light: | soft battery pack,cylindrical lithium ion battery pack |

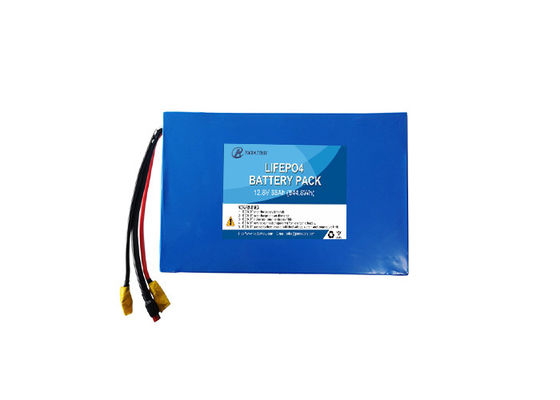

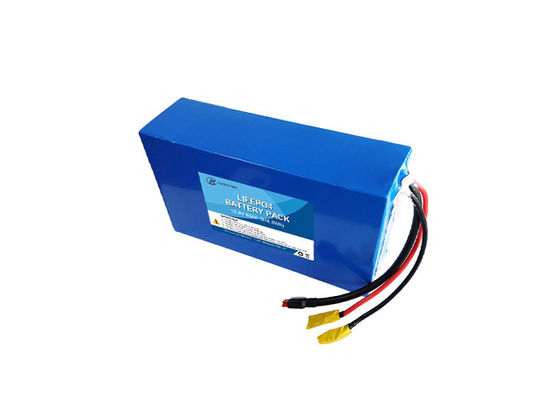

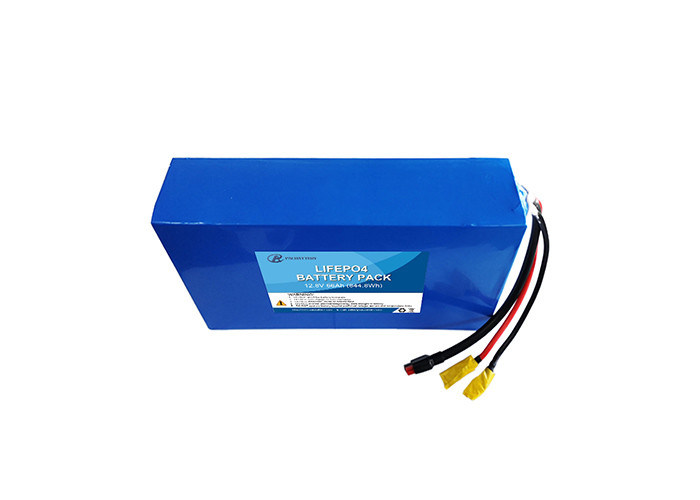

PAC Battery customized size LiFePO4 lithium pack 12.8v 66Ah cylindrical cells
1. Features of 12.8V 66Ah PAC Battery
2. Technical information of 12.8V LiFePO4 battery pack 66Ah:
No.
|
Item
|
General Parameter
|
1.1
|
Description
|
PAC Battery customized size LiFePO4 lithium pack 12.8v 66Ah cylindrical cells
|
1.2
|
Cell Model
|
32700-6000mAh, 3.2Vdc
|
1.3
|
Typical Capacity
|
66Ah |
1.4
|
Typical Voltage
|
12.8V
|
1.5
|
End of Charge Voltage
|
14.6V
|
1.6
|
Charge Current
|
0.2C
|
1.7
|
Charging time
|
5-6 Hours
|
1.8
|
End discharge Voltage
|
10.0V
|
1.9
|
Max continuous charge current
|
30A
|
2
|
Maximum Peak Discharging Current
|
66A
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
2.2
|
Over-Current Discharge Protection
|
100A
|
2.3
|
Short circuit protection
|
With protection built in
|
2.4
|
Dimension
|
300*200*75mm |
2.5
|
Weight
|
6.5kgs
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Note: If above specification can't satisfy you, please contact us for your detailed requirement.
We could make customized Deep cycle Lithium Iron Phosphate Battery based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..
3. Battery operation instruction
3.1 Charging
3.2 Discharging current
3.3 Electric discharge temperature
3.4 Over-discharges
3.5 Storing the Batteries
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
