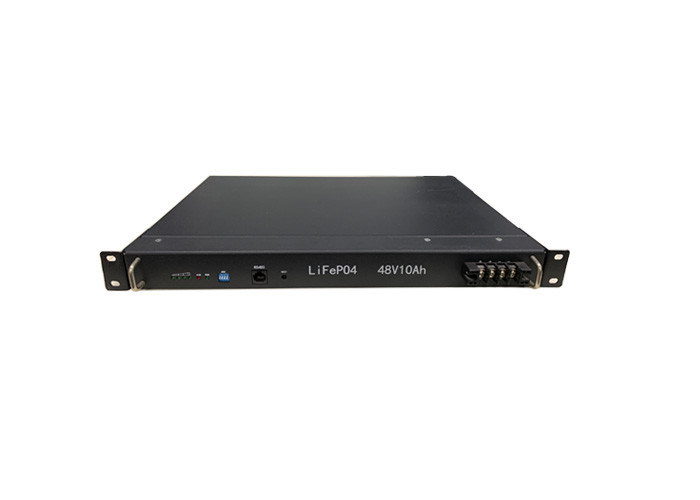

LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication

LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication

LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication
LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ROHS, UN38.3, MSDS etc
Model Number: 48V 10Ah 2U LiFePO4 Battery

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Model: 4810 Battery Cell Type: LiFePO4 Prismatic Battery
Typical Capacity: 50Ah Battery Application: Solar Energy, Telecommunication
Battery Protection: Smart BMS Protocol: RS232, RS485, CAN
Second Protection: Air Switch Dimension: Customized
High Light:

hybrid lithium battery

,

energy storage system lithium ion battery

48V 10Ah LiFePO4 Battery for Solar Energy Storage , Battery for Telecommunication
We can provide One-Stop Solution globally in the field of renewable energy, from cell, BMS/PCM to battery pack assembling.

1. Instruction of 48V 10Ah 1U LiFePO4 Battery

The 48v Telecom lithium battery pack 10Ah is using high safety Lithium iron phosphate battery cell with capacity 10Ah, 15S1P assembled. The battery pack dimension is 482*44*360mm and aslo can be customized. Built with smart BMS and IO link protocol, the customer can check and monitor the battery pack status in real time. We can also make the battery pack with other protocols, such as RS485, RS232, SMBUS, CANBUS, I2C etc. Please contact us if you have any inquiries. We work at 24/7.



2. Application of 48V 10Ah LiFePO4 battery pack

The application of 48v 10Ah battery with IO is very wide, such as Telecom base station, computer server center, business base center, 4G/5G base station etc. It is specially suitable for remote areas.




3. 15S1P 48V 10Ah Telecom battery Specification(@Battery initial Temp25±5℃)


Lithium ion phosphate battery

pack

Combination method 1P16S
Minimal capacity(0.5C) 10Ah
Nominal voltage 48V
Max. charge voltage 58.4V
Discharge cut-off voltage 40V
Max Charge current 5A
Max Working current 10A
Standard charge current 2.5A
Standard discharge current 5A
Pack Impedance standard ≤100mW
Weight (Approx.) ≈13Kg
Max. dimension(L×W×H)(mm) ≤ 133*482*420mm



Operating temperature

Charge temperature 0℃~45℃
Discharge temperature -20℃~55℃


5. 48V 10Ah 1U LiFePO4 Battery for Solar Energy, Communication, UPS, Network Power:
Energy Storage 25Ah Lithium Iron Phosphate Deep Cycle Battery 12V SLA Replacement

> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage

> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters

> Electric Golf Car > Electric vehicles > Electric motorcycles

> Electric forklifts > Electric boats, etc...


5. Operation principle of 48v 10Ah Telecom battery pack

Input AC 220V, after rectification power module, output DC 48V. When the power grid normal, the battery will supply power according to system requirement, and to be charged at same time; when power off, the battery will supply energy, to make sure the DC power system working normally, to realize uninterruptible power supply. The power supply has second disconnection function, when the battery voltage is low, the battery output would be cut off to protect battery.

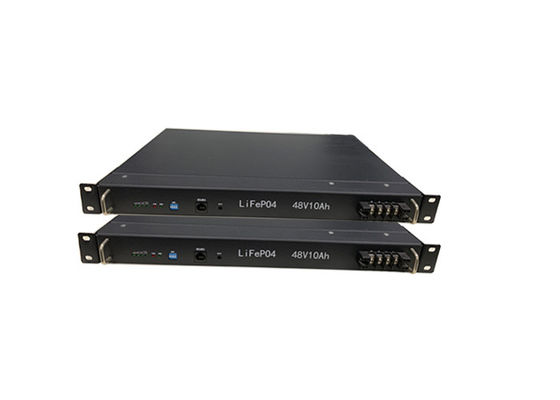

6. Package of 48V 10Ah battery pack
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.
LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication 1
LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication 2


7. 48V 50Ah telecom lithium batteryDelivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

LiFePO4 Energy Storage Lithium Battery 48V 10Ah Air Switch For Telecommunication 3


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
