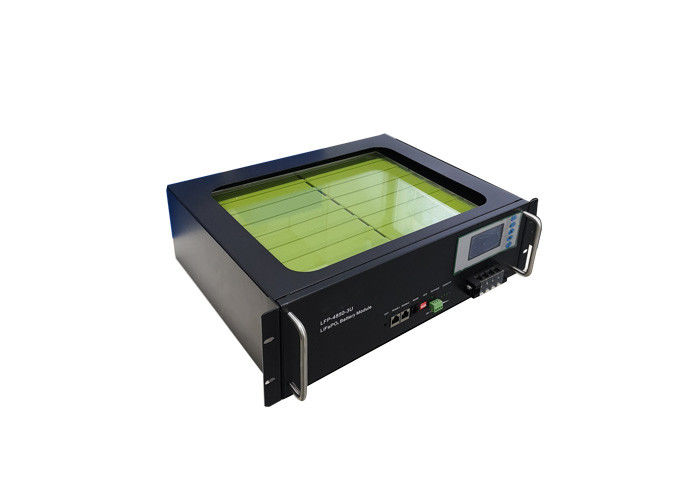

Metal Case 3U Energy Storage Lithium Battery 48V 50Ah 4000 Times Long Cycle Life

Metal Case 3U Energy Storage Lithium Battery 48V 50Ah 4000 Times Long Cycle Life

Metal Case 3U Energy Storage Lithium Battery 48V 50Ah 4000 Times Long Cycle Life
Metal Case 3U Energy Storage Lithium Battery 48V 50Ah 4000 Times Long Cycle Life

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: UL, IEC62133, UN38.3, MSDS, ISO9001 etc
Model Number: Telecom Battery 48V 50Ah

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: Deep Cycle Battery, High Safety Typical Voltage: 48V
Battery Type: High Safety LiFePO4 Battery Typical Capacity: 50Ah
Housing Material: Metal Case Weight: About 32kgs
Battery Application: Solar Energy Storage Protocol: RS232, RS485, CAN
Keywords: Telecom Storage LiFePO4 Battery, 48V 50ah Battery, Battery For Base Station Standard Discharge Current: 0.2C
Battery Color: Black Standard Charge Current: 0.2C
Logo: Can Be Customized On Battery Case Battery Cycle: ≥4000 (100% DOD)
Warranty: 3 Years Dimension: 133*482*420mm
High Light:

hybrid lithium battery

,

home energy storage battery

48V 50Ah 3U Energy Storage Lithium Battery 4000 Times Long Cycle Life

1. 48V 50Ah Telecom Lithium Battery:

Telecom Storage LiFePO4 Battery is high energy density lithium iron phosphate battery pack manufactured by PAC Technology Co.,Ltd, using deep cycle prismatic  battery cell, 15S1P assembled, to provide 2400Wh power.



2. 48V 50Ah LiFePO4 battery Application

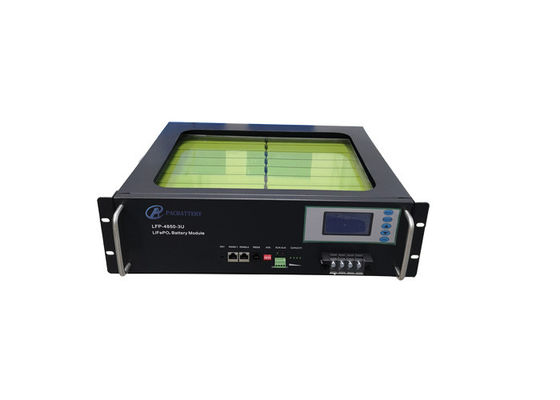

Metal Case 3U Energy Storage Lithium Battery 48V 50Ah 4000 Times Long Cycle Life 0

Deep cycle lithium ion Battery, widely use for

  • 5G Base Station
  • Energy Storage System
  • Starter Battery
  • RV Camper/Caraven Battery
  • UPS Storage Battery
  • Forklift Battery
  • Golf Trolley/Cart Battery
  • EV Battery
  • Outdoor Portable Power Battery
  • Marine Battey
  • Battery Cell Application
  • Solar & Wind power system
  • Solar street light



3. 15S1P 48V 50Ah LiFePO4 Battery Pack Specification(@Battery initial Temp25±5)

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!

No. Item General Parameter
1.1 Description LiFePO4 48v battery pack 50Ah RS485 CANbus communication for 5G base station
1.2 Cell Type prismatic cell
1.3 Typical Capacity 50Ah
1.4 Typical Voltage 48V
1.5 End of Charge Voltage 54V
1.6 Charge Current 0.2C
1.7 Charging time 5-6 Hours
1.8 Over-Charge Voltage Protection cell 3.6V
1.9 Max continuous charge current 25A
2.0 Maximum Continuous Discharging Current 50A
2.1 Over-discharge Voltage Protection cell 2.5V
2.2 Over-Current Discharge Protection 100A
2.3 Short circuit protection With protection
2.4 Dimension 442*385*132mm
2.5 Weight about 32kgs
2.6 Operation Temperature Range Charge 0~60 C, Discharge -20~60 C
2.7 Storage Temperature & Humidity Range Less than 1 month:-20℃~45℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:

15℃~35℃,45%RH~75%RH

2.8

Long time storage:

If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.


4. Advantage of LiFePO4 battery, comparing to Lead acid battery:

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.


5. Features of 3U rack 48V 50Ah Telecom Storage Battery

  • Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions
  • Built-in automatic protection for over-charge, over discharge, over
  • current and over temperature
  • Maintenance free
  • Internal cell balancing
  • Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery
  • Can be charged using most standard lead-acid charges (set)
  • Wider temperature range:-20℃~60℃


6. Warning of Lithium Telecom Storage LiFePO4 battery

1. DO NOT short the battery terminals.
2. DO NOT over charge or over discharge.
3. DO NOT incinerate, crush or disassemble.
4. DO NOT reverse connections(polarity) from charger to battery.
5. DO NOT operate battery beyond published voltage, current and temperature limits. ​


7. 48V 50Ah 5G Base Station LiFePO4 battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

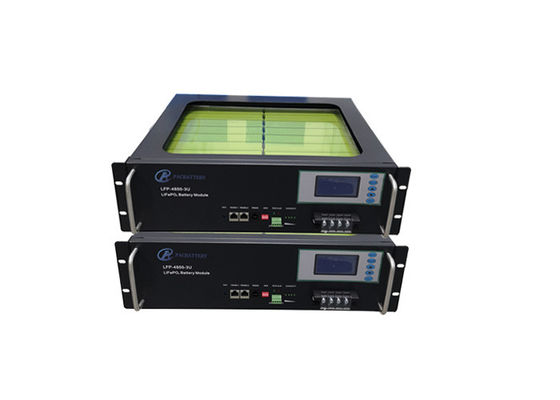

Metal Case 3U Energy Storage Lithium Battery 48V 50Ah 4000 Times Long Cycle Life 1


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
