| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | UL, UN38.3, MSDS, ISO9001, ISO14001 etc. |
| Model Number: | 720V 50Ah 36kWh |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet. |
| Delivery Time: | 4weeks for samples; 6~8weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 720V | Battery Type: | High Safety LiFePO4 Battery |
|---|---|---|---|
| Typical Capacity: | 50Ah | Module Quantity: | 15pcs 48V 50Ah Modules In Series |
| Weight: | About 400kgs | Battery Application: | Data Center, Commercial ESS, 5G Base Station |
| Battery Protection: | Smart BMS Module | Communication: | CANBus, RS485, RS232, Modbus |
| Depth Of Discharge: | 90% | Battery Efficiency: | 96% |
| Design Life: | More Than 10 Years | Dimension: | 600*505*2130mm |
| High Light: | commercial solar battery storage,data center batteries |
||

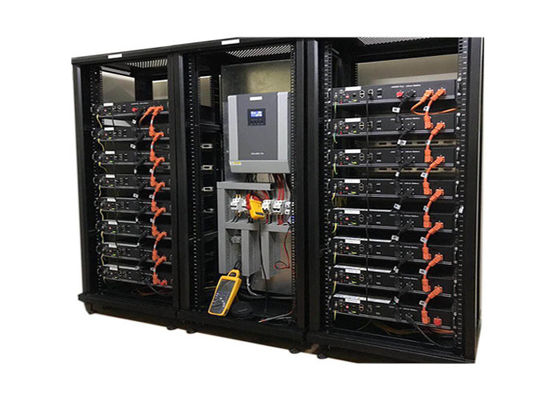

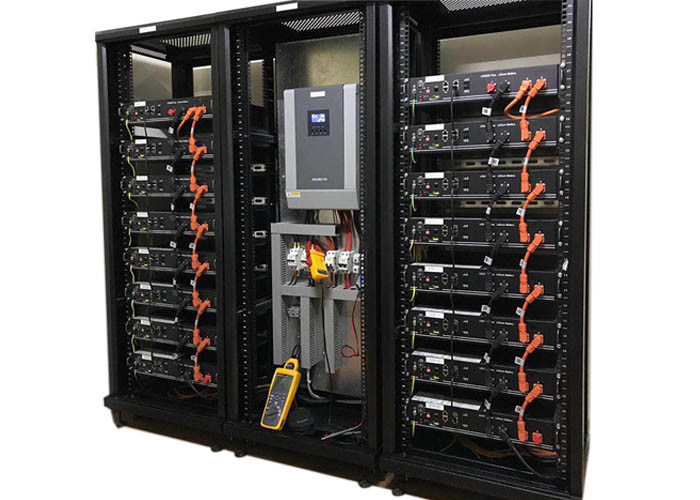

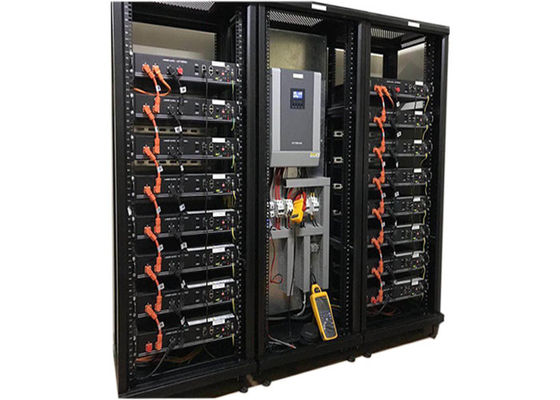

720V 36kWh high voltage lithium battery 50Ah energy storage system for data center
1. Key features of 36kWh 720V high voltage battery system
2. 36kwh 720V LiFePO4 battery system Application
Long lifespan and high safety Lifepo4 Battery, widely use for
3. 720V 50Ah 225S1P solar LiFePO4 Battery Pack Specification(@Battery initial Temp25±5℃)
| No. | Item | General Parameter | Remark |
| 1.1 | Description |
720V 36kWh high voltage lithium battery 50Ah energy storage system for data center |
|
| 1.2 | Cell Type | prismatic high safety LiFePO4 battery cell | |
| 1.3 | Typical Capacity | 50Ah | |
| 1.4 | Typical Voltage | 720V | |
| 1.5 | Typical power | 36kWh | |
| 1.6 | Communication | It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| 1.7 | Battery combination | 225S1P | |
| 1.8 | Charging voltage | 821V | |
| 1.9 | End voltage | 450~562.5V | |
| 2.0 | Standard charge current | 10A | |
| 2.1 | Depth of discharge | 90% | |
| 2.2 | Max. continuous charge current | 50A | |
| 2.3 | Standard discharge current | 10A | |
| 2.4 | Max. continuous discharge current | 50A | |
| 2.5 | Cycle life | ＞2000 times | |
| 2.6 | Weight | 400kgs | |
| 2.7 | Dimension | 600*505*2130mm or customized | |
| 2.8 | Operation Temperature Range | Charge 0~45℃, Discharge -20~55℃ | |
| 2.9 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH | |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | |||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
|||
| 3.0 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
||
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
4. Lithium Battery Pack Operation Instruction
5. Case Structure of High Voltage Battery Module
| No. | Description | Silk-screen Remark | |
| 1 | connector | INPUT P+ | Output terminal |
| 2 | connector | INPUT P- | Output terminal |
| 3 | LCD screen | LCD | |
| 4 | CAN port | CAN | |
| 5 | connector | OUTPUT P+ | |
| 6 | switch | ON/OFF | |
| 7 | connector | OUTPUT P- | Set the address |
| 8 | Handle | ||
| 9 | Bracket | ||
6. Rechargeable Lithium ion LifePO4 Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
