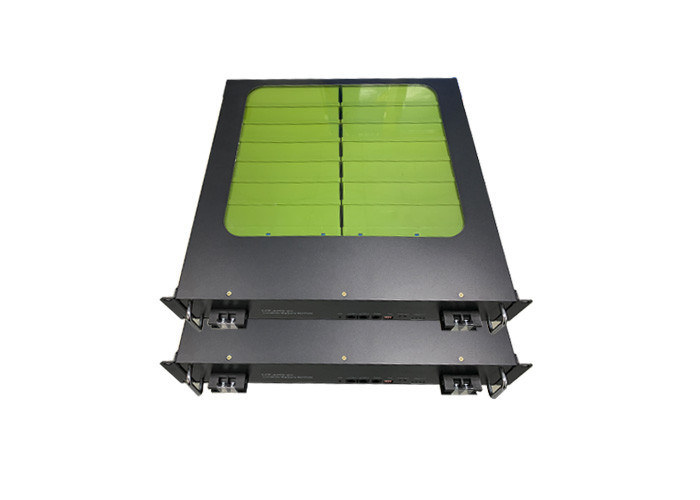

Long Cycle Life Telecom Lithium Battery , 48V 50Ah LiFePO4 Prismatic Battery

Long Cycle Life Telecom Lithium Battery , 48V 50Ah LiFePO4 Prismatic Battery

Long Cycle Life Telecom Lithium Battery , 48V 50Ah LiFePO4 Prismatic Battery
Long Cycle Life Telecom Lithium Battery , 48V 50Ah LiFePO4 Prismatic Battery
Long Cycle Life Telecom Lithium Battery , 48V 50Ah LiFePO4 Prismatic Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ROHS, UN38.3, MSDS etc
Model Number: 48V 50Ah 2U LiFePO4 Battery
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Nominal Energy: 2400Wh Battery Cell Type: LiFePO4 Prismatic Battery
Typical Capacity: 50Ah Battery Application: Solar Energy,communication,UPS,network Power
Battery Protection: Smart BMS Protocol: RS232, RS485, CAN
Second Protection: Air Switch Dimension: Customized
High Light:

lithium ion battery for telecom application

,

long life lithium battery

Long Cycle Life Telecom Lithium Battery 48V 50Ah, LiFePO4 Battery 48V 50Ah
We can provide One-Stop Solution globally in the field of renewable energy, from cell, BMS/PCM to battery pack assembling.

1. Instruction of 48V 50Ah 2U LiFePO4 Battery

The 48v Telecom lithium battery pack 50Ah is using high safety Lithium iron phosphate battery cell with capacity 50Ah, 15S1P assembled. The battery pack dimension is 482*133*360mm and aslo can be customized. Built with smart BMS and IO link protocol, the customer can check and monitor the battery pack status in real time. We can also make the battery pack with other protocols, such as RS485, RS232, SMBUS, CANBUS, I2C etc. Please contact us if you have any inquiries. We work at 24/7.



2. Application of 48v 50Ah LiFePO4 battery pack

The application of 48v 50Ah battery with IO is very wide, such as Telecom base station, computer server center, business base center, 4G/5G base station etc. It is specially suitable for remote areas.


3. 15S1P 48V 50Ah Telecom battery Specification(@Battery initial Temp25±5℃)

NO Items Description
Normal Specification
1 Nominal Voltage 48V (LFP-15S)
2 Normal Capacity 50Ah
3 Internal Resistance ≤50mΩ @1kHz AC
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 54.75±0.3V
6 Recommended float charge voltage(for Standby use) 51.75±0.3V
7 Allowed MAX charge current 50A@Battery initial Temp 25±5℃
8 Recommended charge current ≤25A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 37.5~54.75V
11 Allowed discharge current 50A
12 Pulse discharge current 200A withstand 3s
13 Discharge cut-off voltage 37.5V
Mechanical Characteristics
14 Dimension Length 482±2mm
Width 133±2mm
Height 360±2mm
15 Weight About: 28±0.5Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~+ 60℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
17 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;


5. 48V 50Ah 2U LiFePO4 Battery for Solar Energy, Communication, UPS, Network Power:
Energy Storage 25Ah Lithium Iron Phosphate Deep Cycle Battery 12V SLA Replacement

> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage

> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters

> Electric Golf Car > Electric vehicles > Electric motorcycles

> Electric forklifts > Electric boats, etc...


5. Operation principle of 48v 50Ah Telecom battery pack

Input AC 220V, after rectification power module, output DC 48V. When the power grid normal, the battery will supply power according to system requirement, and to be charged at same time; when power off, the battery will supply energy, to make sure the DC power system working normally, to realize uninterruptible power supply. The power supply has second disconnection function, when the battery voltage is low, the battery output would be cut off to protect battery.


6. Package of 48V 50Ah battery pack
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.




7. 48V 50Ah telecom lithium batteryDelivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Long Cycle Life Telecom Lithium Battery , 48V 50Ah LiFePO4 Prismatic Battery 1


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
