| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | UL, UN38.3, MSDS, ISO9001, ISO14001 etc. |
| Model Number: | 576V 74Ah |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet. |
| Delivery Time: | 4weeks for samples; 6~8weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 576V | Battery Type: | Li Ion Battery |
|---|---|---|---|
| Typical Capacity: | 74Ah | System Capacity: | 42.64kWh |
| Weight: | About 450kgs | Battery Application: | Factory, Hospital, Farm, Plant, Villa |
| Battery Protection: | Smart BMS Module | Communication: | CANBus, RS485, RS232, Modbus |
| Depth Of Discharge: | 90% | Battery Efficiency: | 96% |
| Design Life: | More Than 10 Years | Dimension: | 600*505*2130mm |

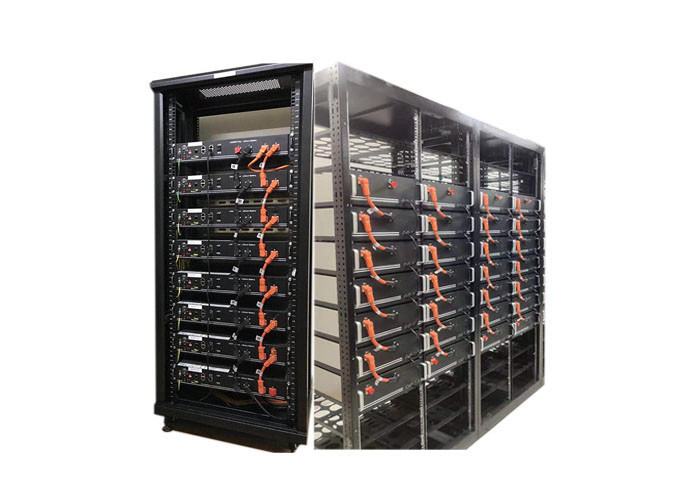

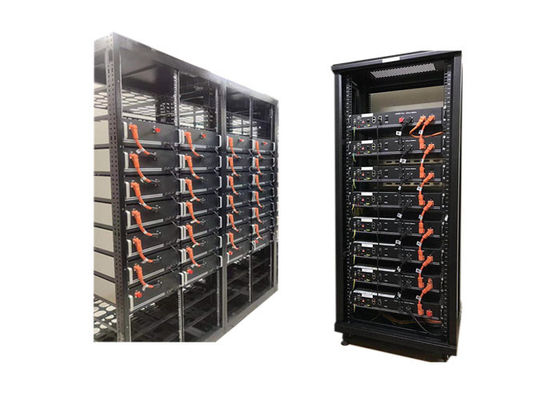

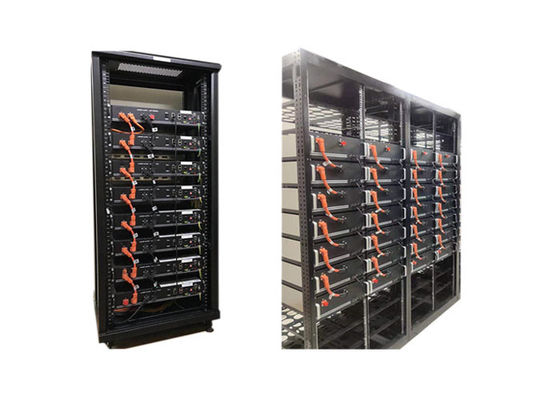

High Voltage lithium battery 576V 74Ah energy storage system for factory and hospital
1. Key features of 42.62kWh 576V 74Ah high voltage battery system
2. Application of High Voltage lithium battery 576V 74Ah
Long lifespan and high safety Lifepo4 Battery, widely use for
3. 576V 74Ah 180S1P Energy storage system battery Specification(@Battery initial Temp25±5℃)
| No. | Item | General Parameter | Remark |
| 1.1 | Description |
High Voltage lithium battery 576V 74Ah energy storage system for factory and hospital |
|
| 1.2 | Cell Type | prismatic high safety LiFePO4 battery cell | |
| 1.3 | Typical Capacity | 74Ah | |
| 1.4 | Typical Voltage | 576V | |
| 1.5 | Typical power | 42.62kWh | |
| 1.6 | Communication | It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| 1.7 | Battery combination | 180S1P | |
| 1.8 | Charging voltage | 648V | |
| 1.9 | End voltage | 450~531V | |
| 2.0 | Standard charge current | 21A | |
| 2.1 | Depth of discharge | 90% | |
| 2.2 | Max. continuous charge current | 37A | |
| 2.3 | Standard discharge current | 21A | |
| 2.4 | Max. continuous discharge current | 74A | |
| 2.5 | Cycle life | ＞2000 times | |
| 2.6 | Weight | 450kgs | |
| 2.7 | Dimension | 600*505*2130mm or customized | |
| 2.8 | Operation Temperature Range | Charge 0~45℃, Discharge -20~55℃ | |
| 2.9 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH | |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | |||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
|||
| 3.0 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
||
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
4.PAC Battery Advantages:
We are reliable and professional rechargeable battery manufacturer. We have R&D team.
*Abundant products
Professional manufacturer of li-ion, Li-polymer, Lifepo4 rechargeable batteries. Also battery packs, portable electric powers, other accessories consumer and industrial applications.
*Best service
1.Provide OEM service, customized design is available.
2.Service on time, response your email within 24 hours.
3.Delivery on time.
4.Trial order or sample order is available.
24 hours customer service, waiting for your inquiry!
5. Case Structure of High Voltage Battery Module
| No. | Description | Silk-screen Remark | |
| 1 | connector | INPUT P+ | Output terminal |
| 2 | connector | INPUT P- | Output terminal |
| 3 | LCD screen | LCD | |
| 4 | CAN port | CAN | |
| 5 | connector | OUTPUT P+ | |
| 6 | switch | ON/OFF | |
| 7 | connector | OUTPUT P- | Set the address |
| 8 | Handle | ||
| 9 | Bracket | ||
6. Rechargeable Lithium ion LifePO4 Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
