| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | CE, UN38.3, MSDS, ISO9001, ISO14001 etc. |
| Model Number: | 336V 50Ah |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet. |
| Delivery Time: | 4weeks for samples; 6~8weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 336V | Battery Type: | Long Lifespan Lithium Battery |
|---|---|---|---|
| Typical Capacity: | 50Ah | System Capacity: | 16.8kWh |
| Weight: | About 250kgs | Battery Application: | Factory, Hospital, Farm, Plant, Villa |
| Battery Protection: | Smart BMS Module | Communication: | CANBus, RS485, RS232, Modbus |
| Depth Of Discharge: | 90% | Battery Efficiency: | 96% |
| Design Life: | More Than 10 Years | Dimension: | 600*505*1300mm |

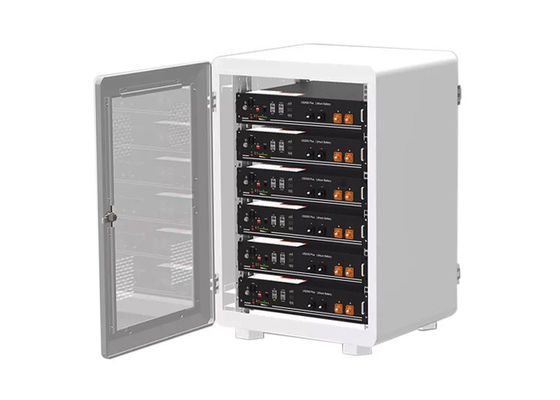

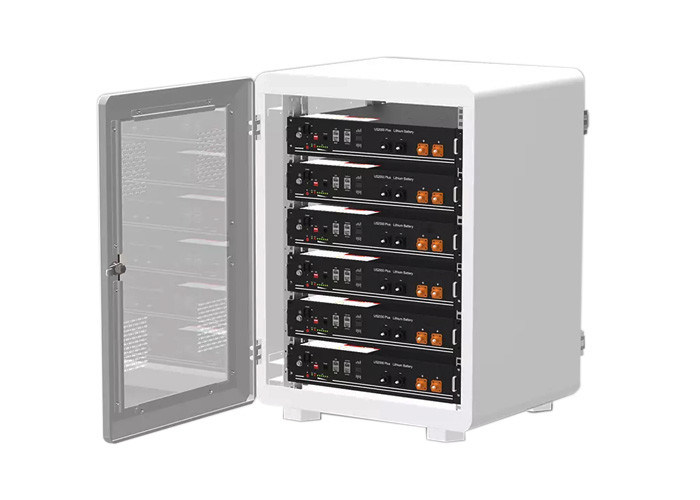

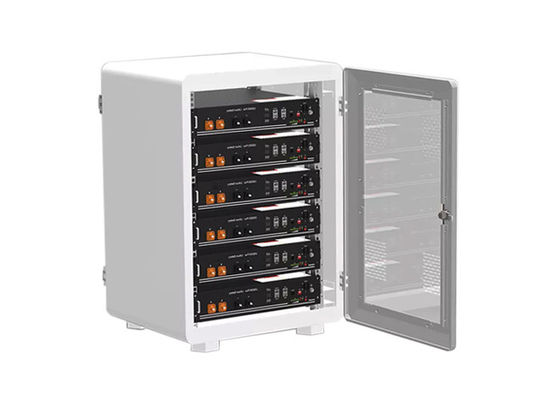

336v high voltage lithium li ion battery module 50Ah for farm solar system
1. Key features of 16.8kWh 336v high voltage lithium battery 50Ah
2. Advantage of using high voltage battery system
For commercial buildings such as schools, factories and petrol stations that require higher energy demand, solar PV system with battery storage can enable business to maximize their energy independence and reduce peak power demand; For business without solar PV system, battery storage can enable business to store energy from the grid at off peak price and use at peak time.
3. 336V 50Ah 105S1P Farm solar system battery Specification(@Battery initial Temp25±5℃)
| No. | Item | General Parameter | Remark |
| 1.1 | Description |
336v high voltage lithium li ion battery module 50Ah for farm solar system |
|
| 1.2 | Cell Type | high density 50Ah LiFePO4 battery cell | |
| 1.3 | Typical Capacity | 50Ah | |
| 1.4 | Typical Voltage | 336V | |
| 1.5 | Typical power | 16.8kWh | |
| 1.6 | Communication | It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| 1.7 | Battery combination | 105S1P | |
| 1.8 | Charging voltage | 378V | |
| 1.9 | End voltage | 262.5~310V | |
| 2.0 | Standard charge current | 10A | |
| 2.1 | Depth of discharge | 90% | |
| 2.2 | Max. continuous charge current | 25A | |
| 2.3 | Standard discharge current | 10A | |
| 2.4 | Max. continuous discharge current | 50A | |
| 2.5 | Cycle life | ＞2000 times | |
| 2.6 | Weight | 250kgs | |
| 2.7 | Dimension | 600*505*1300mm or customized | |
| 2.8 | Operation Temperature Range | Charge 0~45℃, Discharge -20~55℃ | |
| 2.9 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH | |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | |||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
|||
| 3.0 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
||
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
4.PAC Battery Advantages:
We are reliable and professional rechargeable battery manufacturer. We have R&D team.
*Abundant products
Professional manufacturer of li-ion, Li-polymer, Lifepo4 rechargeable batteries. Also battery packs, portable electric powers, other accessories consumer and industrial applications.
*Best service
1.Provide OEM service, customized design is available.
2.Service on time, response your email within 24 hours.
3.Delivery on time.
4.Trial order or sample order is available.
24 hours customer service, waiting for your inquiry!
5. Case Structure of High Voltage Battery Module
| No. | Description | Silk-screen Remark | |
| 1 | connector | INPUT P+ | Output terminal |
| 2 | connector | INPUT P- | Output terminal |
| 3 | LCD screen | LCD | |
| 4 | CAN port | CAN | |
| 5 | connector | OUTPUT P+ | |
| 6 | switch | ON/OFF | |
| 7 | connector | OUTPUT P- | Set the address |
| 8 | Handle | ||
| 9 | Bracket | ||
6. Rechargeable Lithium ion LifePO4 Battery Delivery
