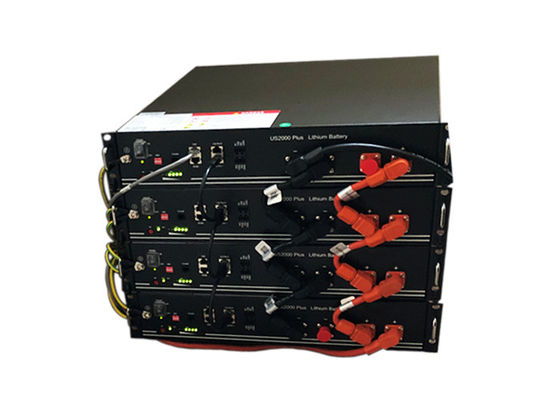

Household energy storage system lithium battery 144V 100Ah high voltage module

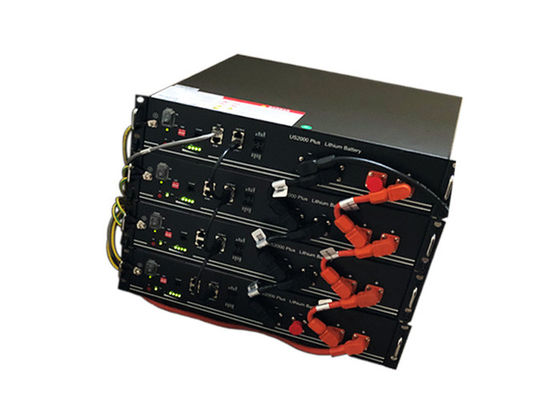

Household energy storage system lithium battery 144V 100Ah high voltage module

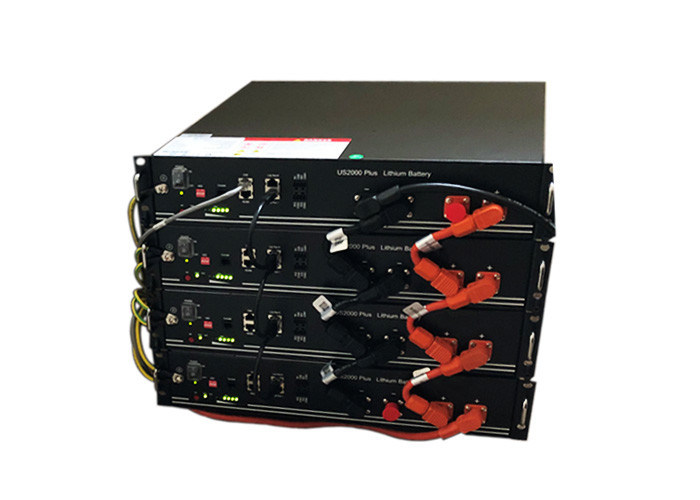

Household energy storage system lithium battery 144V 100Ah high voltage module
Household energy storage system lithium battery 144V 100Ah high voltage module

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: CE, UN38.3, MSDS, ISO9001, IEC62619 etc.
Model Number: 144V 100Ah

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 144V Battery Type: Long Lifespan LiFePO4 Battery
Typical Capacity: 100Ah System Capacity: 14.4kWh
Weight: About 230kgs Battery Application: Household ESS, Farm, Factory, Plant
Battery Protection: Smart BMS Module Communication: CANBus, RS485, RS232, Modbus
Depth Of Discharge: 90% Battery Efficiency: 96%
Design Life: More Than 10 Years Dimension: 600*505*1300mm

Household energy storage system lithium battery 144V 100Ah high voltage module


1. Key features of 144v 100Ah high voltage lithium battery

Energy Storage Systems(ESS) help to stabilize power supply of traditional power plants and
renewable energy generating facilities through frequency regulation and peak shifting by integrating batteries to them.
  • Smart Battery balanced management
  • High-precision voltage detection
  • Smart charging and discharging management the FCC capacity automatic learning
  • High-precision current detection
  • 6-channel battery temperature detection channel
  • Hardware and software over-voltage, low-voltage, under-voltage, over-current, high and low temperature and short circuit protection
  • Compatible the RS232, RS485, CAN, Bluetooth, SNMP and Ethernet etc
  • Module size to meet the requirements of standard rack, easy to install



2. Application of 14.4kWh household ESS battery
Off grid power supply for places with lack of electricity or unstable utility, or remote area without access to AC electricity.

  • Backup power supply for hospital, bank, school, church, temple, etc
  • Power supply for business activity
  • UPS for typical application required uninterrupted power supply
  • Centralized power supply for village, community, islander, small tourist area, etc

Household energy storage system lithium battery 144V 100Ah high voltage module 0

3. 144V 100Ah 45S2P Farm solar system battery Specification(@Battery initial Temp25±5)

No. Item General Parameter Remark
1.1 Description

Household energy storage system lithium battery 144V 100Ah high voltage module


1.2 Cell Type Safe 50Ah LiFePO4 battery cell
1.3 Typical Capacity 100Ah
1.4 Typical Voltage 144V
1.5 Typical power 14.4kWh
1.6 Communication It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.

1.7 Battery combination 45S2P
1.8 Charging voltage 162V
1.9 End voltage 112.5~126V
2.0 Standard charge current 20A
2.1 Depth of discharge 90%
2.2 Max. continuous charge current 50A
2.3 Standard discharge current 20A
2.4 Max. continuous discharge current 100A
2.5 Cycle life >2000 times
2.6 Weight 220kgs
2.7 Dimension 600*505*1300mm or customized
2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃
2.9 Storage Temperature & Humidity Range Less than 1 month:-20℃~45℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:

15℃~35℃,45%RH~75%RH

3.0

Long time storage:

If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!


4. Features of household 144V high voltage battery

  • Battery in modular design, capacity optional, easy installation and operation
  • Patent lithium BESS Technology with high Quality Components
  • Safe and family friendly
  • Long life span and worry free
  • Remote and mobile monitoring
  • Anti-load capacity, high load capacity, can drive all the loads, in addition to drive all kinds of resistance load, but also load various types of inductive type devices, such as motors, air conditioners, electric drills, fluorescent lamps, gas lamps, etc.;
  • Perfect protection: low pressure, high pressure, high temperature, short circuit, overload, etc.



5. Case Structure of High Voltage Battery Module

Household energy storage system lithium battery 144V 100Ah high voltage module 1

No. Description Silk-screen Remark
1 connector INPUT P+ Output terminal
2 connector INPUT P- Output terminal
3 LCD screen LCD
4 CAN port CAN
5 connector OUTPUT P+
6 switch ON/OFF
7 connector OUTPUT P- Set the address
8 Handle
9 Bracket


6. Delivery of high voltage 144V ESS lithium battery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Household energy storage system lithium battery 144V 100Ah high voltage module 2
7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
