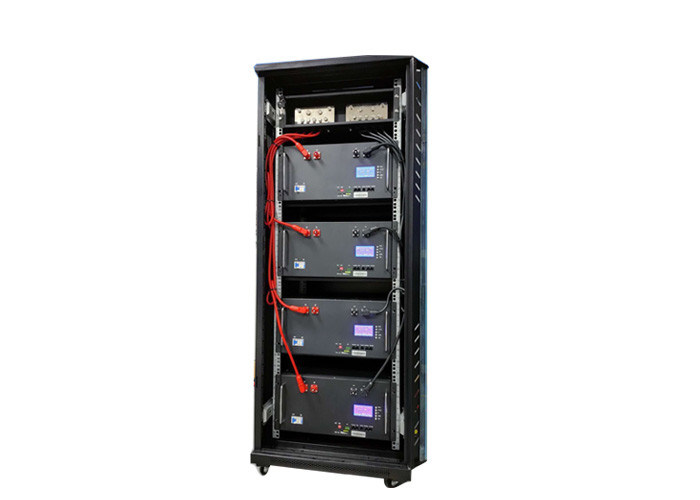

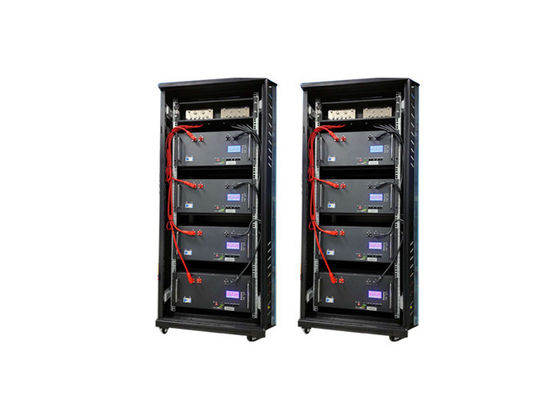

0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery

0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery

  • 0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery
  • 0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery
0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: UL, CE
Model Number: 48V 600Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 48V Typical Capacity: 600Ah
Weight: About 400kgs Battery Application: Energy Storage System For School
Battery Energy: 200kwh OEM/ODM: Acceptable
Working Temperature: -20℃~55℃ Battery Protection: CAN, RS485, RS232
High Light:

30KWh High Voltage Lithium Battery


RS232 High Voltage Lithium Battery


600Ah Rechargeable Lithium Polymer Battery

High Power Solar System 48V 600Ah 30KWh for Industrial Use
1. Description of High Power Solar System 48V 600Ah 30KWh
For commercial buildings such as schools, factories and petrol stations that require higher energy demand, solar PV system with battery storage can ensure business to maximize their energy independence and reduce peak power demand; For business without solar PV system, battery storage can ensure business to store energy from the grid at off peak price and use at peak time. This large battery system can provide power up to 200kw and high voltage of 460v.

2. Specification of 460V 435Ah high voltage battery(@Battery initial Temp25±5℃)

NO Items Description
Normal Specification
1 Nominal Voltage 48V (LFP-144S)
2 Normal Capacity 600Ah
3 Internal Resistance ≤50mΩ @1kHz AC
4 Communication protocol It has CANBus and SNMP standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.
Standard Charge
5 Battery operation temperature range @charging 0~45℃
6 Normal charge voltage 525.6V
7 Allowed MAX charge current 0.5C @Battery initial Temp 25±5℃
8 Recommended charge current ≤144A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 37.5~57V
11 Allowed discharge current 1C
12 Pulse discharge current 500A withstand 3s
13 Discharge cut-off voltage 37.5V
Mechanical Characteristics
14 Weight About: 400Kg
15 Storage Temperature & Humidity Range Short: within one month -20~+ 60℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
16 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;

3. Features of High Power Solar System 48V 600Ah

  • Smart Battery balanced management
  • High-precision voltage detection
  • Smart charging and discharging management the FCC capacity automatic learning
  • High-precision current detection
  • 5-channel battery temperature detection channel
  • Hardware and software over-voltage, low-voltage, under-voltage, over-current, high and low temperature and short circuit protection
  • Compatible the RS232, RS485, CAN, Bluetooth, SNMP and Ethernet etc
  • Module size to meet the requirements of standard rack, easy to install

4. Installation Precautions of High Power Solar System 48V 600Ah
(1) Prior to installation, unpacking to check the quantity of the parts and battery appearance.
(2) Install the hanger and handle and measure the battery voltage with a multimeter. The general factory voltage of the battery is 97V-99V.
(3) Prior to wiring, check the anode and cathode of the battery and the anode and cathode terminals shall not be connected reversely.
(4) During battery connection, please wear the protective gloves. When using such metal tools as torque wrench, please perform insulating packaging for them and two end of the metal tools such as torque wrench shall not contact the positive and negative terminals of the battery at the same time to avoid battery short-circuit.
(5) Before the battery is connected with the externally connected equipment, make the equipment in a disconnected state, check whether the connecting polarity of the battery and total voltage are correct, connect the battery anode with the equipment anode and battery cathode with the equipment cathode and fix the connecting line.
(6) During handling and placement, the battery must be handled gently. No dropping or impacting. The battery shall not be thrown or beaten to avoid damaging the battery or resulting in potential safety hazard.
(7) Do not touch the surface of the battery box with the sharp part of the tool to scratch or damage the battery box.
(8) Do not disassemble the battery box without authorization.
(9) Do not put any article made of the metal conductive material together with the battery or assemble it into the battery box.
0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery 0
5. Delivery of 200kwh 460V large lithium battery

• By Sea with Door to Door Service

0.5C RS232 48V 600Ah 30KWh High Voltage Lithium Battery 1
6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
