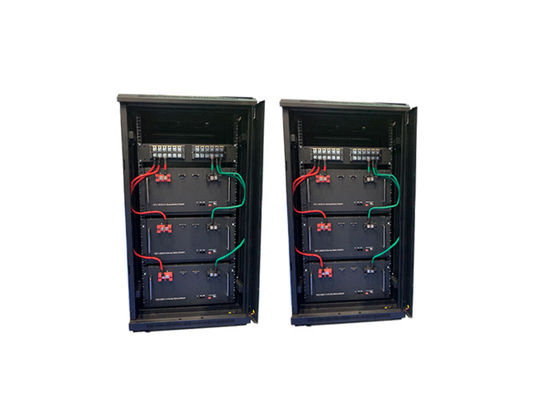

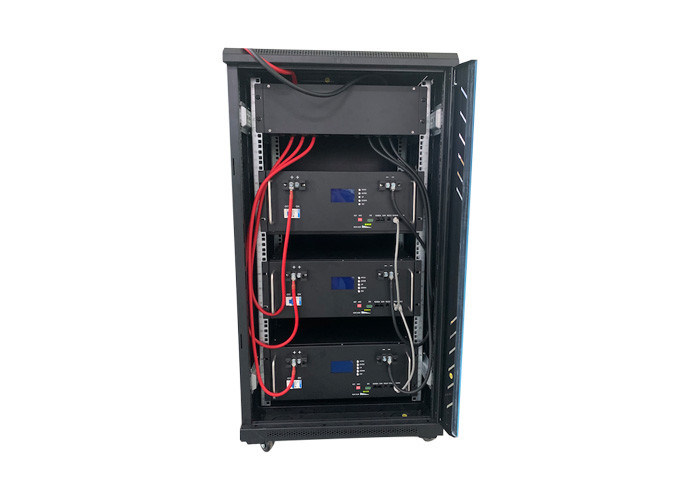

LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V

LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V

LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V
LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V
LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ROHS, UN38.3, MSDS etc
Model Number: Solar Power Storage 48V
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Voltage: 48V-400V Battery Cell Type: LiFePO4 Long Cycle Life Battery Pack
Typical Capacity: 500Ah Battery Application: Solar Power Storage
Battery Protection: Smart BMS Protocol: RS232, RS485, CAN
Second Protection: Air Switch Dimension: Customized
High Light:

RS485 Solar Power Storage Battery

,

500Ah Solar Power Storage Battery

,

48V 400V LiFePO4 Battery Pack



Solar Power Storage 48V 400V LiFePO4 Long Cycle Life Battery Pack

We can make voltage 48V-400V, 50Ah-1000Ah, use long cycle life 6000 times LiFePO4 battery cell.




2. Application of Solar Battery Pack 48V 500Ah

The application of 48v 500Ah battery with IO is very wide, such as home solar energy storage, telecom base station, computer server center, business base center, 4G/5G base station etc.

LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V 0



3. Solar Power Storage 48V 400V Specification(@Battery initial Temp25±5℃)

Lithium ion phosphate battery

pack

Combination method  5pcs 48V 100Ah
Minimal capacity(0.5C) 500Ah
Nominal voltage 48V
Max. charge voltage 58.4V
Discharge cut-off voltage 40V
Max Charge current 50A
Max Working current 100A
Standard charge current 50A
Standard discharge current 100A
Pack Impedance standard ≤100mW
Weight (Approx.) ≈300Kg
Max. dimension(L×W×H)(mm) ≤ 1200*680*1350mm



Operating temperature

Charge temperature 0℃~45℃
Discharge temperature -20℃~55℃


5. 48V 10Ah 1U LiFePO4 Battery for Solar Energy, Communication, UPS, Network Power:

> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage

> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters

> Electric Golf Car > Electric vehicles > Electric motorcycles

> Electric forklifts > Electric boats, etc...




6. Package of Solar Battery Pack 48V 500Ah
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.

LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V 1
LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V 2
LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V 3


7. 48V 50Ah telecom lithium batteryDelivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

LiFePO4 RS485 500Ah Solar Power Storage Battery 48V 400V 4


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
