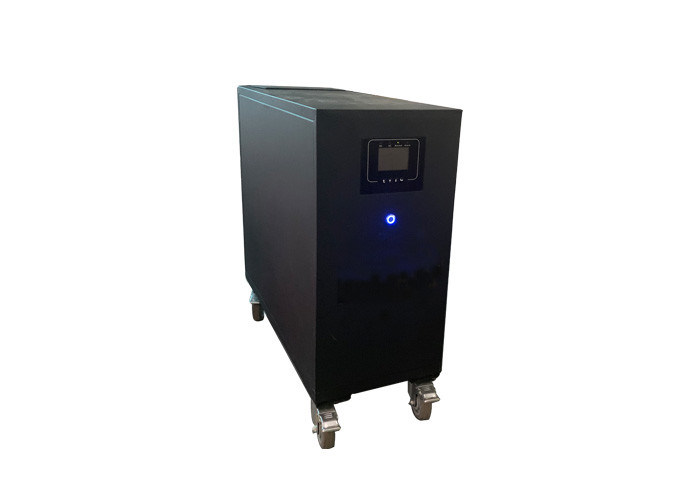

ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System

ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System

  • ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System
  • ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System
  • ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System
  • ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System
ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3, ISO9001, ISO14001
Model Number: 5KWH, 10KWH, 20KWH
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Energy: 5KWH, 10KWH, 20KWH Featurue: 3-phase All-in-one Solar ESS
Weight: 400kgs Feed Into Grid: Yes
Solar Charge Power: 75-140V 16kW AC Charge: 6000w
AC Output: 12KVA Dimension: 930*750*1770mm
Lifespan: 10 Years Monitor: LCD Display
Warranty: 2 Years
High Light:

20KWH Home Energy Storage System

,

12KVA Home Energy Storage System

,

ESS 3 Phase Lithium Battery

All-in-one Home Battery Energy Storage System 5KWH, 10KWH, 20KWH
we have 5KWH, 10KWH, 15KWH and 20KWH for option. Inverter can be 3KW-8KW.
1. Features of All-in-one Home Battery Energy Storage System
Combined with inverter and battery pack, it is very easy for installation.
1. The commercial Solar Generator with CPU intelligent control technology, high-performance security;
2. Pure sine wave output, the output frequency are 50HZ, coincide with the mains, it also can be applied to any (not greater than the present maximum output power) loads, including motors, compressors, relays, fluorescent lamps, laser printers, impact drill and some not analog sine wave and modified sine wave inverter drive electrical equipment;
3. Small noise in this commercial solar generator, there is no noise in addition to high-temperature radiator fan running small noise.
* More specifics and detailed product features or other custom feature, pls contact with us, those specifications are subject to communication.


2. Specification of All-in-one Home Solar Energy Storage Battery

Model Name MG3210K Distributed On-off Micro Grid System
Continuous Rated Power 10KW
AC Parameters
Rated Alternating Voltage Grid Voltage 400VAC
Inverter Voltage 400VAC
Rated AC Frequency 50Hz
Total Harmonic Distortion Grid Current <4%
Inverter Voltage 2%
On/off Grid Switching Time < 20ms
Maximum Inverter Efficency 93.80%
≥92%
Referenced Certification Standard CE,VDE 0126-1-1
Output Wave Pure Sine Wave
DC Parameters
Recommended Each line PV Input Power 4000W
PV Input 3 lines
Each PV Line Panels Start-up Maximum Voltage 145VDC(under definite lowest temperature condition)
MPPT Voltage Range 70~120VDC
PV Maximum Output Current 240A
Charger Maximum Efficiency 97.30%
Battery Voltage Rated Value 52VDC
Working Range 48~57VDC
System Parameters
Stored Capacity ≥30KWh
External Communications RS485(RS232/USB/Internet Optional)
Working Environment Temperature 0oC~45oC
Working Environment Humidity 10%~90%
Altitude <2000m
IP Grade IP54
Dimension Battery Box 1130mm×800mm×600mm
Inverter Box 1130mm×800mm×600mm
Weight Battery Box 240kg
Inverter Box 210kg



3. Application of  All-in-one Home Solar Energy Storage Battery

  • Off grid power supply for places with lack of electricity or unstable utility, or remote area without access to AC electricity.
  • Backup power supply for hospital, bank, school, church, temple, etc
  • Power supply for business activity
  • UPS for typical application required uninterrupted power supply
  • Centralized power supply for village, community, islander, small tourist area, etc


4. How the 10kw Three Phase Solar System works?
Solar Panel:
Installed in an array on your roof, solar panels convert sunlight into electricity.
ESS:
Built-in Pure Sine Inverter
Built-in MPPT Solar Controller
Built-in Lithium Battery
Built-in BMS(Battery Management System)
ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System 0
5. Off Grid Mode of 10kw ESS
When the grid is disconnected or breakdown, our system will works in Off Grid mode. Under this mode, the
unit will transfer solar power or electricity stored in the battery to AC, to power up all the loads.
ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System 1
6. Delivery of 10kW Energy Storage Lithium Battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

ESS 3 Phase 12KVA 5KWH 20KWH Home Energy Storage System 2


7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
