| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | ISO9001, ISO14001, UL1642, MSDS, UN38.3 |
| Model Number: | 48v 600Ah |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, 48v battery rack wooden case, pallet. |
| Delivery Time: | 2 weeks for samples; 4~5weeks for mass production |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3Gwh per year |
| Typical Voltage: | 48V | Typical Capacity: | 600Ah |
|---|---|---|---|
| Type: | Rack Type | Weight: | About 300kgs |
| Battery Application: | Telecom Base Station, Home Energy Storage | Standard Discharge Current: | 0.2C |
| Communication: | CANBus, RS485, RS232, Modbus | Max. Discharge: | 1C |
| High Light: | 600Ah 48V Telecom Battery Rack,28.8kWh 48V Telecom Battery Rack,15S12P Telecom Battery Systems |
||

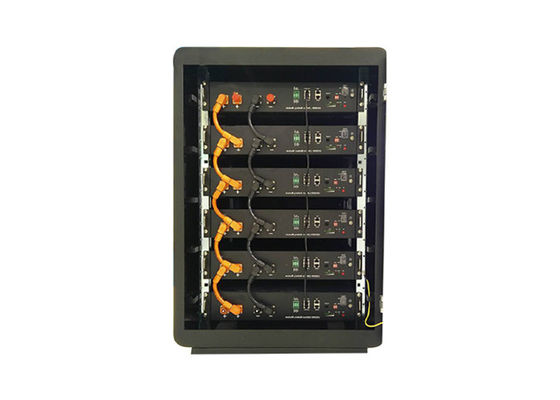

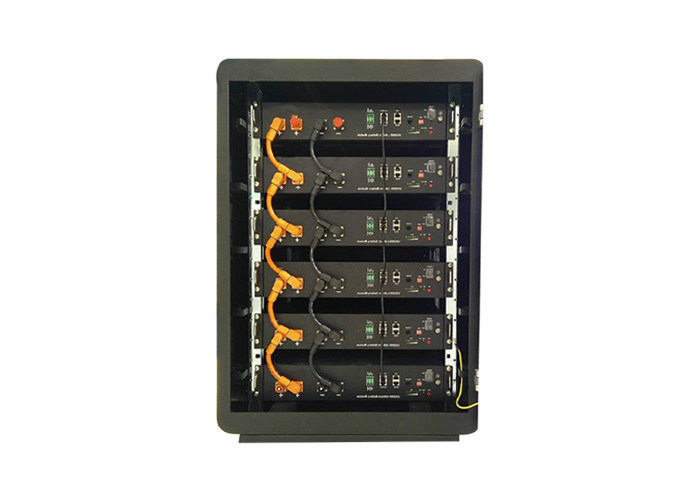

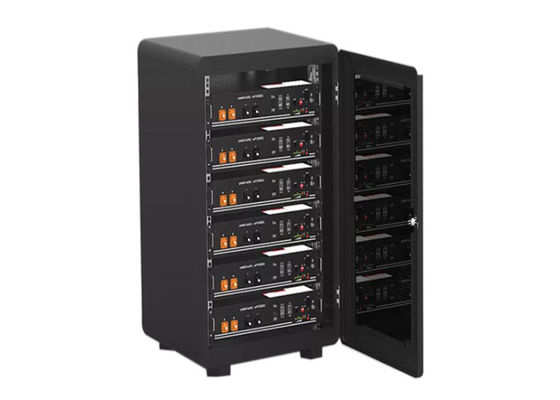

48V telecom battery rack 600Ah
1. Telecom battery rack 48v 600Ah Overview
PAC 48V series Lithium Iron Phosphate Battery is storage battery to provide reliable backup power for access network equipment, remote switch, mobile communications, transmission equipment and other systems.
Multiple storage batteries can be integrated as Battery System in parallel connections with intelligent centralized monitoring and installed in standardized cabinet. It scales up and realizes flexible and effective power solutions for telecommunication and energy storage as well.
2. Features of 48v telecom rack battery
3. Specification of 48v 600Ah Telecom batteries(@Battery initial Temp25±5℃)
| No. | Item | General Parameter | Remark |
| 1.1 | Description | 48V 600Ah telecom battery rack | |
| 1.2 | Cell Type | LiFePO4 prismatic battery 50Ah | |
| 1.3 | Typical Capacity | 600Ah | |
| 1.4 | Typical Voltage | 48V | |
| 1.5 | Typical power | 28.8kWh | |
| 1.6 | Communication | It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
| 1.7 | Battery combination | 15S12P | |
| 1.8 | Charging voltage | 54V | |
| 1.9 | End voltage | 42V | |
| 2.0 | Standard charge current | 120A | |
| 2.1 | Internal Impedance | ≤200mΩ | |
| 2.2 | Max. continuous charge current | 600A | |
| 2.3 | Standard discharge current | 120A | |
| 2.4 | Max. continuous discharge current | 600A | |
| 2.5 | Cycle life | ＞4000 times | |
| 2.6 | Weight | 300kgs | |
| 2.7 | Dimension | customized | |
| 2.8 | Operation Temperature Range | Charge 0~45℃, Discharge -20~55℃ | |
| 2.9 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH | |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | |||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
|||
| 3.0 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
||
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
4. 48kwh LiFePO4 battery system Application
5. BMS specification of LiFePO4 battery 48v 600Ah
The BMS is designed for 15/16 series lithium battery.
The BMS have all functions which are:
6. Working Environment of LiFePO4 backup batteries
* This product should be used in a dry, clean and ventilated environment;
* Avoid using under the environment of exposure, heat, rain, damp, dust, and fog;
* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;
* Applicable to external environment temperature -5℃~45℃;
* Air relative humidity is not more than 85% (25℃± 5℃);
7. Telecom Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
