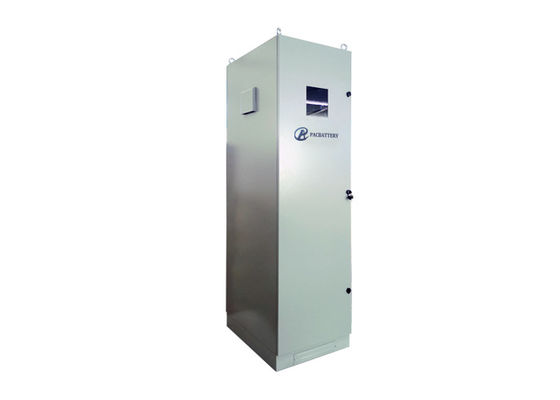

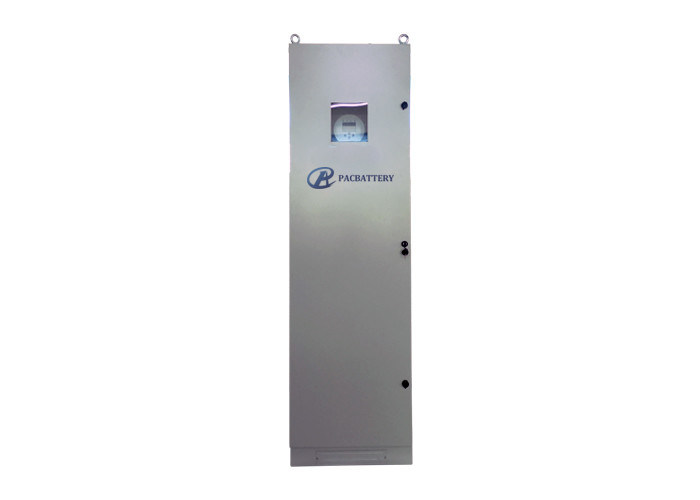

No Cobalt Battery Storage Cabinet 38.4kWh With 8kW Inverter

No Cobalt Battery Storage Cabinet 38.4kWh With 8kW Inverter

No Cobalt Battery Storage Cabinet 38.4kWh With 8kW Inverter
No Cobalt Battery Storage Cabinet 38.4kWh With 8kW Inverter
No Cobalt Battery Storage Cabinet 38.4kWh With 8kW Inverter
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: UL1973/2480, ISO9001, ISO14001
Model Number: all-in-one 8k
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Battery Energy: 38.4KwH Featurue: All-in-one System With Batteries And Inverter
Weight: 600kgs Feed Into Grid: Yes
Battery Life: More Than 6000 Cycles Application: On-grid Or Off-grid System
Dimension: 2060*600*800mm Inverter Power: 8kw
High Light:

No Cobalt Battery Storage Cabinet


8kW Inverter Battery Storage Cabinet


38.4kWh Ups Battery Cabinet

All-in-one battery cabinet 38.4kWh with 8kW inverter

1. Features of 8kva All-in-one battery system

  • Auto restart while AC is recovering
  • Outdoor rated enclosure can be free-standing, or pad-mounted
  • No cobalt, thermal regulation, cooling, or risk of fire
  • Extended operating temperature
  • Programmable supply priority for battery or grid
  • Programmable multiple operation modes: On grid, off grid and UPS
  • Configurable AC/Solar/Generator Charger priority by LCD setting
  • With limit function, prevent excess power overflow to the grid
  • Supporting WIFI monitoring and build-in 2 strings of MPPT trackers
    Maintenance free, no memory effect

2. Specification of 38.4kWh 8KW all in one battery cabinet

All-in-one Battery System 8000VA 38.4kWh

23.62” W x 81.42”H (w/feet) x 31.50” D /

60 cm W x 206.8 cm H x 80 cm D

Weight 1323 lbs. (600 kg.)
Enclosure Rating NEMA 3R Outdoor Rated
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Charging Temperature (batteries) 32°F to 120°F (0 °C to 49°C)
Mounting Free-standing
Enclosure Warranty Period 2 years
Application On or Off-Grid
Grid Type Split phase, 2/3 phase, Single Phase
Output Frequency (selectable) 60 Hz or 50 Hz
Output Voltage 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
Rated AC Output and UPS Power (W) 8000W
Max AC Output Power(W) 8800W
Peak Power(off grid) 2 times of rated power, 10 S
AC Output Rated Current(A) 33.4A/35A
Max. AC Current(A) 36.7A/38.5A
Max Continuous AC Passthrough(A) 50A
Current Harmonic Distortion THD<3%(Linear loading<1.5%)
MPPT Efficiency 99.90%
Protection PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage Protection
Grid Regulation UL1741,IEEE1547,RULE21,VDE 0126,AS4777,NRS2017,G98,G99
Safety Regulation IEC62109-1, IEC62109-2
EMC EN61000-6-1, EN61000-6-3, FCC 15 class B
Solar PV - DC Coupled
No. of Strings per MPPT Tracker 2+2
Max Connected PV Power 10400W
Min PV Array Starting Voltage 150 VDC
PV Input Voltage (V) 370V(100V~500V)
MPPT Voltage Range 125 – 425 VDC
PV Input Current (A) 22A+22A
Lithium Battery 38.4 kWh-48V LiFePO4 battery
Rated kWh Capacity @ C/2 38.4 kWh
Usable kWh Capacity @ 80% DoD 30.72 kWh
Max Combined Output Power 20 kW DC
Max Combined Charge Current 400 ADC (limited by the inverter to 190A)
Max Combined Discharge Current 400 ADC (limited by the inverter to 190A)
Charging Temperature

32°F to 50°F (0°C to 10°C): 80A charging current

50°F to 122°F (10°C to 50°C): 200A charging current

Depth of Discharge Up to 100% DoD
Round Trip Efficiency 98%
Cycle Life 6,000+ cycles (@ 80% DoD)


3. Electricity Saving of 38.4kWh battery system
In the daytime using the electricity stored in the night, energy saving. Charge the power storage system in night time of less electricity consumption, and in the daytime use the electricity that stored in the night, contribute to restrain power waste. Connected to solar power generation system , it can supply power directly to household appliances , or charge the power storage system with the redundant power, to reduce the use of electricity from Grid system.

4. Reassurance
When there is a power failure, the stored electricity can be used as backup power, the product has the function of UPS. When there is a power failure, the product act as an emergency power supply for LCD TV and LED lighting, and other important electric application, to ensure continuous output power.

5. 8kva Energy Storage system Remote monitoring support
The battery system utilization can be showed on LCD screen, automatic management and alarm. Or you can use portable terminal and realize remote monitor through the internet, safe use. PAC household power generation and storage system is able to set different working mode according to household lifestyle.


6. Delivery of 8kW all in one energy storage system

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

No Cobalt Battery Storage Cabinet 38.4kWh With 8kW Inverter 0


7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
