Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/ODM |
Certification: | IEC62133, UN38.3, MSDS, UL |
Model Number: | 26650-3300mAh |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | White inner box, standard export carton |
Delivery Time: | 3-20 days for samples, 15-35 days for mass production |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100,000pcs/day |
Features: | Deep Cycle Battery 12V | Type: | Lithium Iron Phosphate Battery |
---|---|---|---|
Cell Model: | 26650 | Nominal Voltage: | 12.8V |
Nominal Capacity: | 40Ah | Items: | 12V 40Ah LiFePO4 Lithium Iron Phosphate Battery Packs For Solar Product |
Application: | Solar Product | Certificate: | IEC62133, UN38.3, MSDS, UL |
Cycle: | 2000 Times | Oem/odm: | Negotiable |
High Light: | long life solar battery,deep cycle rechargeable battery |

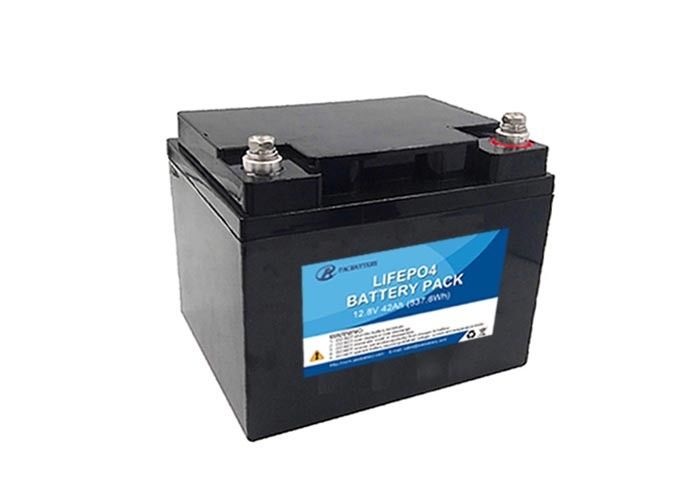

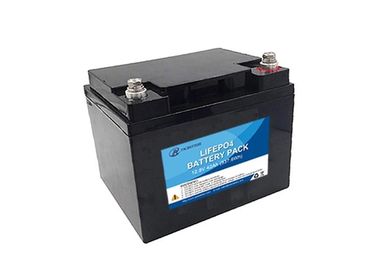

12V 40Ah LiFePO4 lithium iron phosphate battery packs for solar product, made of cylindrical 26650 cells, with the features of long life cycle, high safety, light weight, standard size.
Advantage of LiFePO4 lithium iron phosphate battery packs:
* High energy density
* High voltage
* Pollution-free
* Long cycle life
* No memory effect
* Minimal self-discharge
* High rate charge/discharge
Technical information for 12V 40Ah LiFePO4 lithium iron phosphate battery packs:
No.
|
Item
|
General Parameter
|
1.1
|
Description
|
12V 40Ah LiFePO4 lithium iron phosphate battery packs
|
1.2
|
Cell Model
|
26650-3300mAh
|
1.3
|
Typical Capacity
|
40Ah |
1.4
|
Typical Voltage
|
12.8V
|
1.5
|
End of Charge Voltage
|
15.6V
|
1.6
|
Charge Current
|
0.2C
|
1.7
|
Charging time
|
5-6 Hours
|
1.8
|
End discharge Voltage
|
8.0V
|
1.9
|
Max continuous charge current
|
80A
|
2
|
Maximum Peak Discharging Current
|
200A (less than 3S)
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
2.2
|
Over-Current Discharge Protection
|
80A
|
2.3
|
Short circuit protection
|
With protection
|
2.4
|
Dimension
|
80*145*325mm |
2.5
|
Weight
|
5.5kgs
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Note:
If above specification can't satisfy you, please contact us for your detailed requirement.
We could make customized 12V 40Ah LiFePO4 lithium iron phosphate battery packs for you based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..
Application for 12V 40Ah LiFePO4 lithium iron phosphate battery packs:
UPS
Solar &Wind power system
Golf Cart
Electric vehicle , E-bike, E-rickshaw
