| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UN38.3, ISO9001, ISO14001 |
| Model Number: | 6kva 8kva solar ESS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Battery Energy: | 15kwh | Featurue: | Split Phase Solar Energy System |
|---|---|---|---|
| Weight: | 420kgs | Feed Into Grid: | Yes |
| Solar Charge Power: | 4200w | AC Charge: | 4000w |
| Dimension: | 930*750*1770mm | AC Output: | 8kw |
| High Light: | hybrid lithium battery,energy storage system lithium ion battery |
||

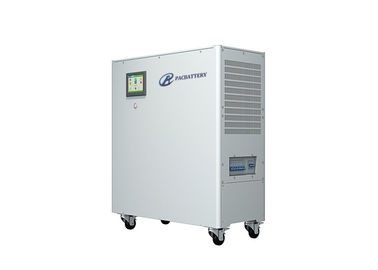

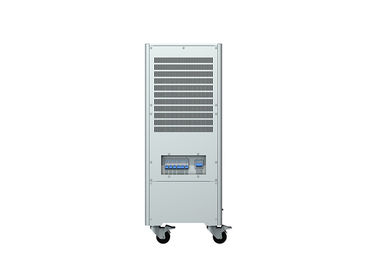

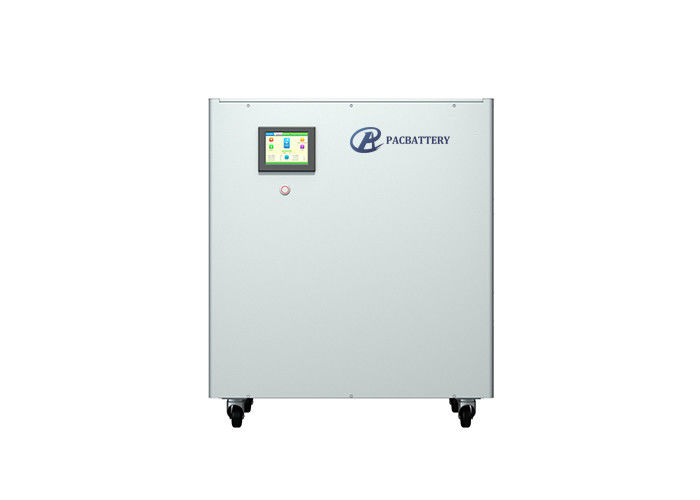

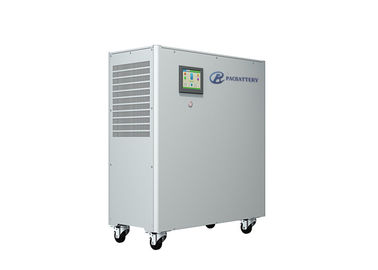

15kwh li ion Energy Storage lithium battery split phase on / off grid solar ESS 6kva 8kva
1. Features of 8kva split phase ESS
2. Specification of 15kwh li ion energy storage battery
| 15kwh li ion Energy Storage lithium battery split phase on / off grid solar ESS 6kva 8kva | ||
| Continuous Rated Output Power | 8kva | |
| AC Parameters | Rated Output Power | 8000va |
| Rated Output voltage(Frequency) | split phase 2×120V(60Hz)/240V(60Hz) | |
| AC Input Voltage Range | 216~264V/59.3~60.2Hz | |
| Max. AC Charging Current | 32A | |
| Max. AC Charging Power | 4000w | |
| PV Input | PV Input Power Per Line | 4200w |
| Number of MPPT | 2 | |
| Maximum VOC of each line | 145v | |
| MPPT Voltage Range | 70~140Vdc | |
| PV Maximum Output Current | 160A | |
| Parameters | Grid-tied Current | <4% |
| Off-grid Voltage | <2% | |
| Max AC Inverter efficiency | 93.8% | |
| Max PV charge efficiency | 97.3% | |
| On/Off grid switching time | ≤16.7ms | |
| Protectioins | OVP/UVP/OCP/OTP/Short | |
| General | Operation ambient temperature | 0℃~45℃ |
| Operation ambient humidity | 10%~90% | |
| Altitude | 2000m | |
| IP rate | IP54 | |
| Dimensions(W*D*H) | 930*750*1770mm | |
| Gross Weight | 420kgs | |
3. Electricity Saving of 15kwh li ion battery
In the daytime using the electricity stored in the night, energy saving. Charge the power storage system in night time of less electricity consumption, and in the daytime use the electricity that stored in the night, contribute to restrain power waste. Connected to solar power generation system , it can supply power directly to household appliances , or charge the power storage system with the redundant power, to reduce the use of electricity from Grid system.
4. Reassurance
When there is a power failure, the stored electricity can be used as backup power, the product has the function of UPS. When there is a power failure, the product act as an emergency power supply for LCD TV and LED lighting, and other important electric application, to ensure continuous output power.
5. 8kva Energy Storage system Remote monitoring support
The battery system utilization can be showed on LCD screen, automatic management and alarm. Or you can use portable terminal and realize remote monitor through the internet, safe use. PAC household power generation and storage system is able to set different working mode according to household lifestyle.
6. Delivery of 15kwh ESS lithium battery
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
