|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||CE, ROHS, UN38.3, MSDS etc|
|Model Number:||15S2P 48v 100Ah|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Nominal Energy:||4800wh||Battery Cell:||Softpack Cell 3.2V 100Ah|
|Typical Capacity:||100Ah||Battery Application:||Solar ESS, Wind Energy Storage System|
|Battery Protection:||Smart BMS With RS485 Communication||Protocol:||RS485, RS232, CANBus|
|Second Protection:||Air Switch||Dimension:||442*420*176mm|
long life solar battery,
solar lithium battery pack

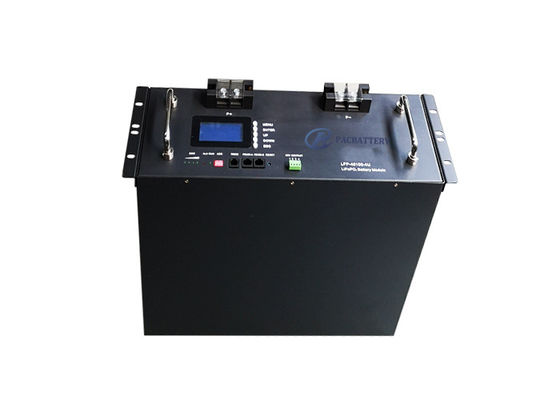

15S2P LiFePO4 solar battery 48v 100Ah with softpack cell for ESS
We can provide One-Stop Solution globally in the field of renewable energy, from cell, BMS/PCM to battery pack assembling.
1. Instruction of 15S2P LiFePO4 solar battery 48v 100Ah
The 48v LiFePO4 solar battery 100Ah is using high energy density softpack Lithium iron phosphate battery cell with capacity 50Ah@3.2Vdc, 15S2P assembled. The battery pack dimension is 442*420*176mm and this size aslo can be customized. It is 4U size, smaller than standard 48v 100Ah battery. Built with smart BMS with interface of RS485 and RS232, the customer can monitor not only the single battery module, but also the battery pack status in real time. We can also make the battery pack with other protocols, such as IO, SMBUS, CANBUS, I2C etc. Please contact us if you have any inquiries. We work at 24/7.
2. Application of 48v 100Ah ESS LiFePO4 battery
3. Specification of Solar battery 48V 100Ah(@Battery initial Temp25±5℃)
|1||Nominal Voltage||48V (LFP-15S)|
|3||Internal Resistance||≤45mΩ @1kHz AC|
|4||Battery operation temperature range @charging||0~45℃|
|5||Normal charge voltage||54.75±0.3V|
|6||Recommended float charge voltage(for Standby use)||51.75±0.3V|
|7||Allowed MAX charge current||100A@Battery initial Temp 25±5℃|
|8||Recommended charge current||≤50A|
|9||Battery operation temperature range @discharging||-20~60℃|
|10||Output voltage range||37.5~54.75V|
|11||Allowed discharge current||100A|
|12||Pulse discharge current||200A withstand 3s|
|13||Discharge cut-off voltage||37.5V|
|16||Storage Temperature & Humidity Range||Short: within one month||-20~+ 60℃, 5~75%RH|
|Long term: above one month||-10~+45℃, 5~75%RH|
|17||Self-discharge rate||Residual capacity||≤2% per month;|
|Reversible capacity||≤1%per month;|
4. Working Environment of 15S2P LiFePO4 solar battery
* This product should be used in a dry, clean and ventilated environment;
* Avoid using under the environment of exposure, heat, rain, damp, dust, and fog;
* It is prohibited to use in the environment of flammable and explosive atmosphere to guard against flames and sparks;
* Applicable to external environment temperature -5℃~45℃;
* Air relative humidity is not more than 85% (25℃± 5℃);
5. Package of 48V 100Ah Lifepo4 battery pack
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.
6. Delivery of LiFePO4 solar 48V 100Ah battery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
