Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/ODM |
Certification: | IEC62133, UN38.3, MSDS |
Model Number: | 26650 3.2V 33000mAh |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-10 days for samples, 15-20 days for mass production |
Payment Terms: | T/T |
Supply Ability: | 5,000pcs/day |
Type: | 26650 LiFePO4 Battery | Cell Model: | 26650 3.2V 3300mAh |
---|---|---|---|
Nominal Voltage: | 12.8V | Nominal Capacity: | 33Ah |
Application: | SLA Replacement, UPS | Keywords: | Rechargeable Battery 26650, Lifepo4 12V 33Ah, 12V 33Ah Lithium Iron Phosphate Battery Pack |
Cycle Life: | 2000 Times | Warranty: | 24 Months |
High Light: | lifepo4 deep cycle battery,deep cycle battery pack |

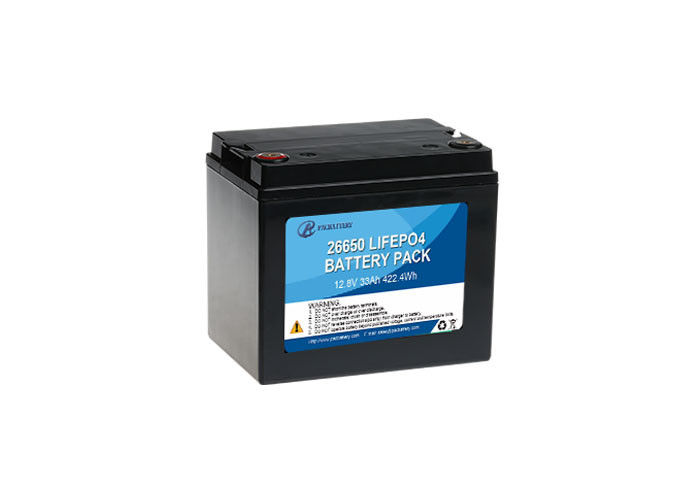

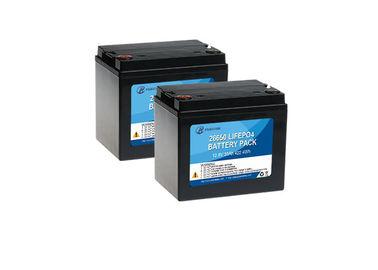

Rechargeable Battery 26650 Lifepo4 12V 33Ah Lithium Iron Phosphate Battery Pack
26650 4S10P 12.8V 33Ah LiFePO4 Battery Pack, widely use for
* Solar street light,
* UPS/ power back up,
* solar LED light,
* electric scooter.
Advantage of LiFePO4 battery, comparing to Lead acid battery:
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
Specifcations of LiFePO4 Battery Pack 2S10P 26650 6.4V 33Ah:
Electrical Characteristics | Norminal Voltage | 12.8V |
Nominal Capacity | 33Ah | |
Energy | 422.4Wh | |
Internal resistance | ≤55mΩ | |
Cycle Life | >2000 cycles | |
Months Self discharge | ≤3.5% per month at 25℃ | |
Standard Charge | Charge voltage | 14.6±0.2V |
Charge Mode( CC/CV) | At 0℃~45℃ temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A | |
Charge current | 6.6A | |
Max.Charge current | 16.5A | |
Standard Discharge | Discharge current | 6.6A |
Max.continuous current | 30A | |
Max. Pulse current | 60A (<3S) | |
Discharge cut-off voltage | 10.0V | |
Environmental | Charge Temperature | 0℃ to 45 ℃ |
Discharge Temperature | -20℃ to 60 ℃ | |
Storage Temperature | 0℃ to 45 ℃ | |
Water Dust Resistance | IP55 | |
Mechanical | Plastic Case | ABS |
Dimension (L*W*H*TH) | 195*130*156*167mm | |
Weight | Approx. 4.9KG | |
Terminal | M6 |
1. Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright flashlight.
2. Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight,
3. Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
speaker, microphone, sound equipment, audio, Digital camera, vidican.
4. Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
electric blanket.
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
