| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | UL, MSDS, UN38.3, ISO9001 |
| Model Number: | 12.8V 12Ah |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 10-15 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Cycle Life: | 2000 Cycles | Battery Type: | Lifepo4 Battery |
|---|---|---|---|
| Nominal Capacity: | 12Ah | Weight: | 1.55kgs |
| Battery Energy: | 153.6wh | Waterproof Rate: | IP56 |
| Application: | LED Lighting | Dimension: | 151*98*95mm |
| High Light: | lifepo4 deep cycle battery,lithium iron phosphate battery pack |
||
For more SLA Replacement battery, please find below our battery model list:
SLA replacement battery model list-PAC Tech.pdf

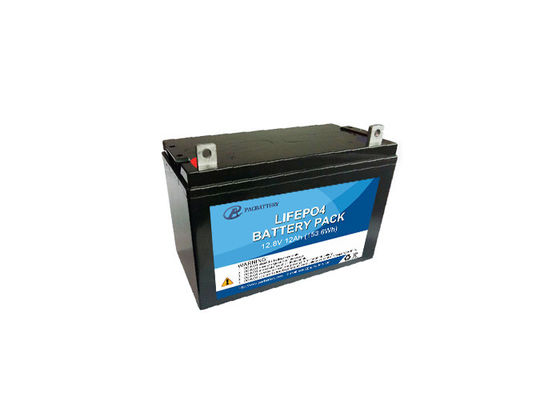

2000 cycles SLA replacement Battery 12v ifepo4 rechargeable pack 12Ah for LED lighting
1. Quick details of 12.8V 12Ah SLA replacement battery
2. Technology Advantages of 32700 LiFePO4 battery cell
3. 2000 cycles 12.8V 12Ah LiFePO4 Battery Pack Specification(@Battery initial Temp25±5℃)
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 12Ah@0.2C | |
| Energy | 153.6Wh | |
| Internal Resistance | ≤70mΩ | |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | |
| Months Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. | |
| Charger Current | 2.4A | |
| Max.Charge Current | 6A | |
| Standard Discharge | Discharge Current | 2.4A |
| Max. Continuous Current | 16A | |
| Max.Pulse Current | 30A(<3S) | |
| Disxcharge Cut-off Voltage | 10.0V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell & Method | IFR32700 N60, 4S2P |
| Case Material | ABS | |
| Dimension(L*W*H*TH) | 151*98*95*101mm | |
| Weight | Approx. 1.55kgs | |
| Terminal | F2 |
4. Applications of 12.8V 12Ah li ion battery
The energy storage battery is applicable for commercial or residential purposes:
5. Standard charge Characteristics of LiFePO4 battery Pack
The "Standard Charge" means charging with constant current 0.2C to3.65V, then charging with constant voltage 3.65V to 0.01C under 20±5℃, charging time will not more than 8h.) (Use Lithium-ion battery charger, which with an accuracy ±0.05V.)
6. Delivery of 12v LiFePO4 battery 12Ah
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
