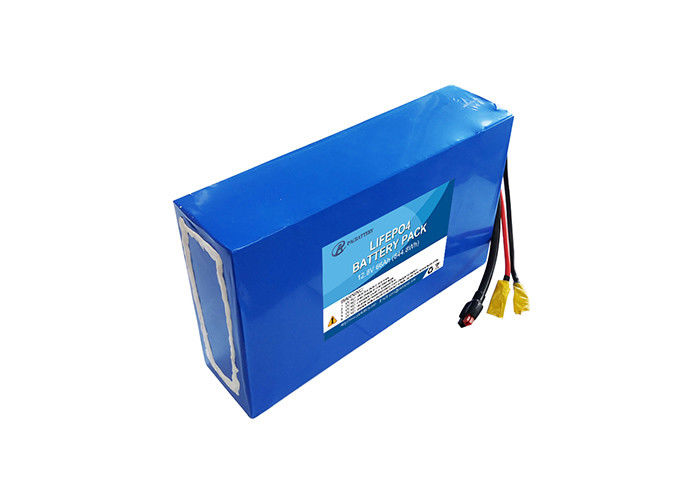

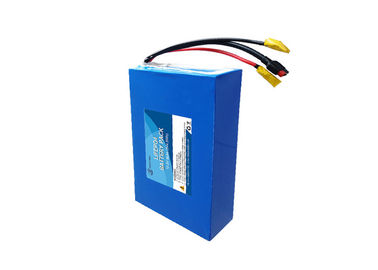

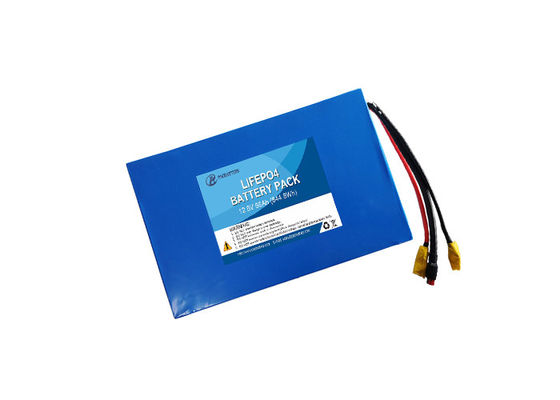

Cylindrical 32650 Cells LiFePO4 Rechargeable Battery 12v 66Ah Long Cycle Life For TV

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	PAC/ODM
Certification:	CE, UN38.3, MSDS, ROHS, etc
Model Number:	LiFePO4 battery 12v 66Ah

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	White inner box, standard export carton
Delivery Time:	3-20 days for samples, 15-35 days for mass production
Payment Terms:	T/T, Western Union
Supply Ability:	100,000pcs/day

Contact Now

Detailed Product Description

Type:	LiFePO4 Rechargeable Battery	Cell Model:	IFR32650-3.2V-6000mAh
Nominal Voltage:	12.8V	Nominal Energy:	844.8Wh
Charging Current:	30A	Application:	TV, Solar Energy, Garden Lighting
Warranty:	1 Year	Cycle:	2000 Times At 100%DOD
Cell Shape:	Cylindrical	Battery Combination:	4S11P
High Light:	lifepo4 deep cycle battery , deep cycle battery pack

Using cylindrical 32650 cells LiFePO4 rechargeable battery 12v 66Ah for TV

1. Advantages of 12 volt lithium battery 66Ah:

Green product: LiFePO4 material is no harm to enviroment and human beings, it's environment friendly and no pollution.
Long Cycle life: More than 2000 cycle times and up to 5 years serve life.
Very safe: It have the best safety and steady performance, no fire, no exploding under the condition of over-charge.
Light weight and smaller dimension: The dimension compares with other battery, about 1/2-2/3 weight of lead acid.
Great capacity and more powerful,rechargeable battery: We can install many single cells in series and in parallet and it can fully discharge.
No memory effect: It can be recharged anytime,no reduction of the capacity.

2. Description of 12v 66Ah LiFePO4 rechargeable battery:

The LiFePO4 rechargeable battery 12v 66Ah is using cylindrical lithium iron phosphate battery cell 32650 with 6000mAh capacity, 4S11P assembled and with intergrated BMS built-in. It is customized for TV system and working with DC converter. The charging connector for this battery pack is Anderson PP30A and discharging terminals is M8 type.

The energy density of 32700 LiFEPO4 battery (high safety) exceeds 170wh/kg, the completed engineering sample hit 200wh/kg now is verified the mass production process,3C charge and discharge reached 3000 times.

3. Technical information for 66Ah 12 volt rechargeable LiFePO4 battery:

NO	Items		Description
Normal Specification
1	Nominal Voltage		12.8V (LFP-4S)
2	Normal Capacity		66Ah
3	Internal Resistance		≤45mΩ @1kHz AC
Standard Charge
4	Battery operation temperature range @charging		0~45℃
5	Normal charge voltage		14.6±0.2V
6	Recommended float charge voltage(for Standby use)		14.0±0.2V
7	Allowed MAX charge current		30A@Battery initial Temp 25±5℃
8	Recommended charge current		≤33A
Standard Discharge
9	Battery operation temperature range @discharging		-20~60℃
10	Output voltage range		10.0~14.6V
11	Allowed discharge current		66A
12	Pulse discharge current		120A withstand 3s
13	Discharge cut-off voltage		10.0~10.8V
Mechanical Characteristics
14	Dimension		Length 300±2mm
			Width 200±2mm
			Height 75±2mm
15	Weight		About: 6.5±0.2Kg
Storage
16	Storage Temperature & Humidity Range	Short: within one month	-20~+ 60℃, 5~75%RH
		Long term: above one month	-10~+45℃, 5~75%RH
17	Self-discharge rate	Residual capacity	≤3% per month;
		Reversible capacity	≤1.5%per month;

Note:

If above specification can't satisfy you, please contact us for your detailed requirement.

We could make customized 12 volt lithium battery deep cycle, OEM LiFePO4 Battery based on your size, continuous discharge current, peak discharge current, battery pack housing, etc..

4. Our company advantage:

Safety is highly reliable, pass the IEC62133 test and got the CB certificate

Low local action battery ,the charge retention reached 92% after 1 year, 80% after 3 years and 75% after 6 years.

Working temperature range is from -40 degree to + 75 degree, can be operated in bad condition

Hi-Capacity battery charge/discharge reached 30C in maximum

The highly automated equipment is in the lead in China.

5. 32650 LiFePO4 rechargeable battery pack 12volt 66Ah for residential energy storage:

6. Lithium battery deep cycle cylindrical Cell 18650, 26650, 32650, 32700 Manufaturing- Work Shop:
Cylindrical 32650 Cells LiFePO4 Rechargeable Battery 12v 66Ah Long Cycle Life For TV 1
